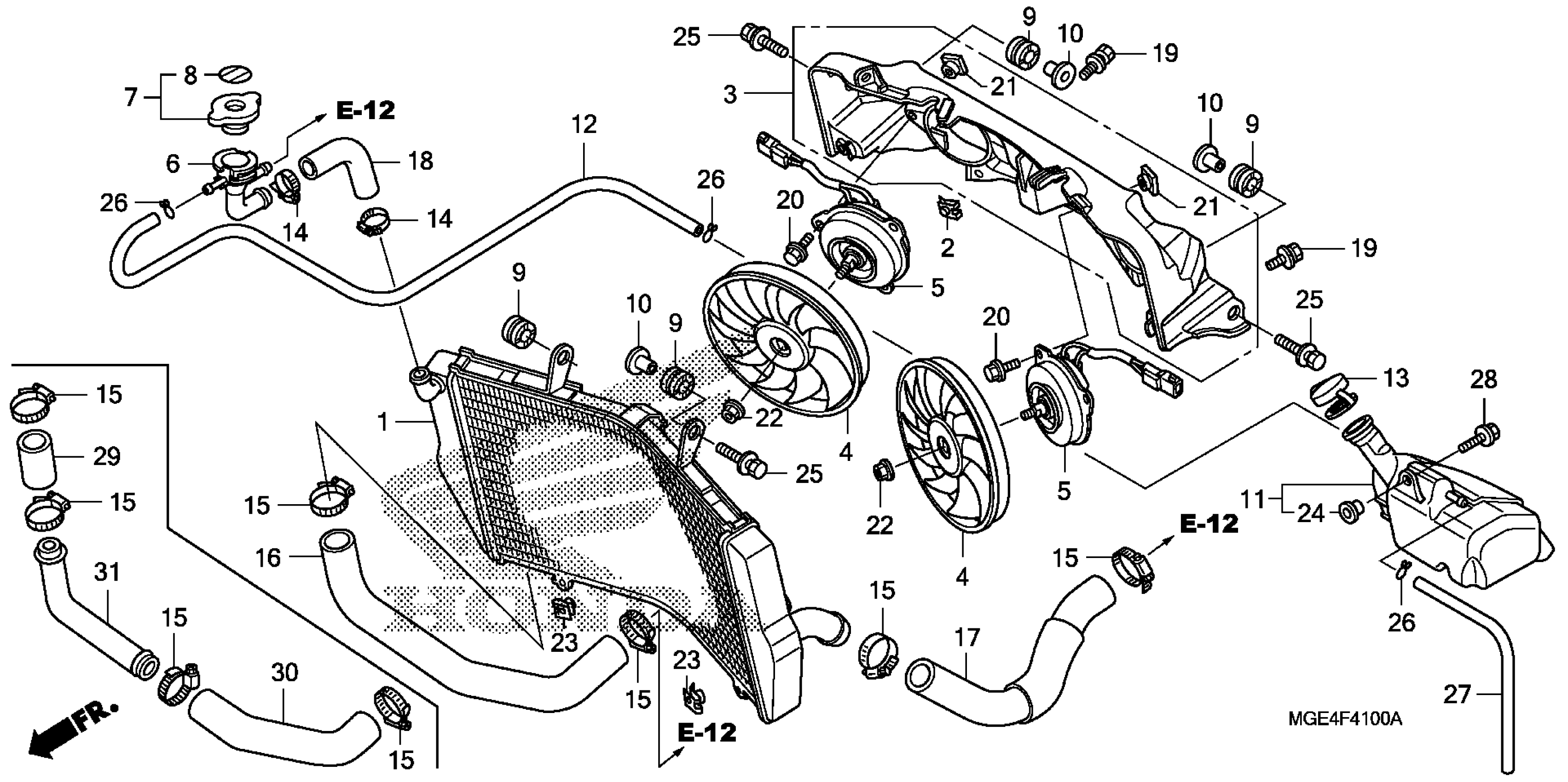

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (COO)

19010-MGE-305

$930.69

2

NUT, SETTING (6MM)

19014-KEA-003

$2.95

3

SHROUD (COO)

19015-MGE-305

$71.99

4

FAN, COOLING

19020-MFG-D01

$37.94

5

MOTOR ASSY., FAN

19030-MGE-003

$269.97

6

NECK, FILLER

19035-MFL-003

$17.91

7

CAP, RADIATOR

19037-GEE-710

$27.80

8

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

9

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

10

COLLAR, RADIATOR MOUNTING

19052-MAC-680

$4.90

11

TANK, RADIATOR RESERVE (COO)

19101-MGE-305

$44.90

12

TUBE, RESERVE TANK BREATHER

19104-MGE-000

$9.06

13

CAP, RESERVE TANK

19109-KPC-640

$4.59

14

CLAMP A, WATER HOSE

19505-KS6-700

Unavailable

15

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.46

16

HOSE A1, RADIATOR

19510-MGE-000

$43.43

17

HOSE B, RADIATOR

19512-MGE-000

$39.07

18

HOSE, FILLER NECK

19514-MGE-000

$7.10

19

BOLT-WASHER (6X16)

90120-KCR-003

$4.19

20

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

21

NUT, SPECIAL (5MM)

90303-MBB-003

$3.47

22

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

23

NUT, SPRING (6MM)

90320-747-000

$2.16

24

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.79

25

BOLT-WASHER (6X25)

93404-06025-00

$1.01

26

CLIP, TUBE (B10)

95002-02100

$1.75

27

BULK HOSE, VACUUM (5.5X8000) (5.3X610)

95005-55008-10M

Unavailable

28

BOLT, FLANGE (6X18)

96300-06018-00

Unavailable
