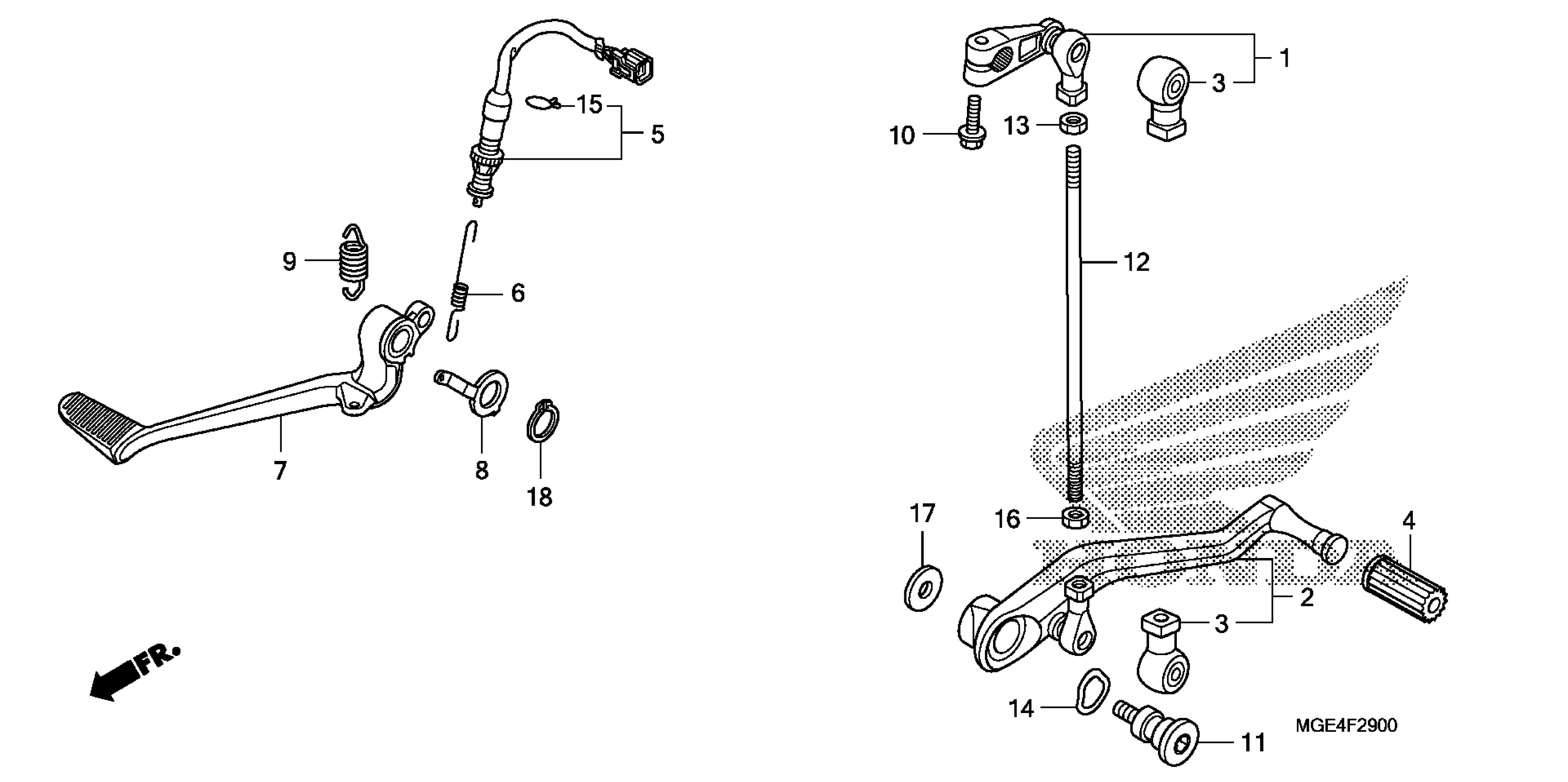

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 PEDAL Diagram

ARM, GEARSHIFT

24710-MGE-000

$67.19

PEDAL, GEARSHIFT This part replaces 24720-MGE-305.

24720-MGE-000

$134.62

COVER, DUST

24724-MBW-D21

$6.49

RUBBER, GEARSHIFT PEDAL

24705-MR7-000

$3.51

SWITCH ASSY., RR. STOP

35350-MGE-642

$35.43

SPRING, STOP SWITCH

35357-KCT-690

$4.12

PEDAL, RR. BRAKE This part replaces 46500-MGE-305.

46500-MGE-000

$143.75

PLATE, BRAKE PEDAL

46502-MGE-000

$3.93

SPRING, BRAKE PEDAL

46514-KZ4-J00

$4.59

BOLT, FLANGE (6X20)

90010-ML0-720

$2.80

BOLT, CHANGE PIVOT

90113-MCF-000

$7.41

BOLT, TIE ROD

90165-MGE-010

$8.17

NUT B, TIE ROD (LEFT HAND THREAD)

90302-MGE-000

$2.26

WASHER, CHANGE PEDAL WAVE

90505-MBW-000

$3.74

CLIP, SWITCH COVER

90651-MGE-641

$1.64

NUT, HEX. (6MM)

94002-06040-0S

$0.65

WASHER, PLAIN (8MM)

94103-08700

$0.86

CIRCLIP (OUTER) (15MM)

94511-15000

$0.62
