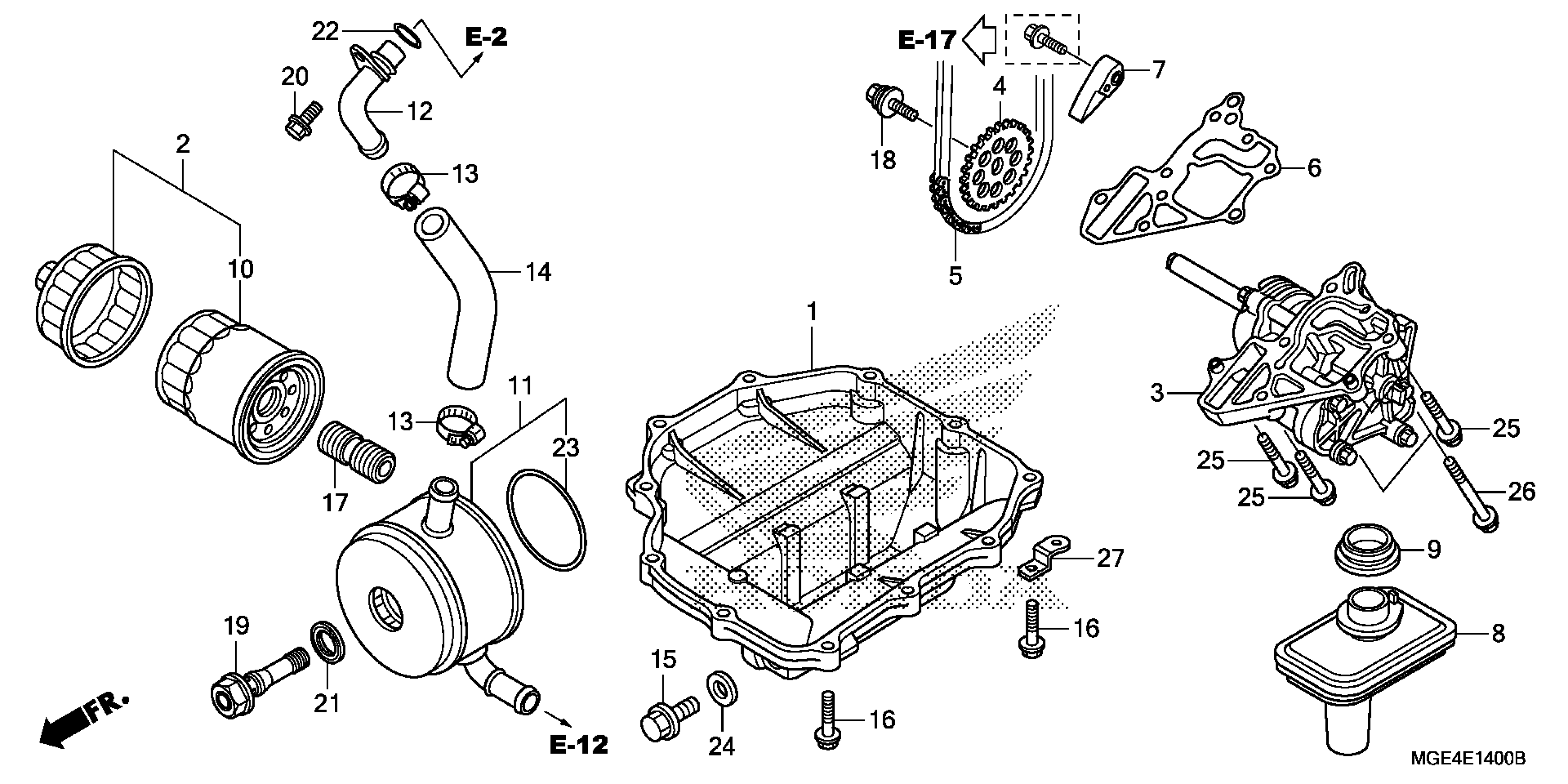

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 OIL PUMP (1) Diagram

#

Description
Price

1

PAN, OIL

11210-MGE-000

$207.74

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

3

PUMP ASSY., OIL

15100-MGE-000

$443.51

4

SPROCKET, OIL PUMP DRIVEN (22T)

15134-MCA-000

$36.30

5

CHAIN, OIL PUMP DRIVE (DID25H-72L)

15141-MFJ-D01

$19.22

6

GASKET, OIL PUMP

15145-MGE-003

$9.96

7

GUIDE A, OIL PUMP CHAIN

15146-MGE-D00

$15.83

8

STRAINER, OIL

15150-MGE-000

$38.86

9

GASKET, OIL STRAINER

15154-MAT-000

$5.73

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

11

COOLER, OIL

15700-MGE-003

$253.23

12

JOINT, FR. WATER INLET

19330-MGE-000

$22.61

13

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

14

HOSE B, OIL COOLER WATER

19505-MGE-000

$9.07

15

BOLT, PLUG DRAIN (14MM)

90014-MGE-000

$3.17

16

BOLT, FLANGE (6X28)

90016-GHB-680

$2.07

17

BOSS, OIL FILTER

90019-MB0-000

$7.73

18

BOLT-WASHER (6X12)

90021-MM5-000

$4.76

19

BOLT, OIL COOLER

90023-MGE-000

$59.06

20

BOLT, FLANGE (6X14)

90031-MGE-000

$1.87

21

WASHER, SEALING (34.5MM)

90402-MFJ-D01

$6.72

22

O-RING (13X3.0)

91302-MB6-830

$1.78

22

O-RING (13X3.0) This part replaces 91314-KE8-003.

91302-MB6-830

$1.78

23

O-RING, OIL COOLER

91354-MCT-003

$7.08

24

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

25

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

26

BOLT, FLANGE (6X55)

95701-06055-00

$1.97

27

STAY, CLIP

32160-MGE-D01

$3.26
