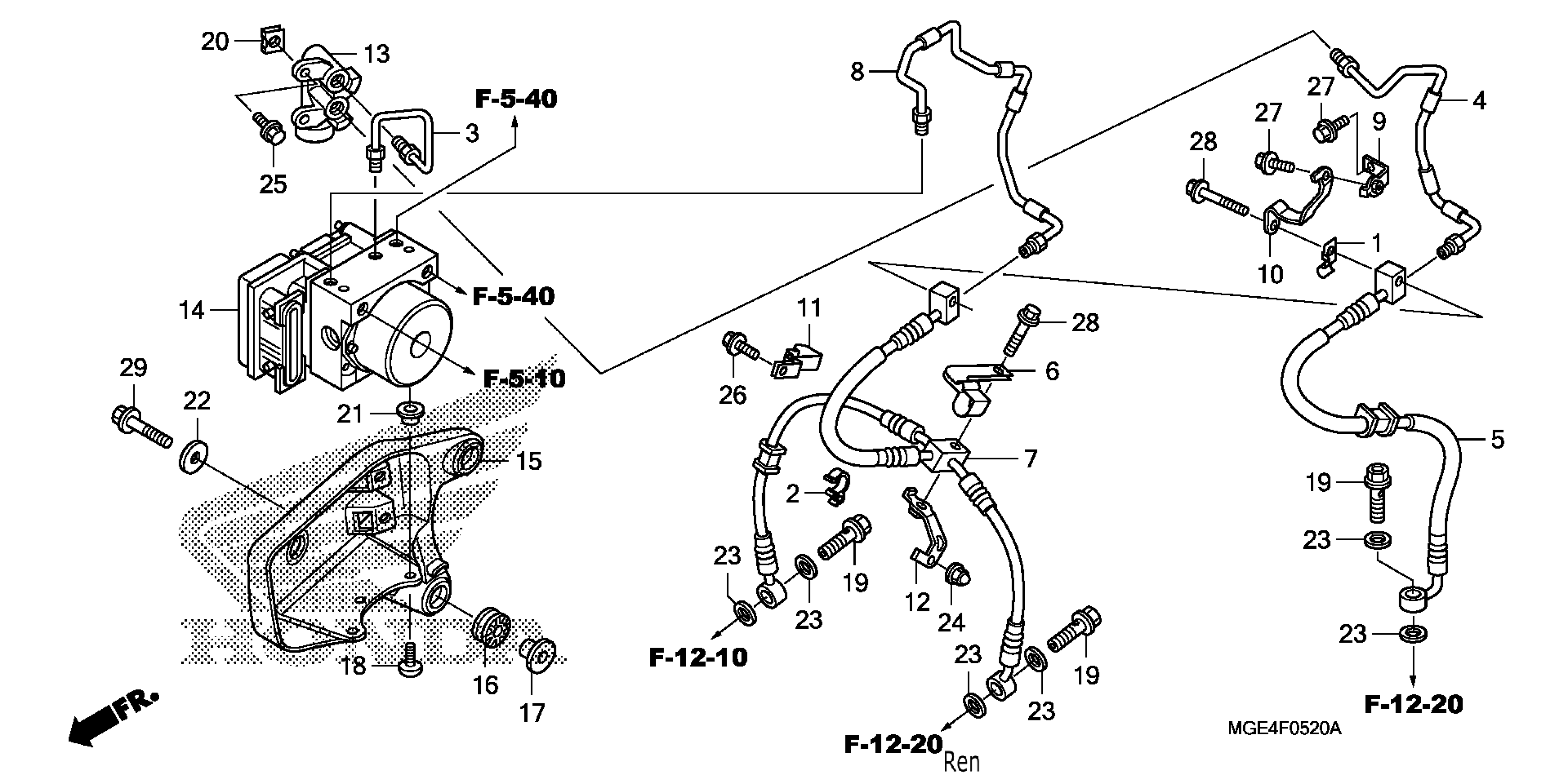

Honda VFR1200FAC (13) VFR1200F, JPN, VIN# JH2SC631-DK300001 ABS MODULATOR Diagram

#

Description
Price

1

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.06

2

CLAMP, ABS WIRE (12)

38517-MGE-003

$2.48

3

SUB-PIPE A, BRAKE

43320-MGE-000

$9.10

4

SUB-PIPE B, BRAKE

43321-MGE-000

$14.42

5

SUB-HOSE A, BRAKE

43322-MGE-003

$53.77

6

CLAMP, FR. BRAKE HOSE

43323-MGE-000

$3.38

7

HOSE B, FR. BRAKE

45124-MGE-003

$107.55

8

PIPE B, FR. BRAKE

45126-MGE-000

$16.03

9

STAY, FR. HOSE

45161-MGE-000

$6.10

10

STAY, FR. BRAKE

45162-MGE-000

$5.48

11

CLAMP, R. FR. BRAKE HOSE

45164-MGE-000

$5.35

12

STAY, L. FR. BRAKE

45165-MGE-000

$4.58

13

VALVE ASSY., DELAY

46300-MGE-006

$163.75

14

MODULATOR ASSY. (MSDS)

57110-MGE-003

$1,547.52

15

GUARD, ABS

57150-MGE-000

$36.28

16

CUSHION, RUBBER

57156-MGE-000

$3.65

17

COLLAR, SEAT MOUNTING

77216-KG1-920

$2.78

18

SCREW, PAN

90106-MAV-000

$1.99

19

BOLT, OIL (10X22)

90145-MS9-612

$6.82

20

NUT, SPRING (6MM)

90320-747-000

$2.13

21

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.77

22

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

23

WASHER, OIL BOLT

90545-300-000

$3.72

24

NUT, CAP (6MM)

94021-06070-0S

$1.48

25

BOLT, FLANGE (6X16)

95701-06016-07

$1.48

26

BOLT, FLANGE (6X10)

96001-06010-07

$1.48

27

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

28

BOLT, FLANGE (6X28)

96001-06028-07

$1.38

29

BOLT, FLANGE (8X32)

96300-08032-00

$1.48
