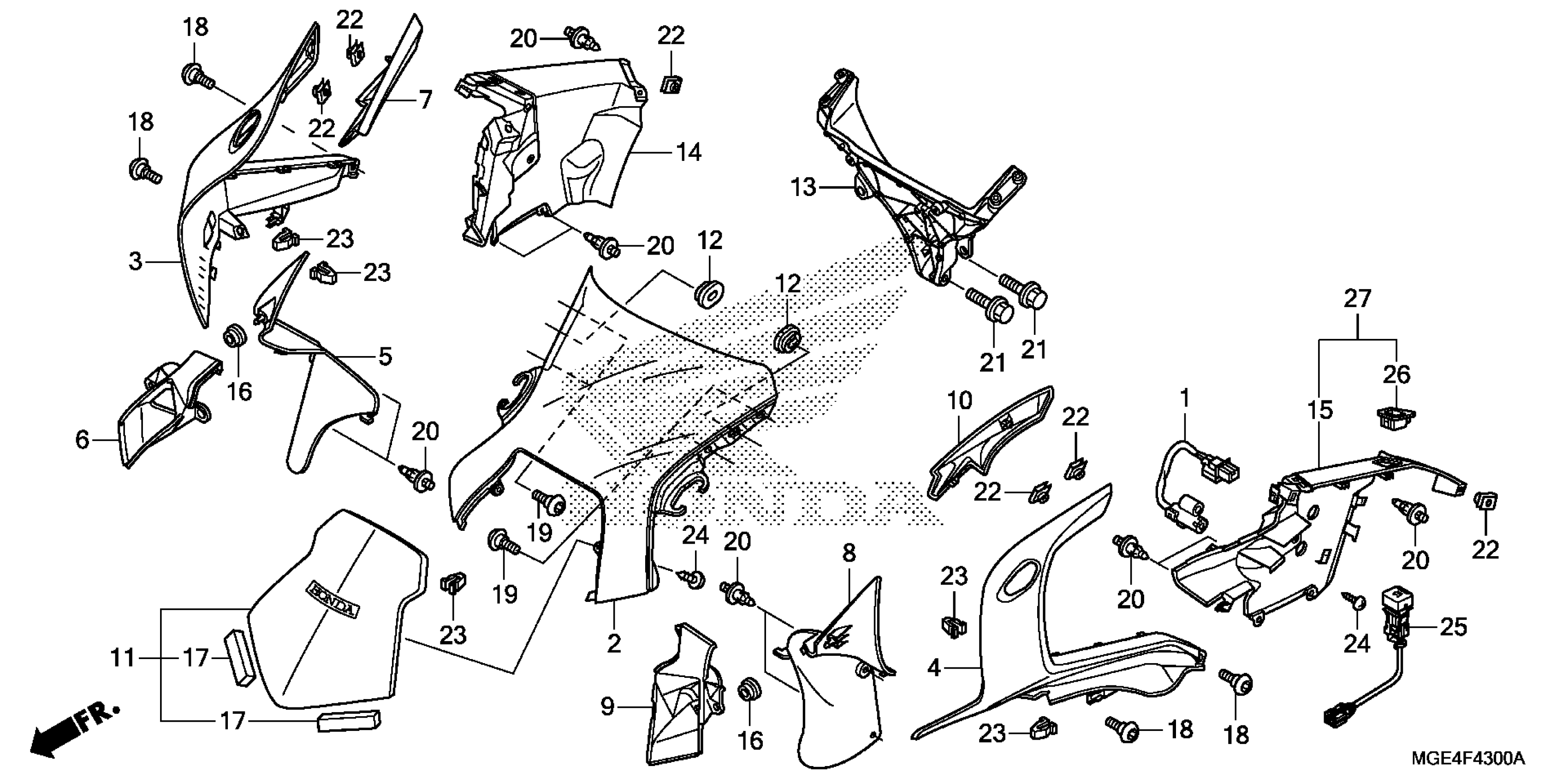

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 UPPER COWL Diagram

#

Description
Price

1

SENSOR, OPEN AIR TEMPERATURE This part replaces 37880-MGE-641.

37880-MGE-642

$62.77

2

WINDSCREEN This part replaces 64110-MGE-305.

64110-MGE-000

$266.39

3

COWL, R. (UPPER) *NHA30M* (DIGITAL SILVER METALLIC) | Candy prominence red R342C;

64130-MGE-000ZA

$307.56

4

COWL, L. (UPPER) *NHA30M* (DIGITAL SILVER METALLIC) | Candy prominence red R342C;

64140-MGE-000ZA

$369.00

5

COVER A, R. FR. (UPPER)

64150-MGE-000

$13.92

6

COVER B, R. FR. (UPPER)

64155-MGE-000

$11.84

7

COVER C, R. FR. (UPPER)

64157-MGE-000

$6.55

8

COVER A, L. FR. (UPPER)

64160-MGE-000

$14.56

9

COVER B, L. FR. (UPPER)

64165-MGE-000

$12.36

10

COVER C, L. FR. (UPPER)

64167-MGE-000

$6.55

11

COWL SET, CENTER (UPPER) *R342C* (WL) (CANDY PROMINENCE RED) | Candy prominence red R342C;

64200-MGE-000ZF

$201.85

12

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

13

STAY, COWL (UPPER)

64500-MGE-000

$201.95

14

COWL, R. (INNER)

64543-MGE-000

$33.59

15

COWL, L. (INNER)

64544-MGE-000

$33.59

16

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$3.08

17

MAT, CENTER (UPPER)

67105-MGE-300

$3.31

18

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.59

19

SCREW, SPECIAL (5X11)

90115-MFJ-D00

$2.48

20

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

21

BOLT, FLANGE (8X28)

90120-MEE-000

$2.33

22

NUT, CLIP (5MM)

90312-MT3-000

$4.57

23

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

24

SCREW, TAPPING (4X10)

93903-24280

$1.49
