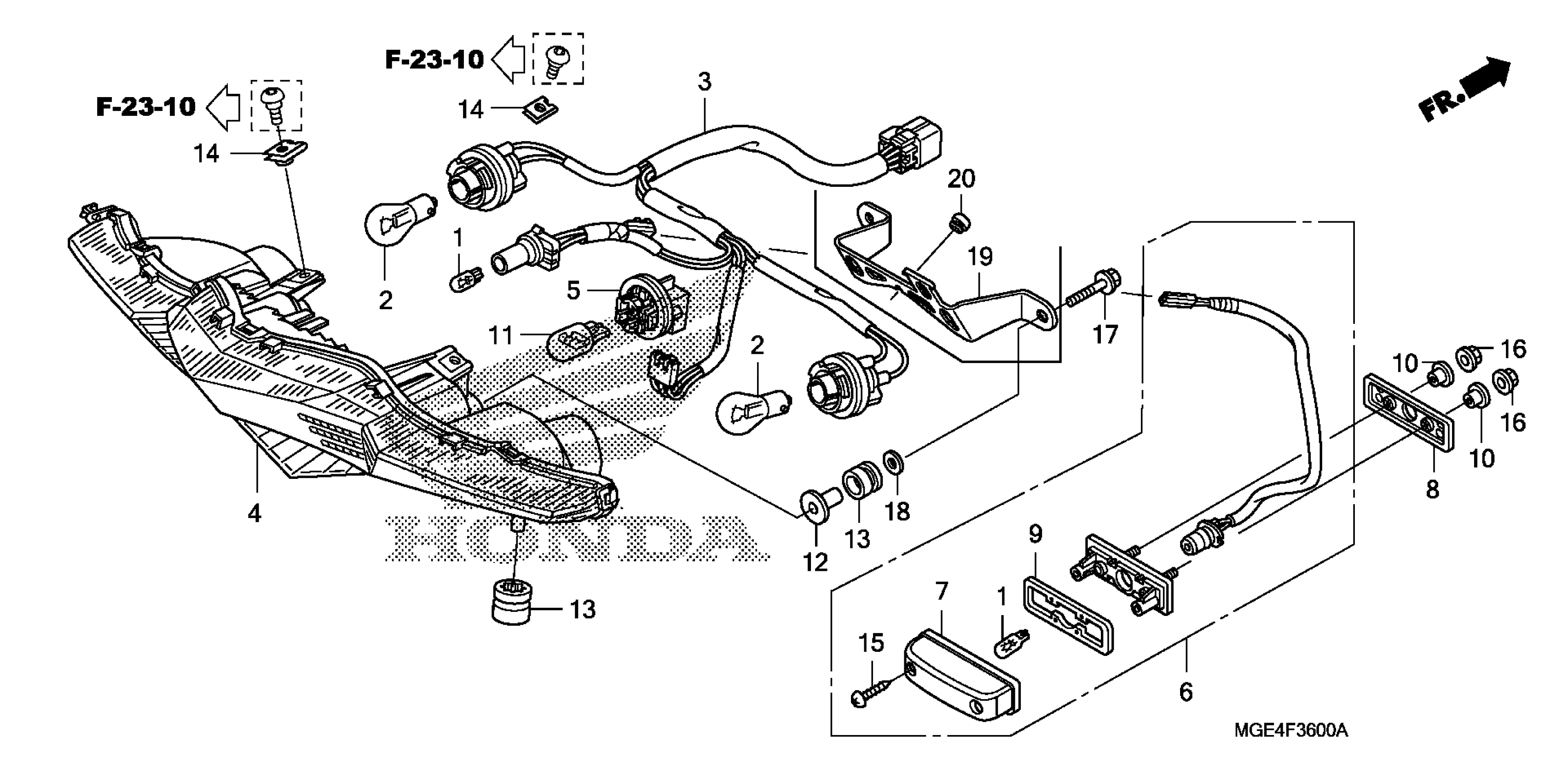

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 TAILLIGHT (1) Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

BULB, FR. TURN (12V 21W) (AMBER) (STANLEY) (RR.)

33301-S04-004

$10.31

SOCKET

33708-MGE-641

$62.49

COMBINATION UNIT, RR. (COO)

33710-MGE-305

$470.56

SOCKET

33720-GZ9-003

$12.97

LIGHT ASSY., LICENSE (COO)

33720-MGE-305

$105.89

LIGHT ASSY., LICENSE (COO) This part replaces 33720-MGE-671.

33720-MGE-305

$105.89

COVER, LICENSE

33721-GET-671

$19.11

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.97

GASKET, LENS

33729-MCZ-003

$9.48

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)

34906-MBB-611

$4.01

COLLAR, SETTING

61104-422-000

$6.91

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$5.12

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (4X16)

93901-24480

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49
