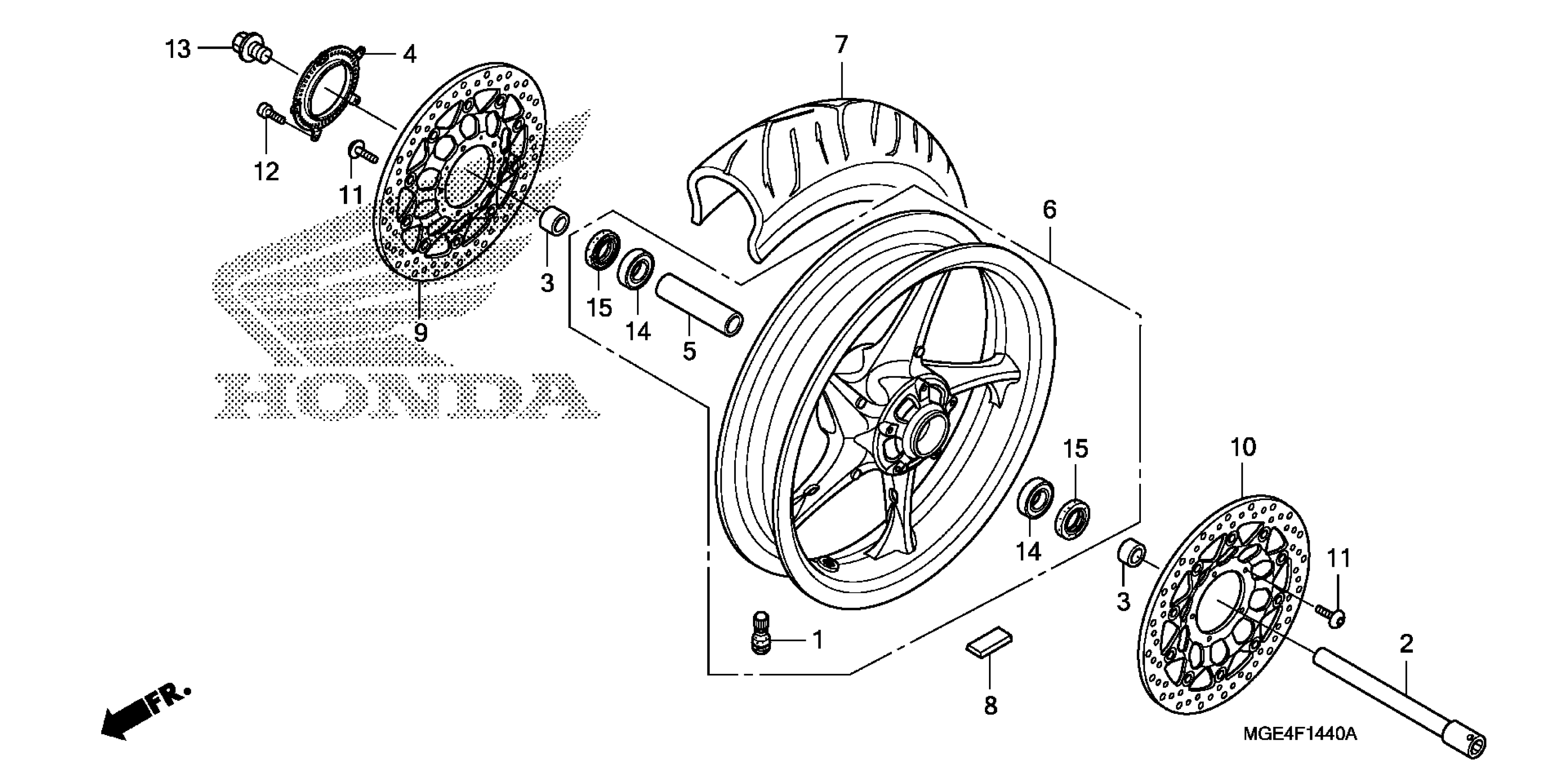

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 FRONT WHEEL Diagram

VALVE, RIM (BS)

42753-ML7-003

$12.74

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MGE-010

$78.30

COLLAR, FR. WHEEL SIDE

44312-MGE-000

$15.07

RING, FR. PULSER

44515-MGE-000

$47.23

COLLAR, FR. AXLE DISTANCE

44620-MGE-000

$20.10

WHEEL SUB-ASSY., FR. This part replaces 44650-MGE-315.

44650-MGE-010

$903.90

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MGE-003

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP) This part replaces 44711-MGE-004.

44711-MGE-014

$253.42

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

WEIGHT, BALANCE (40G) (TOHO ZINK)

44724-SEA-N02

$6.36

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

WEIGHT, BALANCE (35G) (TOHO ZINK)

44729-SEA-N02

$6.14

DISK, R. FR. BRAKE

45120-MGE-003

$636.00

DISK, L. FR. BRAKE

45220-MGE-003

$636.00

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.48

BOLT, TORX (5X10)

90131-KFK-630

$3.03

BOLT, FR. AXLE

90306-MFL-010

$10.46

BEARING, RADIAL BALL (6205UU)

91053-MCS-G01

$14.29

DUST SEAL (34X52X7)

91252-MGE-003

$8.74
