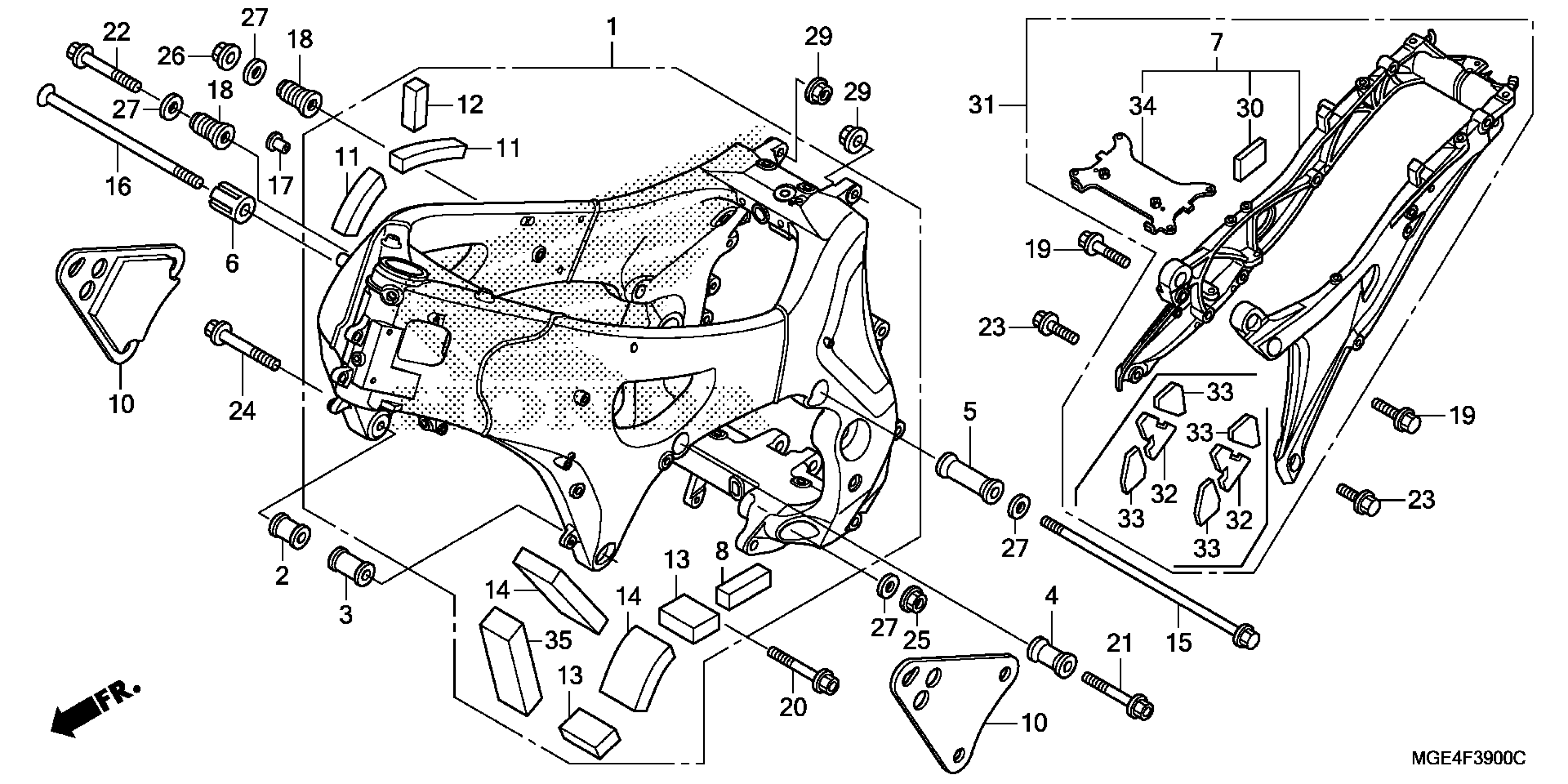

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 FRAME Diagram

#

Description
Price

1

FRAME SET *NH461M* (TEMPLE BLACK METALLIC) | Candy prominence red R342C;

50010-MGE-000ZA

$3,373.68

2

COLLAR A, R. ENGINE HANGER

50191-MGE-000

$7.00

3

COLLAR A, L. ENGINE HANGER

50192-MGE-000

$8.78

4

COLLAR B, ENGINE HANGER

50193-MGE-000

$10.12

5

COLLAR C, ENGINE HANGER

50194-MGE-000

$16.99

6

COLLAR D, ENGINE HANGER

50195-MGE-000

$24.43

7

RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC) | Use up to Frame SN AK000705Candy prominence red R342C;

50200-MGE-000ZA

$577.86

7

RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC) | Use from Frame SN AK000706 This part replaces 50200-MGE-010ZA.

50200-MGE-020ZA

Unavailable

7

RAIL ASSY., SEAT *NH461M* (TEMPLE BLACK METALLIC) | Use from Frame SN AK000706

50200-MGE-020ZA

Unavailable

8

MAT, TAILLIGHT

64470-GEY-300

$4.30

10

RUBBER, ENGINE HANGER

64520-MGE-000

$18.32

11

URETHANE A, R. HEAT GUARD

83530-MGE-000

$2.91

12

URETHANE B, R. HEAT GUARD

83550-MGE-000

$2.10

13

URETHANE A, L. HEAT GUARD

83630-MGE-000

$2.41

14

URETHANE B, L. HEAT GUARD

83635-MGE-000

$3.75

15

BOLT, FLANGE (12X344)

90101-MGE-000

$20.19

16

BOLT, SPECIAL (12X303)

90102-MGE-000

$25.55

17

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

18

BOLT, ADJUSTER (18X1.5X28.5)

90151-MGE-000

$11.94

19

BOLT, FLANGE (10X45)

90160-MGE-000

$4.42

20

BOLT, FLANGE (12X85)

90161-MGE-000

$13.03

21

BOLT, FLANGE (12X95)

90162-MGE-000

$13.03

22

BOLT, FLANGE (12X60)

90163-MGE-000

$10.75

23

BOLT, FLANGE (10X32)

90164-MGE-000

$4.09

24

BOLT, FLANGE (12X70)

90166-MGE-000

$10.78

25

NUT, FLANGE (12MM)

90371-MGE-000

$2.01

26

NUT, FLANGE (12MM)

90372-MGE-000

$2.01

27

WASHER, PLAIN (12MM)

90559-ZW1-000

$5.61

29

NUT, FLANGE (10MM)

94050-10000

$1.41

30

MAT F, SHOCK ABSORBER

64314-MCT-770

$2.43

34

PLATE, CENTER CROSS

50203-MGE-010

$45.59
