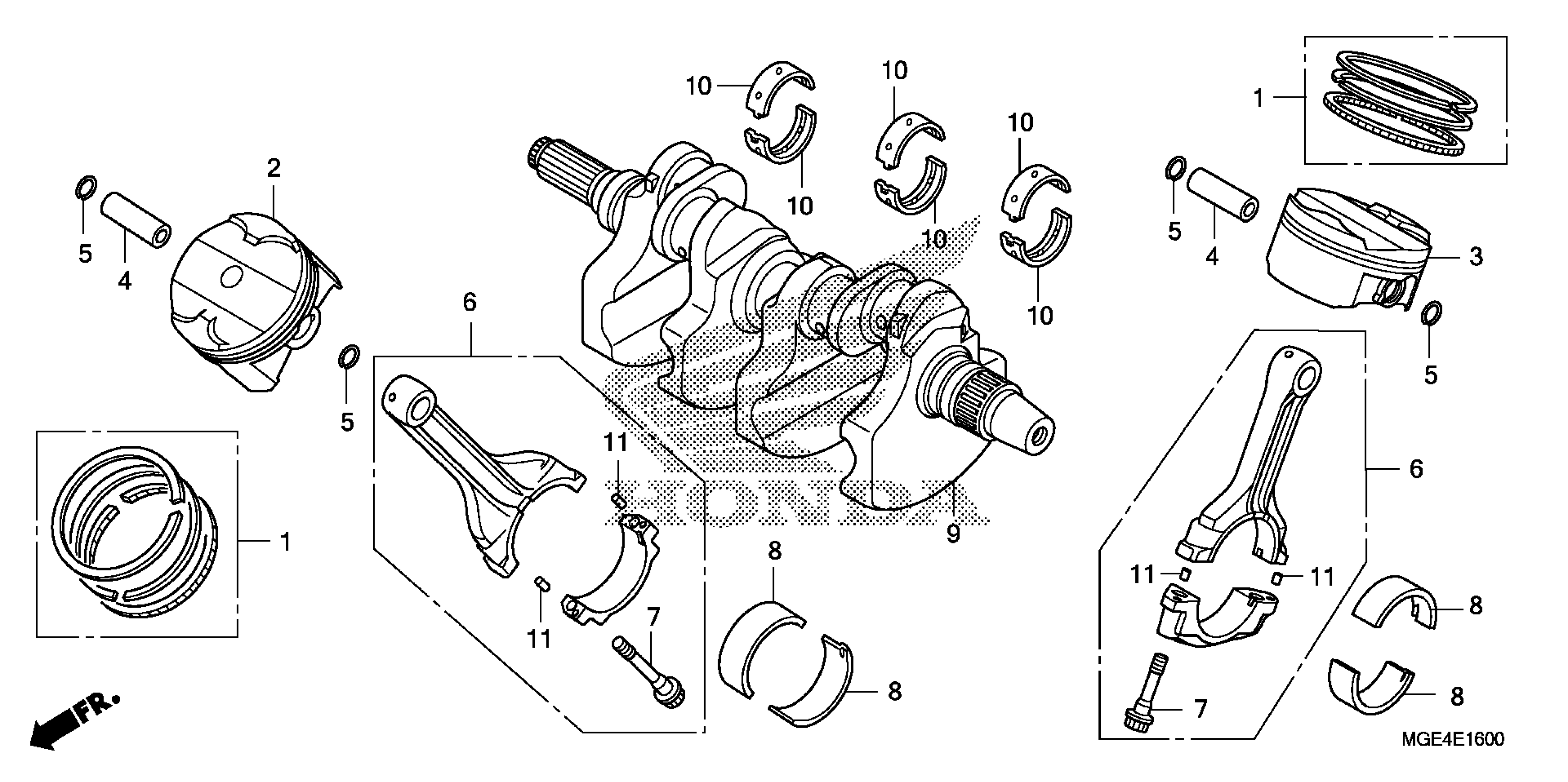

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MGE-305

$52.93

1

RING SET, PISTON (0.25) | (Optional).

13021-MGE-305

$58.67

1

RING SET, PISTON (0.50) | (Optional).

13031-MGE-305

$56.15

2

PISTON, FR. (STD) | Use up to Engine SN 5190781

13101-MGE-020

$115.61

2

PISTON, FR. (STD) | Use from Engine SN 5190782

13101-MGE-030

$126.57

2

PISTON, FR. (0.25) | (Optional). Use up to Engine SN 5190781

13102-MGE-325

$120.80

2

PISTON, FR. (0.25) | (Optional). Use from Engine SN 5190782

13102-MGE-335

$126.57

2

PISTON, FR. (0.50) | (Optional). Use up to Engine SN 5190781

13103-MGE-325

$115.61

2

PISTON, FR. (0.50) | (Optional). Use from Engine SN 5190782

13103-MGE-335

$126.57

3

PISTON, RR. (STD) | Use up to Engine SN 5190781 This part replaces 13105-MGE-020.

13105-MGE-030

$126.57

3

PISTON, RR. (STD) | Use from Engine SN 5190782

13105-MGE-030

$126.57

3

PISTON, RR. (0.25) | (Optional). Use up to Engine SN 5190781

13106-MGE-325

$120.80

3

PISTON, RR. (0.25) | (Optional). Use from Engine SN 5190782

13106-MGE-335

$126.57

3

PISTON, RR. (0.50) | (Optional). Use up to Engine SN 5190781

13107-MGE-325

$115.61

3

PISTON, RR. (0.50) | (Optional). Use from Engine SN 5190782

13107-MGE-335

$126.57

4

PIN, PISTON

13111-MGE-010

$80.11

5

CLIP, PISTON PIN (18MM)

13112-MGE-000

$2.72

6

ROD ASSY., CONNECTING

13210-MGE-000

$231.10

7

BOLT, CONNECTING ROD

13213-MGE-003

$6.45

8

BEARING A, CONNECTING ROD (BLUE)

13224-MGE-013

$13.38

8

BEARING B, CONNECTING ROD (BLACK)

13225-MGE-013

$12.79

8

BEARING C, CONNECTING ROD (BROWN)

13226-MGE-013

$13.38

8

BEARING D, CONNECTING ROD (GREEN)

13227-MGE-013

$12.79

8

BEARING E, CONNECTING ROD (YELLOW)

13228-MGE-013

$12.79

9

CRANKSHAFT | Use from Engine SN 5190782

13300-MGE-020

$1,473.44

10

BEARING A, CRANKSHAFT (BLUE)

13313-MGE-013

$13.00

10

BEARING B, CRANKSHAFT (BLACK)

13314-MGE-013

$13.00

10

BEARING C, CRANKSHAFT (BROWN)

13315-MGE-013

$13.00

10

BEARING D, CRANKSHAFT (GREEN)

13316-MGE-013

$13.57

10

BEARING E, CRANKSHAFT (YELLOW)

13317-MGE-013

$13.00

11

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
