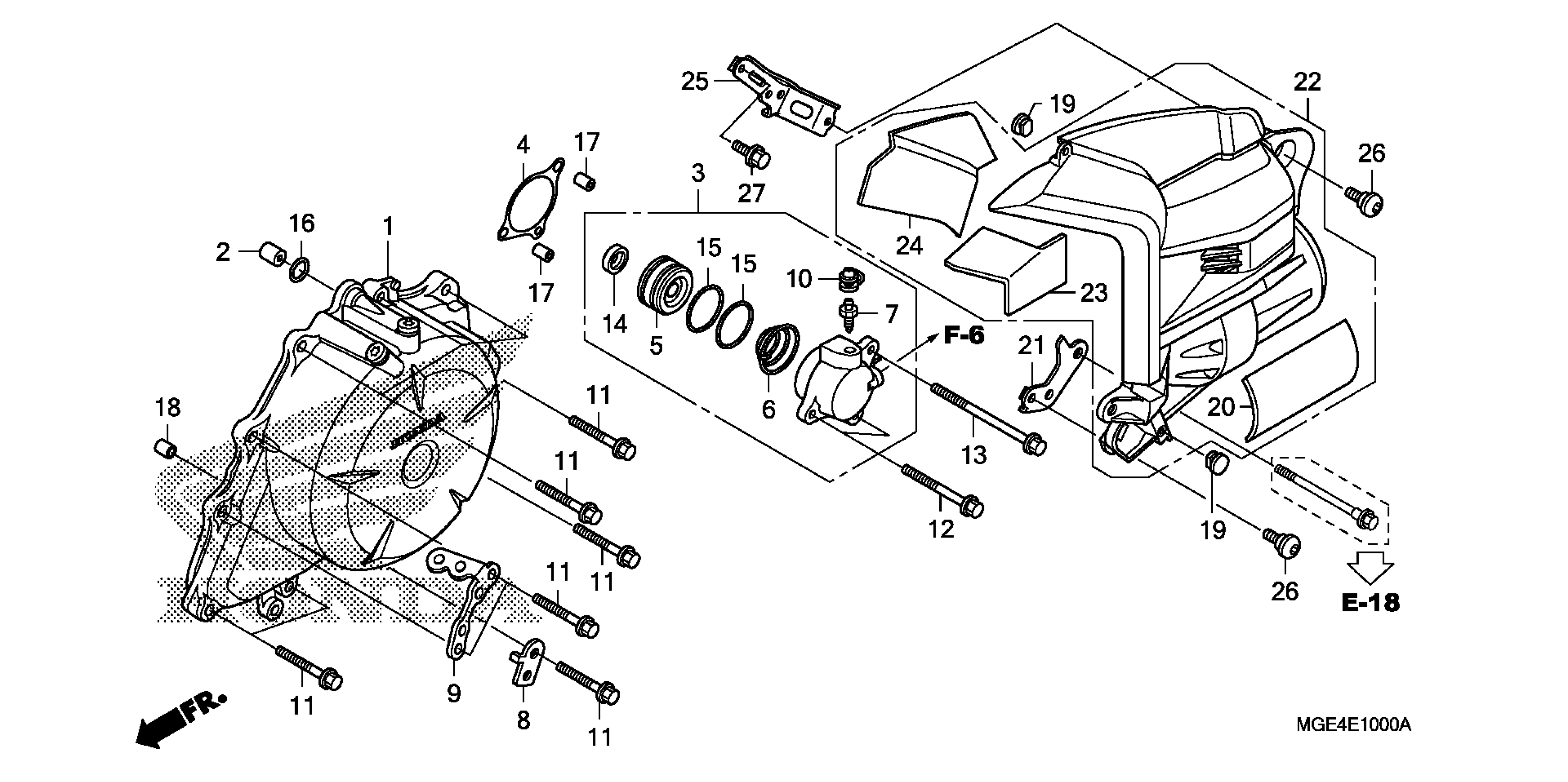

Honda VFR1200FAC (10) VFR1200F, JPN, VIN# JH2SC631-AK000001 TO JH2SC631-AK099999 ALTERNATOR COVER Diagram

COVER, ALTERNATOR

11320-MGE-010

$356.23

ORIFICE B

15516-MGE-000

$5.52

CYLINDER ASSY., SLAVE

22860-MGE-013

$191.52

GSKT, SLAVE CYLINDER | Use from Engine SN 5008646 This part replaces 22862-MGE-010.

22862-MGE-020

$6.39

PISTON, SLAVE CYLINDER

22863-MGE-003

$28.49

SPRING, SLAVE CYLINDER

22864-MGE-003

$6.97

SCREW, BLEEDER

22866-MF2-711

$5.12

STAY, HARNESS CLIP

32157-MFJ-D00

$3.31

STAY, HARNESS CLIP

32158-MGE-000

$3.15

CAP, BLEEDER

43353-461-771

$5.05

BOLT, FLANGE (6X28)

90016-GHB-680

$2.28

BOLT, FLANGE (6X45)

90016-GHB-720

$2.34

BOLT, FLANGE (6X75)

90016-GHB-780

$2.49

OIL SEAL (8X18X5)

91209-MB0-003

$4.06

O-RING (29X2.4)

91309-MGE-003

$2.00

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

PIN, DOWEL (8X10)

94301-08100

$2.25

PIN, DOWEL (8X14)

94301-08140

$2.25
