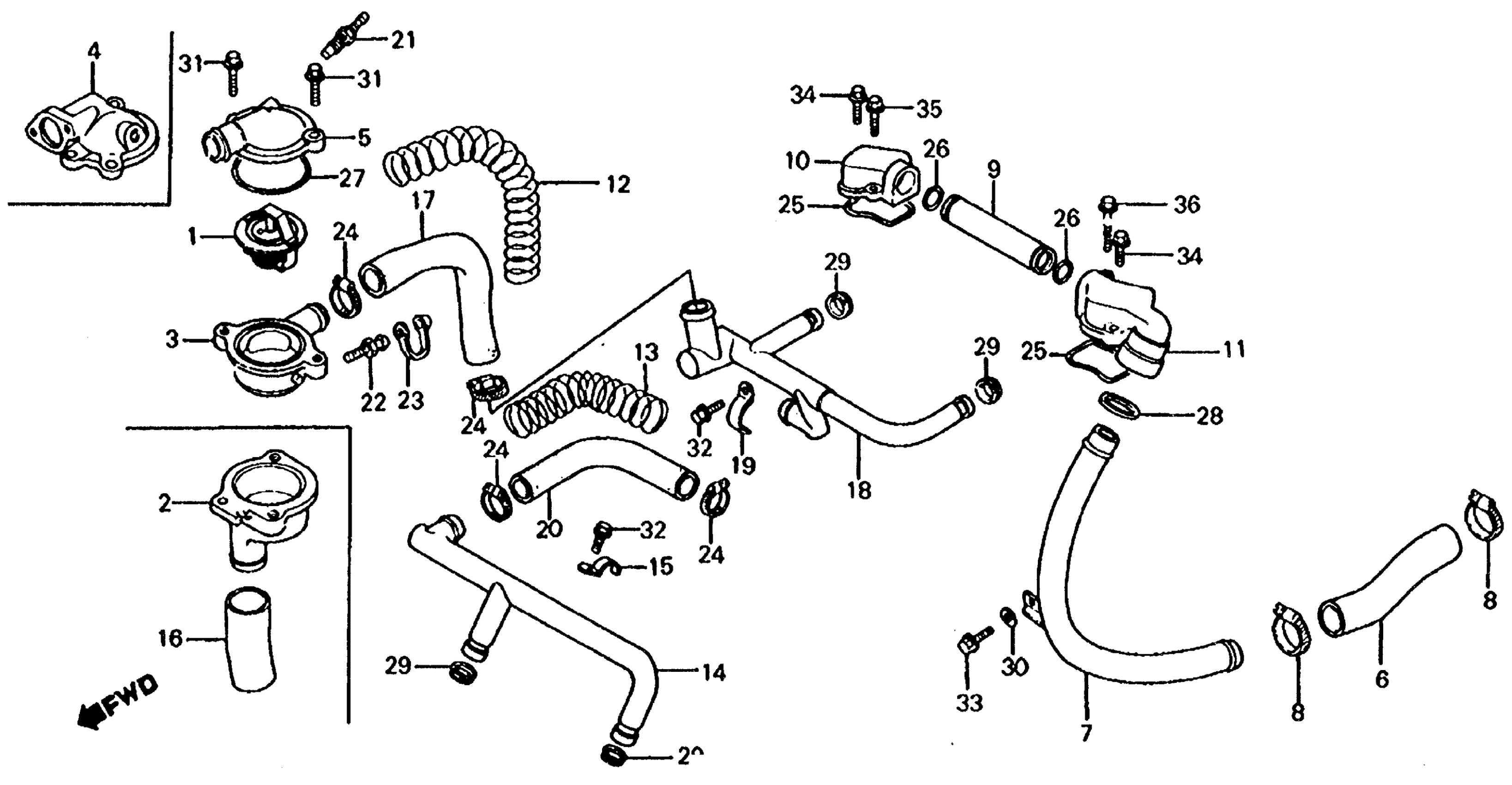

Honda VF750SA (83) V45 SABRE, JPN, VIN# JH2RC070-DM100006 TO JH2RC070-DM108632 WATER PIPE + THERMOSTAT Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$47.39

3

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MB1-000

Unavailable

5

COVER, THERMOSTAT

19315-MB0-770

Unavailable

6

HOSE, CONNECTING (NOT AVAILABLE)

19502-MB0-000

Unavailable

7

PIPE, WATER OUTLET CONNECTING

19504-MB0-000

Unavailable

8

CLAMP, WATER HOSE

19506-KA4-000

$8.25

9

PIPE, CONNECTING

19507-MB0-000

Unavailable

10

CAP A, CONNECTING

19508-MB0-000

Unavailable

11

CAP B, CONNECTING PIPE

19509-MB0-000

Unavailable

12

WIRE A, GUARD

19511-MB1-000

Unavailable

13

WIRE B, GUARD (NOT AVAILABLE)

19512-MB0-000

Unavailable

14

PIPE A, WATER (NOT AVAILABLE)

19520-MB0-000

Unavailable

15

CLAMP A, WATER PIPE (NOT AVAILABLE)

19524-MB0-000

Unavailable

17

HOSE, WATER (NOT AVAILABLE)

19526-MB1-000

Unavailable

18

PIPE B, WATER (NOT AVAILABLE)

19530-MB0-000

Unavailable

19

CLAMP B, WATER PIPE | Use up to Engine SN 2107555

19534-MB0-000

Unavailable

19

CLAMP A, WATER PIPE (NOT AVAILABLE) | Use from Engine SN 2107556

19524-MB0-000

Unavailable

20

HOSE B, WATER

19536-MB0-000

Unavailable

21

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$73.04

22

SCREW, BLEEDER

43352-568-003

$7.39

23

CAP, BLEEDER

43353-461-771

$4.70

24

CLAMP, WATER HOSE

50228-MB0-000

Unavailable

25

GASKET, CONNECTING CAP

91301-MB0-000

$3.82

26

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.00

27

O-RING (54X2)

91307-MB0-003

$3.00

28

SEAL, WATER PIPE | Use up to Engine SN 2109659

91302-415-003

$6.04

28

SEAL, WATER PIPE | Use up to Engine SN 2102112

91302-415-003

$6.04

28

SEAL, WATER PIPE | Use up to Engine SN 2102112 This part replaces 91315-MB0-003.

91302-415-003

$6.04

28

SEAL, WATER PIPE | Use from Engine SN 2109660

91315-MB0-013

Unavailable

29

O-RING (13X2.5)

91335-567-000

$3.73

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM)

94101-06800

Unavailable

31

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

Unavailable

31

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

32

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.64

32

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

33

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$0.96

33

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

34

BOLT, FLANGE (6X22) (NOT AVAILABLE) | Use from Engine SN 2107802

90031-MB0-000

Unavailable

34

BOLT, FLANGE (6X22) | Use up to Engine SN 2107801 This part replaces 96000-06022-07.

96001-06022-07

$1.68

34

BOLT, FLANGE (6X22) | Use up to Engine SN 2107801

96001-06022-07

$1.68

35

BOLT, FLANGE (6X25) | Use from Engine SN 2107802

90032-MB0-000

Unavailable

35

BOLT, FLANGE (6X25) | Use up to Engine SN 2107801 This part replaces 96000-06025-07.

96001-06025-07

Unavailable

35

BOLT, FLANGE (6X25) | Use up to Engine SN 2107801

96001-06025-07

Unavailable

36

BOLT, FLANGE (6X35) | Use from Engine SN 2107802

90033-MB0-000

Unavailable

36

BOLT, FLANGE (6X35) | Use up to Engine SN 2107801 This part replaces 96000-06035-07.

96001-06035-07

$1.97

36

BOLT, FLANGE (6X35) | Use up to Engine SN 2107801

96001-06035-07

$1.97
