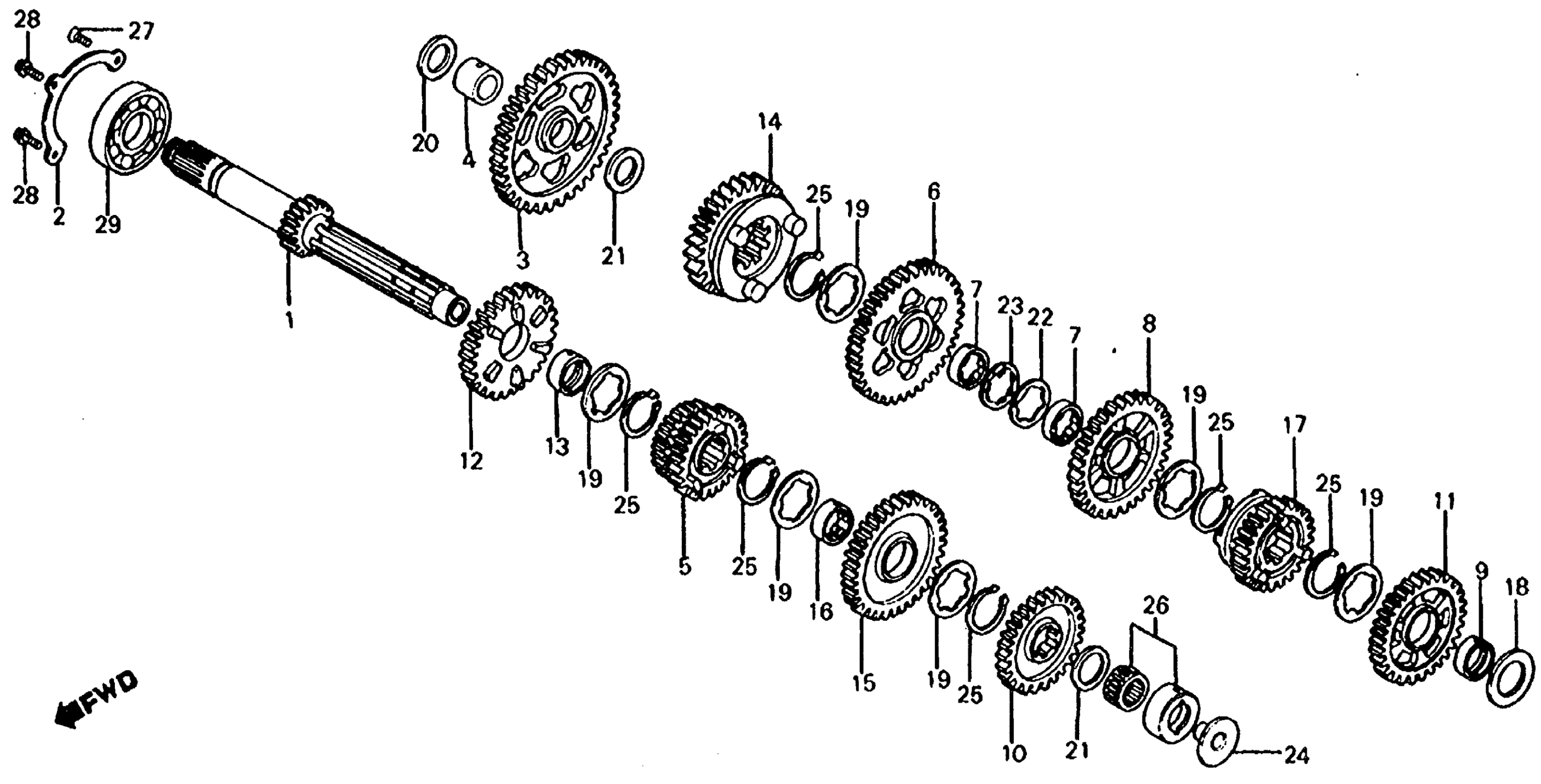

Honda VF750SA (83) V45 SABRE, JPN, VIN# JH2RC070-DM100006 TO JH2RC070-DM108632 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (17T) (NOT AVAILABLE)

23211-MB0-770

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) This part replaces 23212-MB0-000.

23212-MB4-830

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) This part replaces 23212-MB0-010.

23212-MB4-830

Unavailable

2

PLATE, BEARING SETTING

23212-MB4-830

Unavailable

3

GEAR, COUNTERSHAFT LOW (39T)

23421-MB0-000

Unavailable

4

COLLAR (20X11.8) This part replaces 23422-MB0-000.

23422-MB0-010

Unavailable

4

COLLAR (20X11.8)

23422-MB0-010

Unavailable

5

GEAR, MAINSHAFT SECOND & THIRD (21T,24T) | Use up to Engine SN 2115140 This part replaces 23431-MB0-000.

23431-MN0-000

Unavailable

5

GEAR, MAINSHAFT SECOND & THIRD (21T,24T) This part replaces 23431-MB0-010.

23431-MN0-000

Unavailable

5

GEAR, MAINSHAFT SECOND & THIRD (21T,24T)

23431-MN0-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (34T)

23441-MB0-000

Unavailable

7

COLLAR, SPLINE (25X9.5)

23442-MB0-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (31T) (NOT AVAILABLE)

23461-MB0-000

Unavailable

9

COLLAR (25X10) (NOT AVAILABLE)

23462-MB0-000

$17.25

10

GEAR, MAINSHAFT FOURTH (27T)

23471-MB0-000

Unavailable

11

GEAR, COUNTERSHAFT FOURTH (29T) (NOT AVAILABLE)

23481-MB0-000

Unavailable

12

GEAR, MAINSHAFT FIFTH (29T) (NOT AVAILABLE) This part replaces 23491-MB0-000.

23491-MK3-000

Unavailable

13

COLLAR (25X12)

23495-MB0-000

$26.23

14

GEAR, COUNTERSHAFT FIFTH (26T) | Use up to Engine SN 2115140 This part replaces 23501-MB0-000.

23501-MN0-000

$140.74

14

GEAR, COUNTERSHAFT FIFTH (26T) This part replaces 23501-MB0-010.

23501-MN0-000

$140.74

14

GEAR, COUNTERSHAFT FIFTH (26T)

23501-MN0-000

$140.74

15

GEAR, MAINSHAFT SIXTH (32T)

23511-MB0-000

Unavailable

16

COLLAR, SPLINE (25X12.5)

23512-MB0-000

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE) | Use up to Engine SN 2115140 This part replaces 23521-MB0-000.

23521-MB0-010

Unavailable

17

GEAR, COUNTERSHAFT SIXTH (24T) (NOT AVAILABLE)

23521-MB0-010

Unavailable

18

WASHER K, DRIVE PINION

41460-371-000

Unavailable

19

WASHER, THRUST (25X34)

90452-371-000

$4.82

20

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

20

WASHER, THRUST (20X1.05)

90453-MB0-770

$5.36

20

WASHER, THRUST (20X0.95)

90455-MB0-770

Unavailable

20

WASHER, THRUST (20X0.90)

90456-MB0-770

$4.80

20

WASHER, THRUST (20X0.85)

90457-MB0-770

Unavailable

21

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

22

WASHER B, THRUST (25MM)

90461-286-000

Unavailable

23

WASHER, LOCK (25MM)

90462-323-000

$3.77

24

PLATE, ORIFICE This part replaces 90558-MB0-000.

90558-MJ0-000

$6.11

24

PLATE, ORIFICE

90558-MJ0-000

$6.11

25

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

26

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

27

SCREW, FLAT (6X16) (YAMADA)

93600-06016-0A

$1.49

28

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

28

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

29

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
