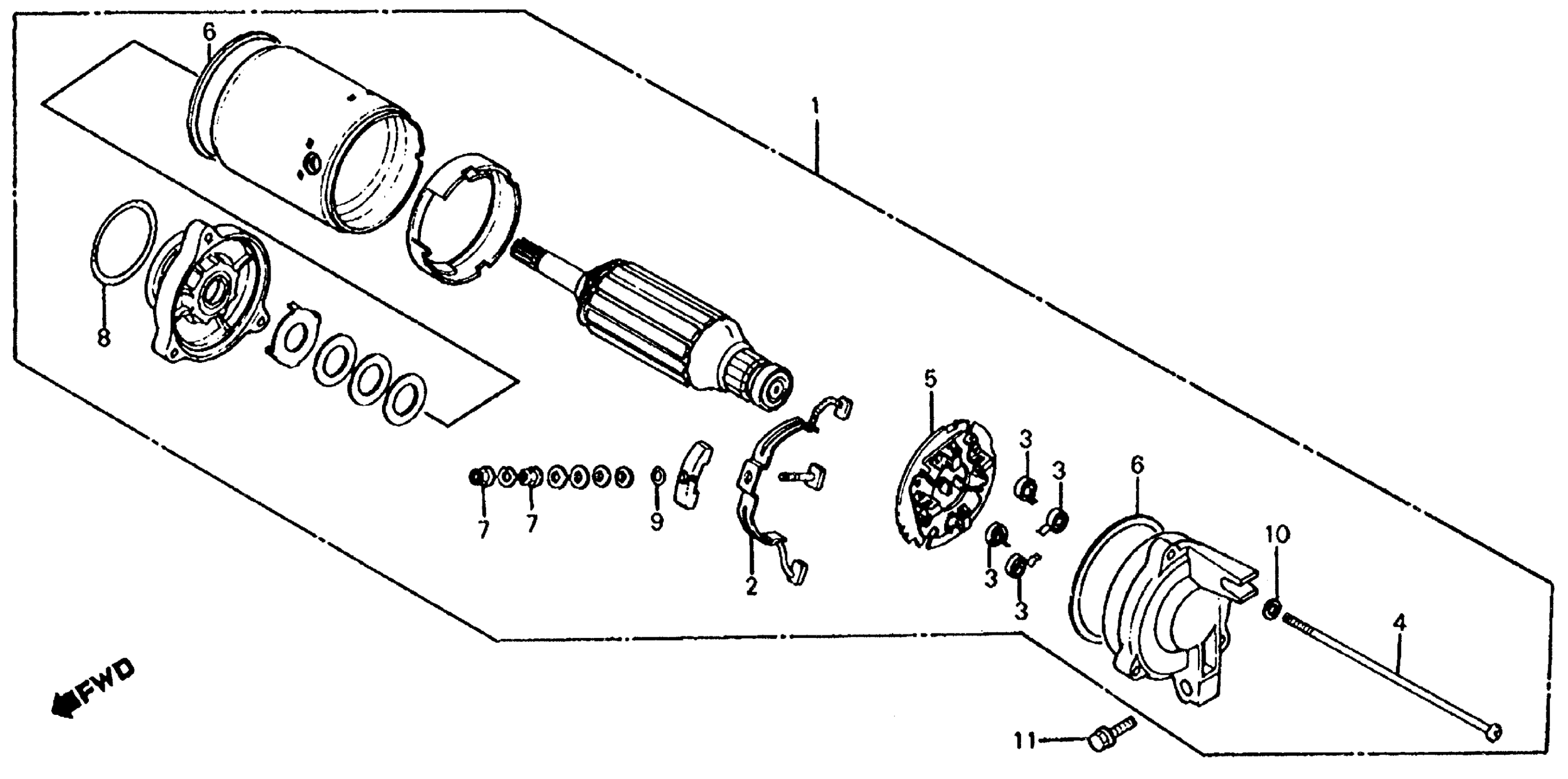

Honda VF750SA (83) V45 SABRE, JPN, VIN# JH2RC070-DM100006 TO JH2RC070-DM108632 STARTER MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-MB0-008.

31200-MB0-405

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31201-MA6-000.

31201-KG7-000

$31.18

3

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

4

SCREW, PAN (5X115)

31205-MB0-000

Unavailable

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-KG7-000.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-MA6-000.

31206-MM5-008

$19.33

5

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

6

RING, SEAL

31207-179-711

$4.22

7

NUT-WASHER (6MM)

90071-MB0-000

$1.97

8

O-RING

91309-MA6-000

$3.97

9

O-RING

91320-MB0-000

$2.43

10

WASHER, SPRING (5MM)

94111-05000

$1.49

11

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

11

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
