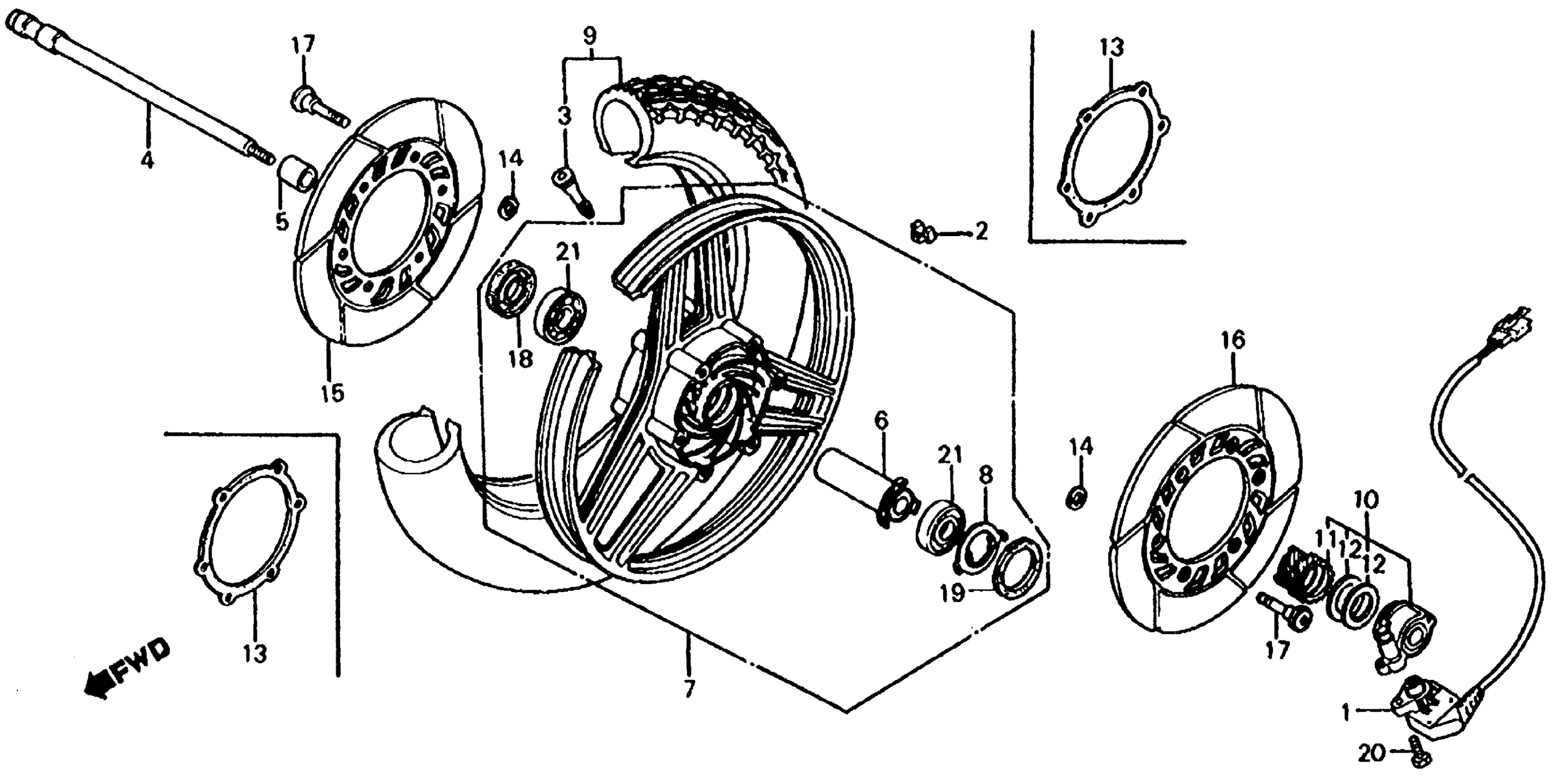

Honda VF750SA (83) V45 SABRE, JPN, VIN# JH2RC070-DM100006 TO JH2RC070-DM108632 FRONT WHEEL Diagram

#

Description
Price

1

SENSOR ASSY., SPEEDOMETER

37700-MB0-008

Unavailable

2

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

2

WEIGHT, BALANCE (10)

42704-MCF-D60

$12.74

2

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

2

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

2

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

2

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

3

VALVE, RIM (BS)

42753-425-003

$11.00

3

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

4

AXLE, FR. WHEEL

44301-KR3-901

Unavailable

4

AXLE, FR. WHEEL This part replaces 44301-MB0-000.

44301-MC5-000

$49.39

4

AXLE, FR. WHEEL

44301-MC5-000

$49.39

5

COLLAR, FR. WHEEL SIDE | Use up to Frame SN DM100093 This part replaces 44311-MB0-000.

44311-MC5-010

Unavailable

5

COLLAR, FR. WHEEL SIDE

44311-MC5-010

Unavailable

5

COLLAR, FR. WHEEL SIDE | Use up to Frame SN DM100093

44311-MC5-010

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-MB0-000

Unavailable

7

WHEEL, FR. (NOT AVAILABLE) This part replaces 44650-MB0-305.

44650-MB0-325

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP) This part replaces 44710-MB0-671.

44710-MB3-673

Unavailable

9

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP) This part replaces 44710-MB0-672.

44710-MB3-673

Unavailable

9

TIRE ASSY., FR. (110/90-18) (61H) (DUNLOP)

44710-MB3-673

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$115.81

11

GEAR, SPEEDOMETER

44806-MB0-003

$38.85

12

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

13

SHIM, DAMPING | Use up to Frame SN DM107560

45128-MB0-000

Unavailable

14

SHIM, DAMPING | Use from Frame SN DM107561

45128-ME2-003

$4.13

15

DISK, R. FR. BRAKE (NOT AVAILABLE)

45251-MB0-700

Unavailable

16

DISK, L. FR. BRAKE

45351-MB0-700

Unavailable

17

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

17

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

18

DUST SEAL (22X42X7)

91252-MC7-003

$7.46

19

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

20

BOLT, HEX. (5X20) This part replaces 92000-05020-0G.

92101-05020-0G

$1.49

20

BOLT, HEX. (5X20)

92101-05020-0G

$1.49

21

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

21

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
