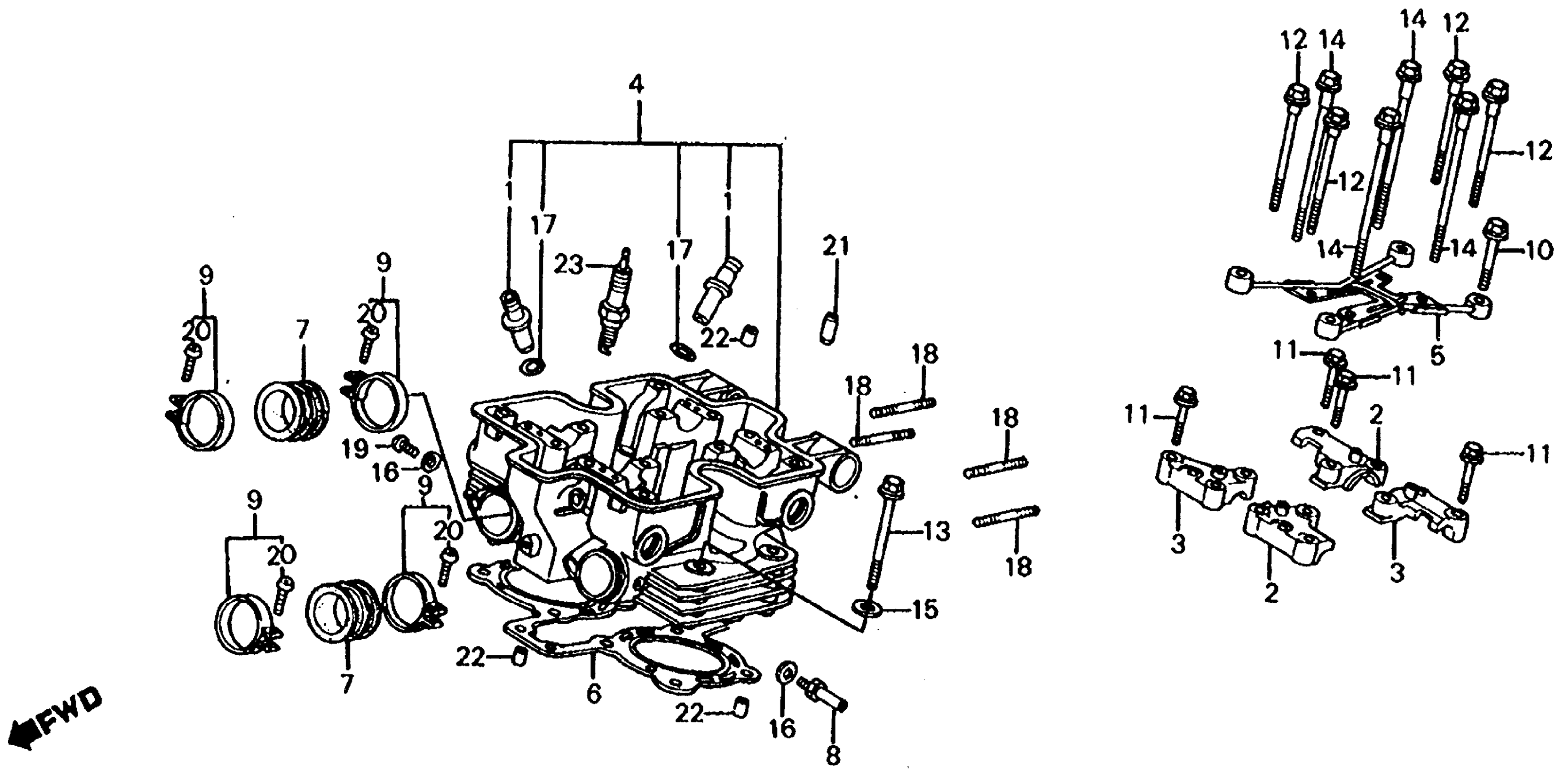

Honda VF750SA (83) V45 SABRE, JPN, VIN# JH2RC070-DM100006 TO JH2RC070-DM108632 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

GUIDE, VALVE (OS) This part replaces 12204-MB0-405.

12204-MS2-305

Unavailable

1

GUIDE, VALVE (OS)

12204-MS2-305

Unavailable

2

HOLDER A, CAMSHAFT | Use up to Engine SN 2115140 This part replaces 12211-MB0-770.

12211-MB0-773

Unavailable

2

HOLDER A, CAMSHAFT | Use up to Engine SN 2115140 This part replaces 12211-MB0-771.

12211-MB0-773

Unavailable

2

HOLDER A, CAMSHAFT This part replaces 12211-MB0-771.

12211-MB0-773

Unavailable

2

HOLDER A, CAMSHAFT This part replaces 12211-MB0-772.

12211-MB0-773

Unavailable

2

HOLDER A, CAMSHAFT

12211-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT | Use up to Engine SN 2115140 This part replaces 12212-MB0-770.

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT This part replaces 12212-MB0-771.

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT | Use up to Engine SN 2115140 This part replaces 12212-MB0-771.

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT This part replaces 12212-MB0-772.

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT | Use up to Engine SN 2115140 This part replaces 12212-MB0-772.

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT

12212-MB0-773

Unavailable

3

HOLDER B, CAMSHAFT | Use up to Engine SN 2115140

12212-MB0-773

Unavailable

4

CYLINDER HEAD, RR.

12220-MB0-770

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE) This part replaces 12230-MB0-000.

12230-MB0-010

Unavailable

5

PIPE A, OIL PASSAGE (NOT AVAILABLE)

12230-MB0-010

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB0-003.

12251-MN0-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-MB0-306.

12251-MN0-505

Unavailable

6

GASKET, CYLINDER HEAD

12251-MN0-505

Unavailable

7

INSULATOR B, CARBURETOR

16212-MB0-770

$16.91

8

JOINT, BOOSTER

16214-MB0-000

$4.76

9

BAND, INSULATOR This part replaces 16219-MB0-770.

16223-KS5-000

$14.20

9

BAND, INSULATOR

16223-KS5-000

$14.20

10

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.24

11

BOLT, FLANGE (6X54)

90003-MB0-770

Unavailable

12

BOLT, UBS (8X151) This part replaces 90006-MB0-000.

90006-MB0-010

Unavailable

12

BOLT, UBS (8X151)

90006-MB0-010

Unavailable

13

BOLT, UBS (9X93)

90011-MB0-000

$10.11

13

BOLT, UBS (9X93) This part replaces 90011-MB0-770.

90011-MB0-000

$10.11

14

BOLT, UBS (9X175) This part replaces 90012-MB0-003.

90012-MB6-003

Unavailable

14

BOLT, UBS (9X175) This part replaces 90012-MB0-013.

90012-MB6-003

Unavailable

14

BOLT, UBS (9X175)

90012-MB6-003

Unavailable

16

WASHER, SEALING (5MM)

90452-323-000

$1.59

18

BOLT 2, STUD (6X32) This part replaces 92700-06045.

92900-06032-0E

$2.45

18

BOLT 2, STUD (6X32) This part replaces 92900-06032-0B.

92900-06032-0E

$2.45

18

BOLT 2, STUD (6X32)

92900-06032-0E

$2.45

19

SCREW, PAN (5X8)

93500-05008-0G

$1.49

20

SCREW, PAN (5X25)

93500-05025-0G

$1.49

21

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

22

PIN A, DOWEL (12X20)

94301-12200

$2.29

23

SPARK PLUG (DPR7EA-9) (NGK) | (Optional).

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO) | (Optional).

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK)

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO)

98069-58926

$2.54

23

SPARK PLUG (DPR9EA-9) (NGK) | (Optional).

98069-59916

$2.62

23

SPARK PLUG (X27EPR-U9) (DENSO) | (Optional).

98069-59926

$2.54
