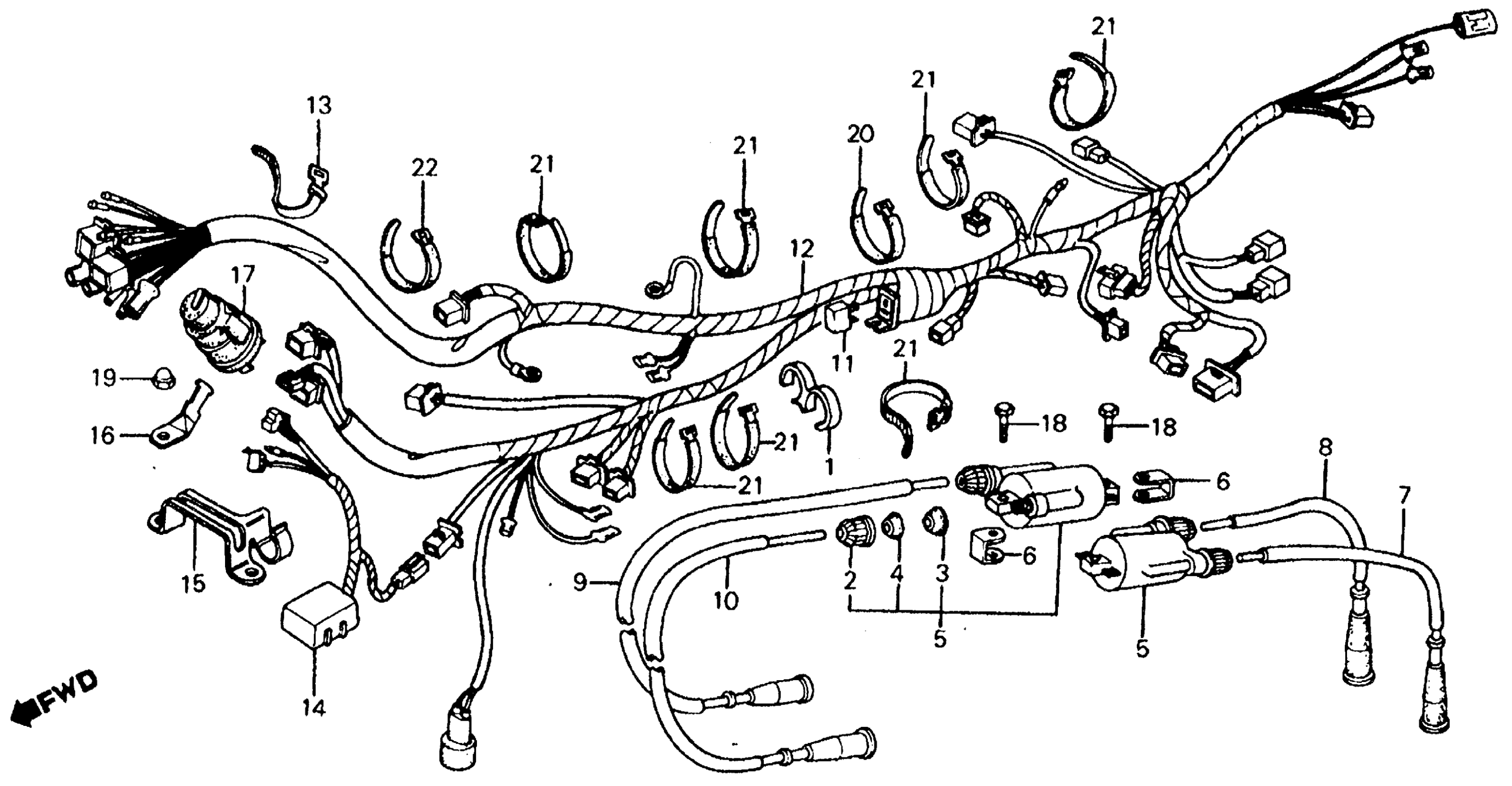

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 WIRE HARNESS + IGNITION COIL 82 Diagram

#

Description
Price

1

CLAMP, BREATHER TUBE

17359-MB0-000

Unavailable

2

CAP, SCREW

30501-428-003

Unavailable

3

SEAL, RUBBER

30502-428-003

$1.49

4

WASHER, CAP

30503-428-003

$1.52

5

COIL, IGNITION This part replaces 30506-MA6-003.

30510-MA6-013

$168.34

5

COIL, IGNITION This part replaces 30510-MA6-003.

30510-MA6-013

$168.34

5

COIL, IGNITION

30510-MA6-013

$168.34

6

SPACER, IGNITION COIL

30520-MB0-000

Unavailable

7

CAP 1, COIL WIRE (NOT AVAILABLE)

30731-MB0-153

Unavailable

8

CAP 2, COIL WIRE (NOT AVAILABLE)

30732-MB0-153

Unavailable

9

CAP 3, COIL WIRE (NOT AVAILABLE)

30733-MB0-153

Unavailable

10

CAP 4, COIL WIRE (NOT AVAILABLE)

30734-MB0-153

Unavailable

11

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

11

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

12

WIRE HARNESS (NOT AVAILABLE)

32100-MB0-000

Unavailable

13

BAND B1, CABLE

32161-404-000

$2.23

14

SENSOR, HEADLIGHT

35540-MB0-008

Unavailable

15

STAY, HEADLIGHT SENSOR (NOT AVAILABLE)

35541-MB0-000

Unavailable

16

STAY, HEADLIGHT SENSOR (NOT AVAILABLE)

35541-MB0-000

Unavailable

16

STAY, HEADLIGHT SENSOR (NOT AVAILABLE) This part replaces 35542-MB0-000.

35541-MB0-000

Unavailable

17

RELAY, MAIN

36130-MC7-003

Unavailable

18

BOLT, HEX. (6X25) This part replaces 92000-06025-4J.

92101-06025-4J

$1.49

18

BOLT, HEX. (6X25)

92101-06025-4J

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

BAND B1, CABLE

32161-404-000

$2.23

20

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

21

BAND A2, CABLE

95014-61200

$2.33

22

BAND A3, CABLE

95014-61300

$1.97
