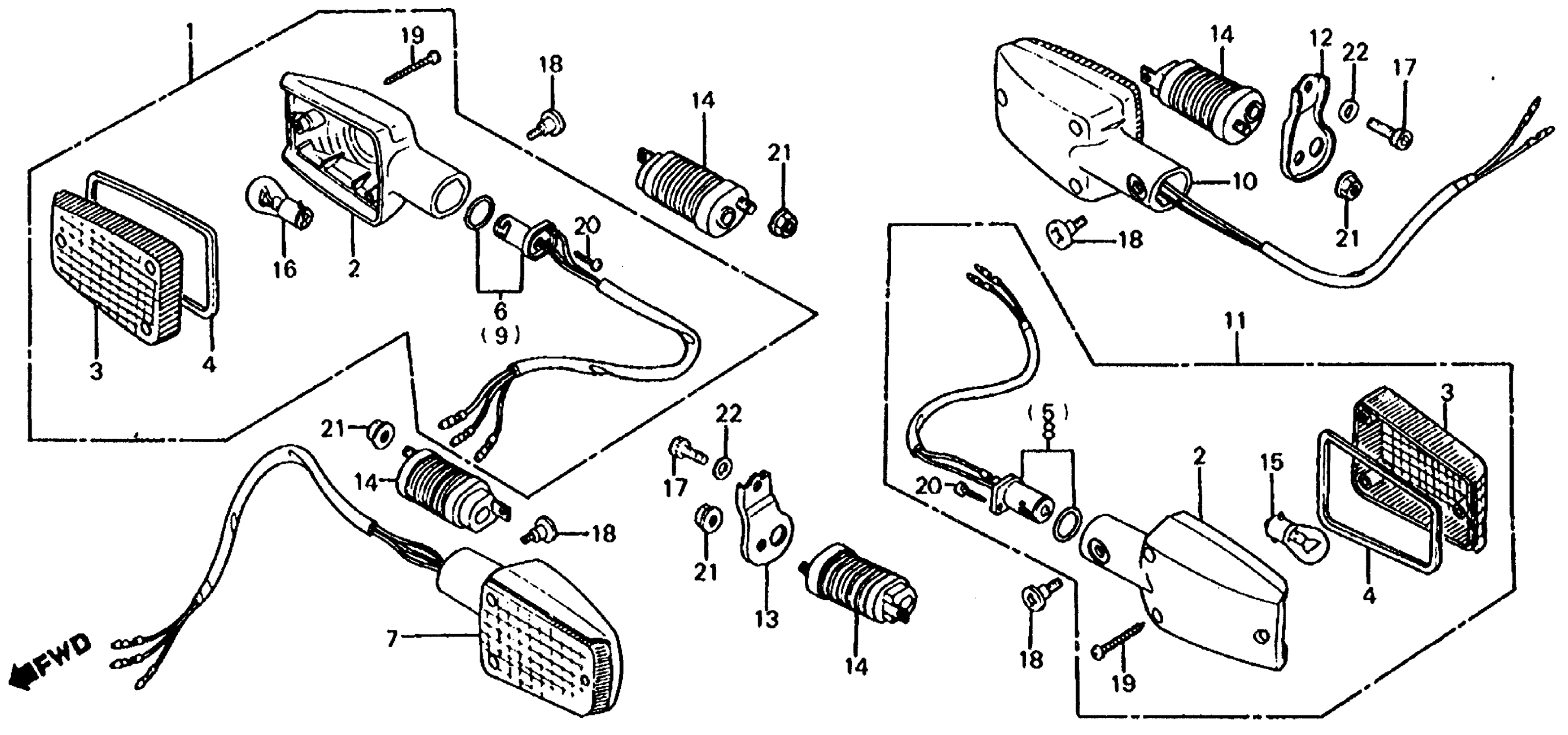

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (12V 23/8W) (NOT AVAILABLE)

33400-MB0-671

Unavailable

2

BASE, TURN SIGNAL

33401-MA6-621

Unavailable

3

LENS, TURN SIGNAL

33402-MA6-013

Unavailable

4

GASKET, LENS

33406-MA6-003

Unavailable

5

SOCKET, R. TURN SIGNAL

33410-MA6-621

Unavailable

6

SOCKET, R. TURN SIGNAL

33410-MB0-671

Unavailable

7

TURN SIGNAL ASSY., L. FR. (12V 23/8W) (NOT AVAILABLE)

33450-MB0-671

Unavailable

8

SOCKET, L. TURN SIGNAL

33460-MA6-621

Unavailable

9

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33460-MB0-671

Unavailable

10

TURN SIGNAL ASSY., R. RR. (12V 23W) This part replaces 33600-MB0-671.

33600-MB0-679

Unavailable

10

TURN SIGNAL ASSY., R. RR. (12V 23W)

33600-MB0-679

Unavailable

10

TURN SIGNAL ASSY., R. RR. (12V 23W) This part replaces 33650-MB0-671.

33600-MB0-679

Unavailable

11

TURN SIGNAL ASSY., R. RR. (12V 23W)

33600-MB0-679

Unavailable

11

TURN SIGNAL ASSY., R. RR. (12V 23W) This part replaces 33650-MB0-671.

33600-MB0-679

Unavailable

12

BRACKET, R. RR. TURN SIGNAL

33670-MB0-000

Unavailable

13

BRACKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33680-MB0-000

$14.98

14

STAY, TURN SIGNAL This part replaces 33690-MB0-003.

33690-MZ1-000

$34.16

14

STAY, TURN SIGNAL

33690-MZ1-000

$34.16

15

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

16

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

17

BOLT, SOCKET (8X16)

90115-463-000

$8.94

18

SCREW, SPECIAL (6X12) This part replaces 90380-MA6-000.

90380-MA6-010

$3.01

18

SCREW, SPECIAL (6X12)

90380-MA6-010

$3.01

19

SCREW, TAPPING (3X25)

91901-MA6-000

Unavailable

20

SCREW, TAPPING (3X12)

93901-32320

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49
