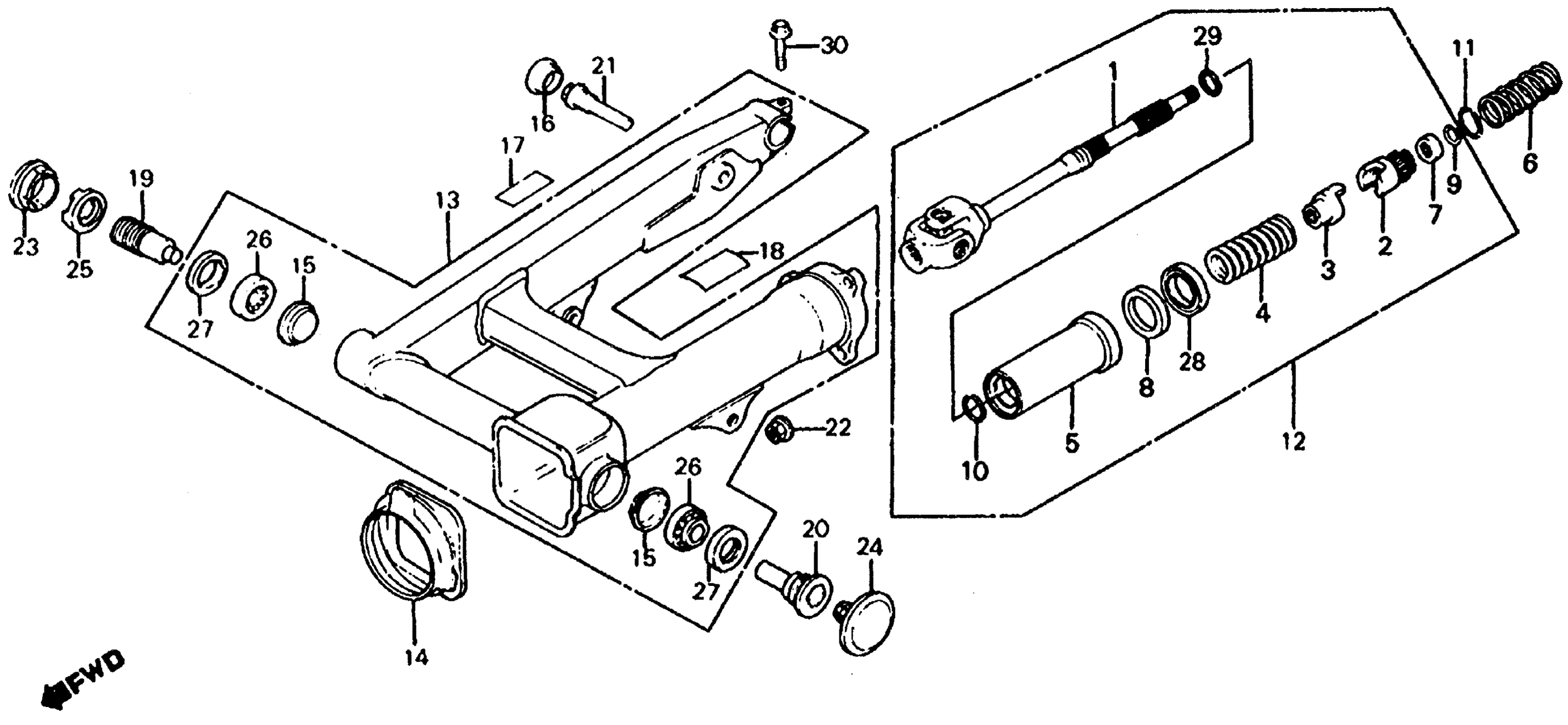

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 SWINGARM Diagram

#

Description
Price

1

JOINT, YOKE (YAMADA)

40200-MB0-013

Unavailable

2

CAM, DAMPER (NOT AVAILABLE)

40211-MB0-000

Unavailable

3

LIFTER, DAMPER

40212-MB0-000

Unavailable

4

SPRING, DAMPER CAM

40213-MB0-000

Unavailable

5

COVER, DAMPER (NOT AVAILABLE)

40214-MB0-000

Unavailable

6

SPRING, PROPELLER SHAFT

40215-MB0-003

Unavailable

7

STOPPER, SPRING (NOT AVAILABLE)

40216-MB0-000

Unavailable

8

GUIDE, OIL SEAL (NOT AVAILABLE)

40217-MB0-000

$11.16

8

GUIDE, OIL SEAL

40217-MB0-010

Unavailable

9

RING, SPRING STOPPER (NOT AVAILABLE)

40218-MB0-000

Unavailable

10

RING, DAMPER COVER

40219-MB0-000

$3.48

11

RING, STOPPER

40221-MB0-000

$4.53

12

SHAFT ASSY., DRIVE

40250-MB0-010

Unavailable

13

SWINGARM ASSY., RR. *NH1* (BLACK)

52100-MB0-000ZA

Unavailable

14

BOOT, JOINT

52105-MB0-000

Unavailable

15

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

16

CAP, SWINGARM SIDE

52120-MB0-000

Unavailable

17

LABEL, MUFFLER CAUTION

87504-463-670

Unavailable

18

LABEL, TIRE CAUTION

87505-MB0-670

Unavailable

19

BOLT, R. RR. SWINGARM PIVOT

90121-MB0-000

Unavailable

20

BOLT, L. RR. SWINGARM PIVOT

90122-MB0-000

Unavailable

21

BOLT, PANEL STOPPER This part replaces 901A5-MB0-000.

90158-MB0-020

Unavailable

21

BOLT, PANEL STOPPER This part replaces 90158-MB0-010.

90158-MB0-020

Unavailable

21

BOLT, PANEL STOPPER

90158-MB0-020

Unavailable

22

NUT, HEX. (10MM)

90308-357-000

$4.85

23

CAP, R. LOCK NUT

90312-MB0-000

Unavailable

24

CAP, L. LOCK NUT

90313-MB0-000

Unavailable

25

NUT, RR. SWINGARM PIVOT

90355-469-000

$17.54

26

BEARING (30203J)

91066-MC7-004

Unavailable

27

DUST SEAL (26X40X5)

91268-463-003

$6.61

28

OIL SEAL (47X56X7) This part replaces 91271-MB0-000.

91271-MB0-013

$12.43

28

OIL SEAL (47X56X7) This part replaces 91271-MB0-003.

91271-MB0-013

$12.43

28

OIL SEAL (47X56X7) This part replaces 91271-MB0-004.

91271-MB0-013

$12.43

28

OIL SEAL (47X56X7)

91271-MB0-013

$12.43

28

OIL SEAL (47X56X7) This part replaces 91271-MK3-003.

91271-MB0-013

$12.43

29

O-RING (22.5X2.4)

91360-VD6-003

$1.49

29

O-RING (22.5X2.4) This part replaces 91361-MB0-003.

91360-VD6-003

$1.49

30

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

30

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
