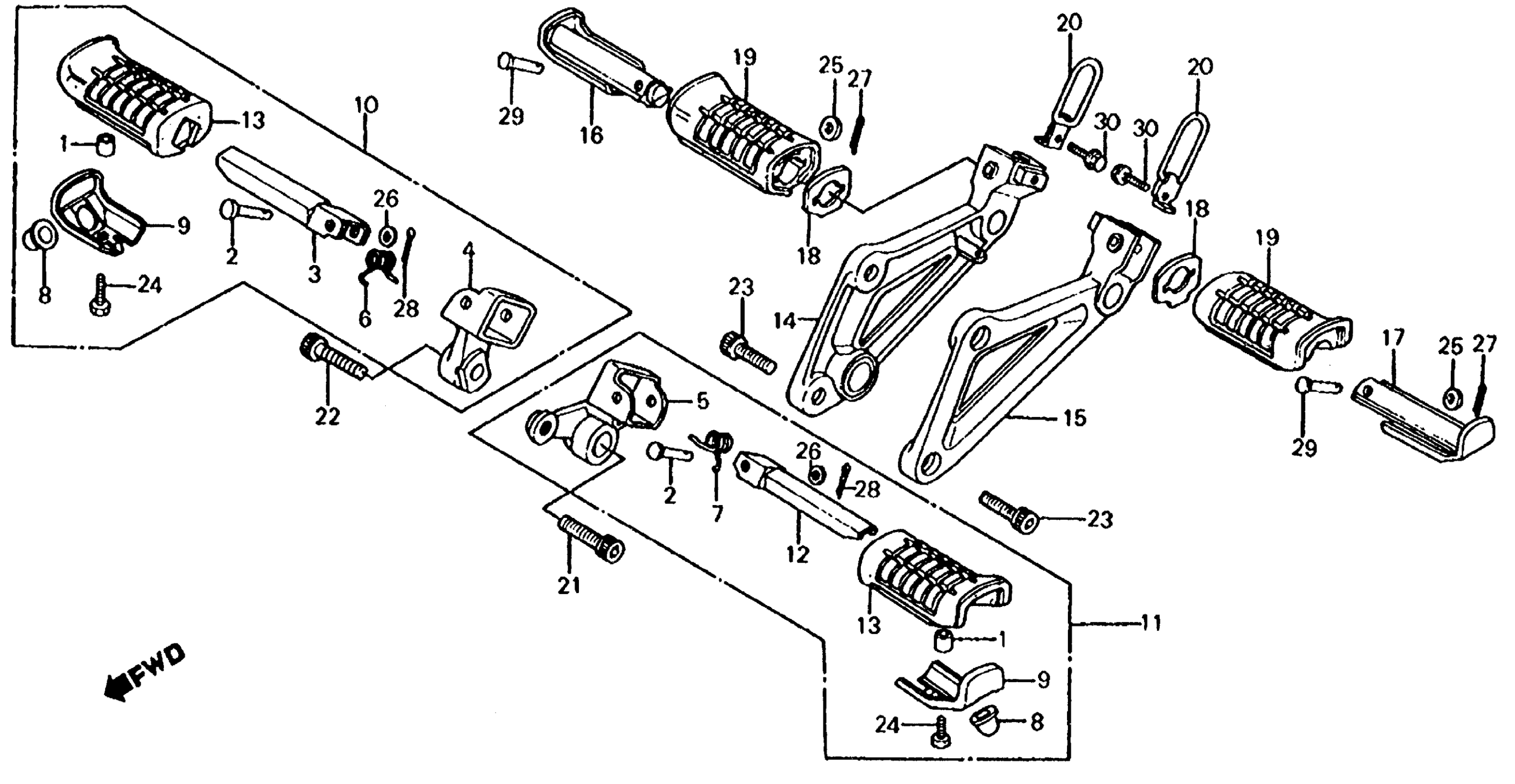

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 STEP Diagram

#

Description
Price

1

COLLAR, CHAIN CASE

40515-413-000

$2.92

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

BAR, R. FOOTPEG (NOT AVAILABLE)

50612-MB0-000

Unavailable

4

BRACKET, R. STEP

50613-MB0-000

Unavailable

5

BRACKET, L. STEP

50614-MB0-000

Unavailable

6

SPRING, STEP RETURN

50616-MB0-000

Unavailable

7

SPRING, STEP RETURN

50617-195-000

Unavailable

8

SLIDER, STEP

50618-MB1-000

$4.13

9

STOPPER, STEP RUBBER

50619-MB0-000

Unavailable

10

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MB0-000

Unavailable

11

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MB0-000

Unavailable

12

BAR, L. FOOTPEG (NOT AVAILABLE)

50642-MB0-000

Unavailable

13

RUBBER, MAIN FOOTPEG

50661-MB0-000

Unavailable

14

HOLDER, R. PILLION STEP

50680-MB0-000

Unavailable

15

HOLDER, L. PILLION STEP

50690-MB0-000

Unavailable

16

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-MB0-000

Unavailable

17

BAR, L. PILLION FOOTPEG

50712-MB0-000

Unavailable

18

WASHER, PILLION FOOTPEG

50714-MB0-000

Unavailable

19

RUBBER, PILLION FOOTPEG This part replaces 50715-MB0-000.

50715-MJ1-000

Unavailable

19

RUBBER, PILLION FOOTPEG

50715-MJ1-000

Unavailable

20

BAR, STEP HOLDER

50740-MB0-000

Unavailable

21

BOLT, SOCKET (10X20) (NOT AVAILABLE)

90106-MB0-000

Unavailable

22

BOLT, SOCKET (10X35) (NOT AVAILABLE)

90107-MB0-000

Unavailable

23

BOLT, SOCKET

90109-MB0-000

Unavailable

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, PLAIN (8MM)

94102-08000

$1.49

27

PIN, COTTER (1.6X10)

94201-16100

$1.49

28

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

28

PIN, COTTER (1.6X25)

94201-16250

$1.49

29

PIN C, PILLION FOOTPEG

95015-83000

$2.41

30

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

30

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
