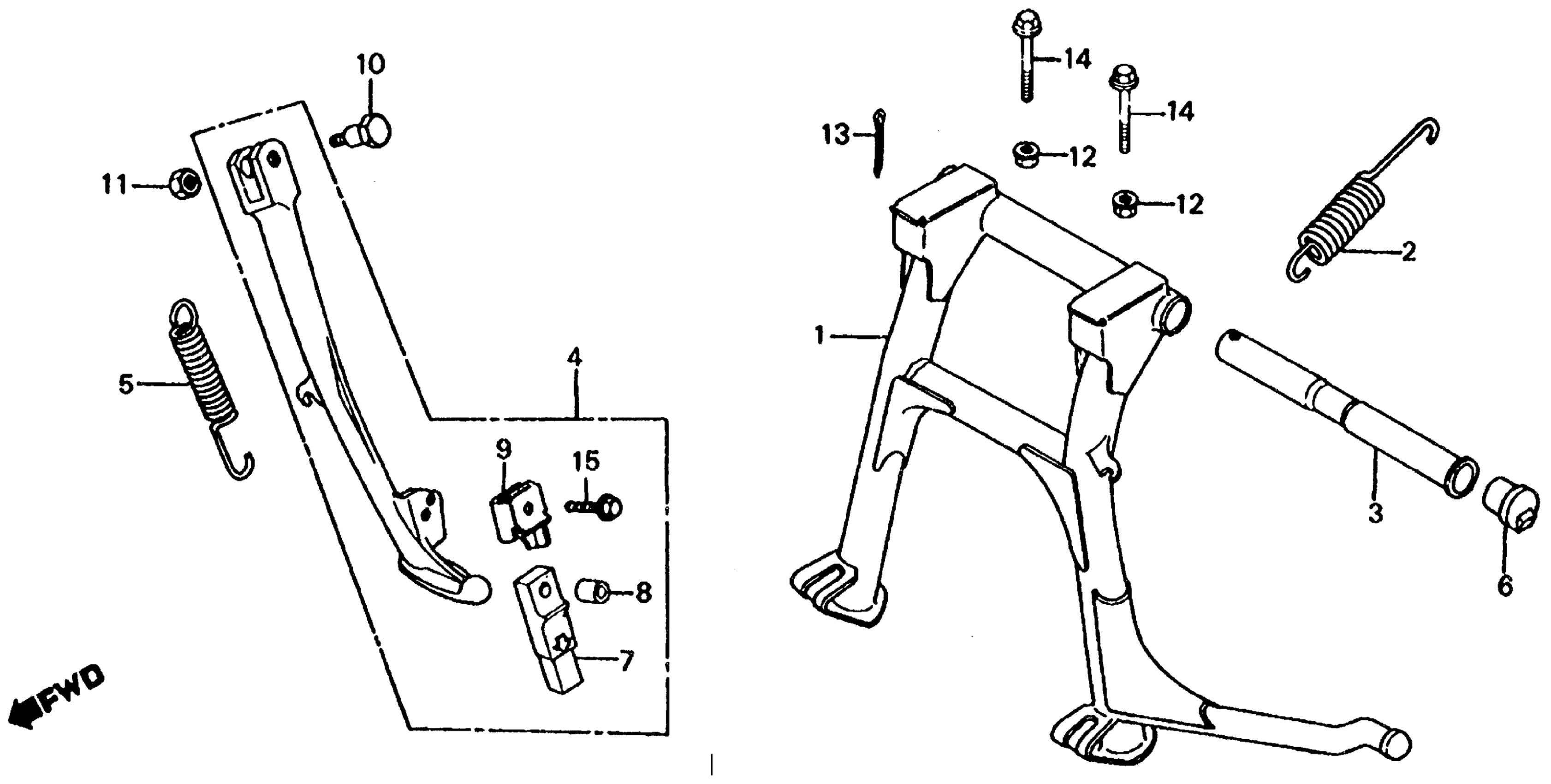

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 STAND Diagram

STAND, MAIN (NOT AVAILABLE)

50500-MB0-000

Unavailable

SPRING, MAIN STAND This part replaces 50522-MB0-000.

50522-ML4-000

Unavailable

PIPE, MAIN STAND PIVOT

50526-MB0-000

Unavailable

BAR ASSY., SIDE STAND This part replaces 50540-MB0-000.

50540-MB0-010

Unavailable

BAR ASSY., SIDE STAND

50540-MB0-010

Unavailable

SPRING, SIDE STAND

50541-MB0-000

$11.75

RUBBER, STAND

50548-356-700

$10.50

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

BRACKET, SIDE STAND RUBBER

50574-MB0-000

Unavailable

BOLT, SIDE STAND PIVOT

90108-MB0-000

Unavailable

NUT, HEX. (10MM)

94002-10070-0S

$3.17

NUT, FLANGE (6MM)

94050-06080

$1.49

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

PIN, COTTER (2.5MM)

94201-25300

$1.49

BOLT, FLANGE (6X40) This part replaces 95700-06040-08.

95701-06040-08

$1.80

BOLT, FLANGE (6X40)

95701-06040-08

$1.80

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
