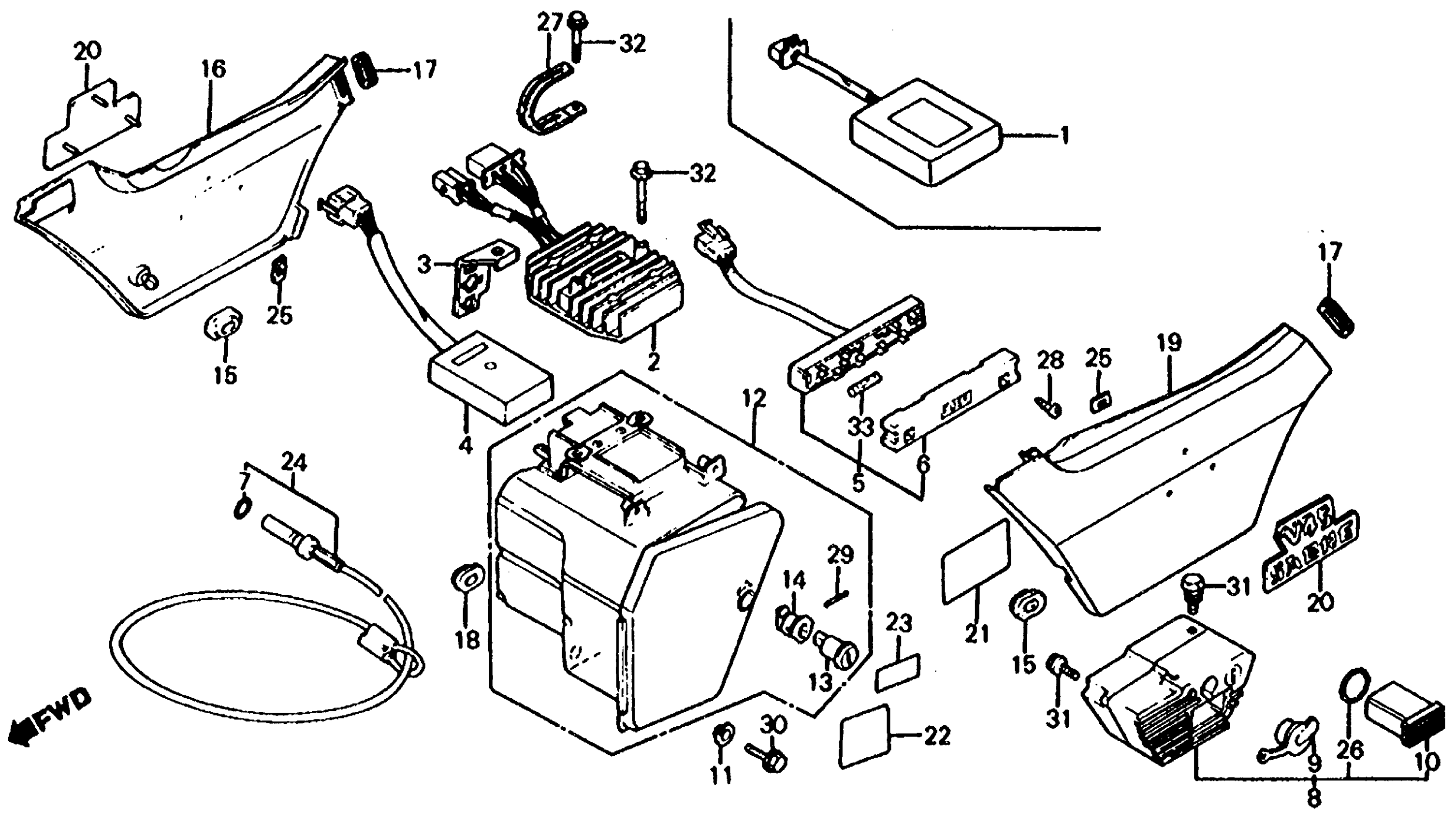

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 SIDE COVER Diagram

#

Description
Price

2

RECTIFIER ASSY., REGULATE This part replaces 31600-MB0-008.

31600-MB3-670

Unavailable

2

RECTIFIER ASSY., REGULATE

31600-MB3-670

Unavailable

4

CANCEL UNIT, TURN SIGNAL

35220-MB0-000

Unavailable

5

BOX ASSY., FUSE (DAIICHI)

38200-MB0-005

Unavailable

6

COVER, FUSE BOX

38202-MB0-000

Unavailable

7

O-RING (11.8X2.4)

51996-SA5-800

$2.02

8

ALARM UNIT, LOCKING

53610-MB0-007

Unavailable

9

CAP, DUST

53611-MB0-007

Unavailable

10

CASE, BATTERY

53612-MB0-007

Unavailable

11

COLLAR, FR. FENDER

61105-MA3-000

$3.80

12

BOX ASSY., TOOL

83500-MB0-000

Unavailable

13

BODY, KEY

83507-422-000

$3.53

14

STOPPER, KEY BODY

83508-KBG-000

$2.90

14

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

15

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

16

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83600-MB0-670ZA

Unavailable

16

COVER, R. SIDE *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

83600-MB0-670ZB

Unavailable

17

GROMMET A, SIDE COVER

83601-MB0-000

$4.53

18

RUBBER B, BATTERY TRAY MOUNT (NOT AVAILABLE)

83615-303-000

Unavailable

19

COVER, L. SIDE *NH1* (BLACK) (NOT AVAILABLE)

83700-MB0-670ZA

Unavailable

19

COVER, L. SIDE *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

83700-MB0-670ZB

Unavailable

20

EMBLEM, SIDE COVER (V45 SABRE) *A73* (TYPE1) (GOLD) This part replaces 87127-MB0-670.

87127-MB0-970ZA

Unavailable

20

EMBLEM, SIDE COVER (V45 SABRE) *A73* (TYPE1) (GOLD)

87127-MB0-970ZA

Unavailable

21

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

22

MARK, ACCESSORIES & LOADING CAUTION (NOT AVAILABLE)

87512-MA4-670

Unavailable

23

LABEL, RR. (NOT AVAILABLE)

87518-MB0-670

Unavailable

24

CABLE, SECURITY LOCKING This part replaces 88800-MB0-017.

88800-MB0-027

Unavailable

24

CABLE, SECURITY LOCKING

88800-MB0-027

Unavailable

25

NUT, SPEED (3MM)

90315-504-000

$3.21

26

O-RING (24.5X2) (ARAI)

91354-SA5-952

Unavailable

27

CLAMP

91403-663-000

Unavailable

28

SCREW, TAPPING (4X12)

93903-14320

$1.49

29

PIN, SPRING (2X14)

94305-20141

$1.49

30

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

30

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

31

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

31

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

32

BOLT, FLANGE (6X35) This part replaces 95700-06035-08.

95701-06035-08

$1.79

32

BOLT, FLANGE (6X35)

95701-06035-08

$1.79

33

FUSE B (15A)

98200-21500

$1.49
