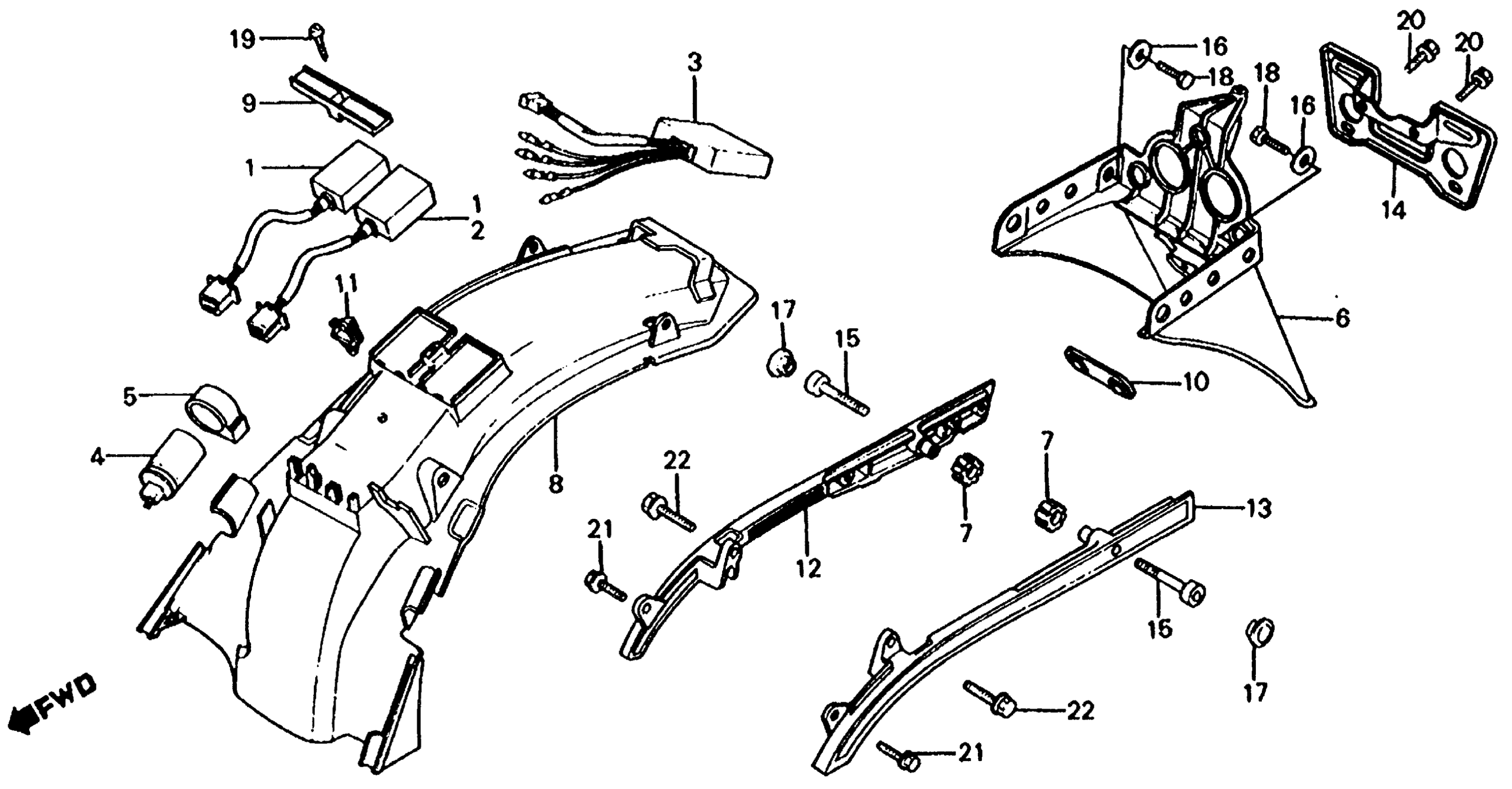

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 REAR FENDER + SPARK UNIT Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (DENSO) (NOT AVAILABLE)

30400-MB0-004

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE)

30400-MB0-005

Unavailable

3

SENSOR, STOP & TAILLIGHT

35550-MB0-008

Unavailable

4

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MB0-004.

38301-KK9-952

$67.94

4

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

5

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

6

FENDER A, RR. (NOT AVAILABLE)

80100-MB0-000

Unavailable

7

SPACER, RR. FENDER

80101-MB0-000

Unavailable

8

FENDER B, RR.

80105-MB0-000

Unavailable

9

HOLDER, IGNITOR

80106-MB0-000

Unavailable

10

PLATE, RR. FENDER

80110-MB0-000

Unavailable

11

CLAMP, CABLE

80110-147-000

$2.64

12

GRIP, R. SIDE (NOT AVAILABLE) This part replaces 84110-MB0-000.

84110-MB0-700

Unavailable

12

GRIP, R. SIDE (NOT AVAILABLE)

84110-MB0-700

Unavailable

13

GRIP, L. SIDE (NOT AVAILABLE) This part replaces 84120-MB0-000.

84120-MB0-700

Unavailable

13

GRIP, L. SIDE (NOT AVAILABLE)

84120-MB0-700

Unavailable

14

BRACKET, LICENSE PLATE

84701-MB0-670

Unavailable

15

BOLT, HEX. SOCKET (8X50)

90187-MB0-000

Unavailable

16

WASHER (6MM) (NOT AVAILABLE)

90506-634-000

Unavailable

17

CAP, SOCKET BOLT (8MM)

91456-MB0-000

Unavailable

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0H.

92101-06016-0H

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0H.

92101-06016-0H

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0H

$1.49

19

SCREW, TAPPING (4X12)

93903-14320

$1.49

20

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

20

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

21

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

21

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

21

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-08.

95701-08025-08

$1.49

22

BOLT, FLANGE (8X25) This part replaces 95700-08025-18.

95701-08025-08

$1.49

22

BOLT, FLANGE (8X25)

95701-08025-08

$1.49
