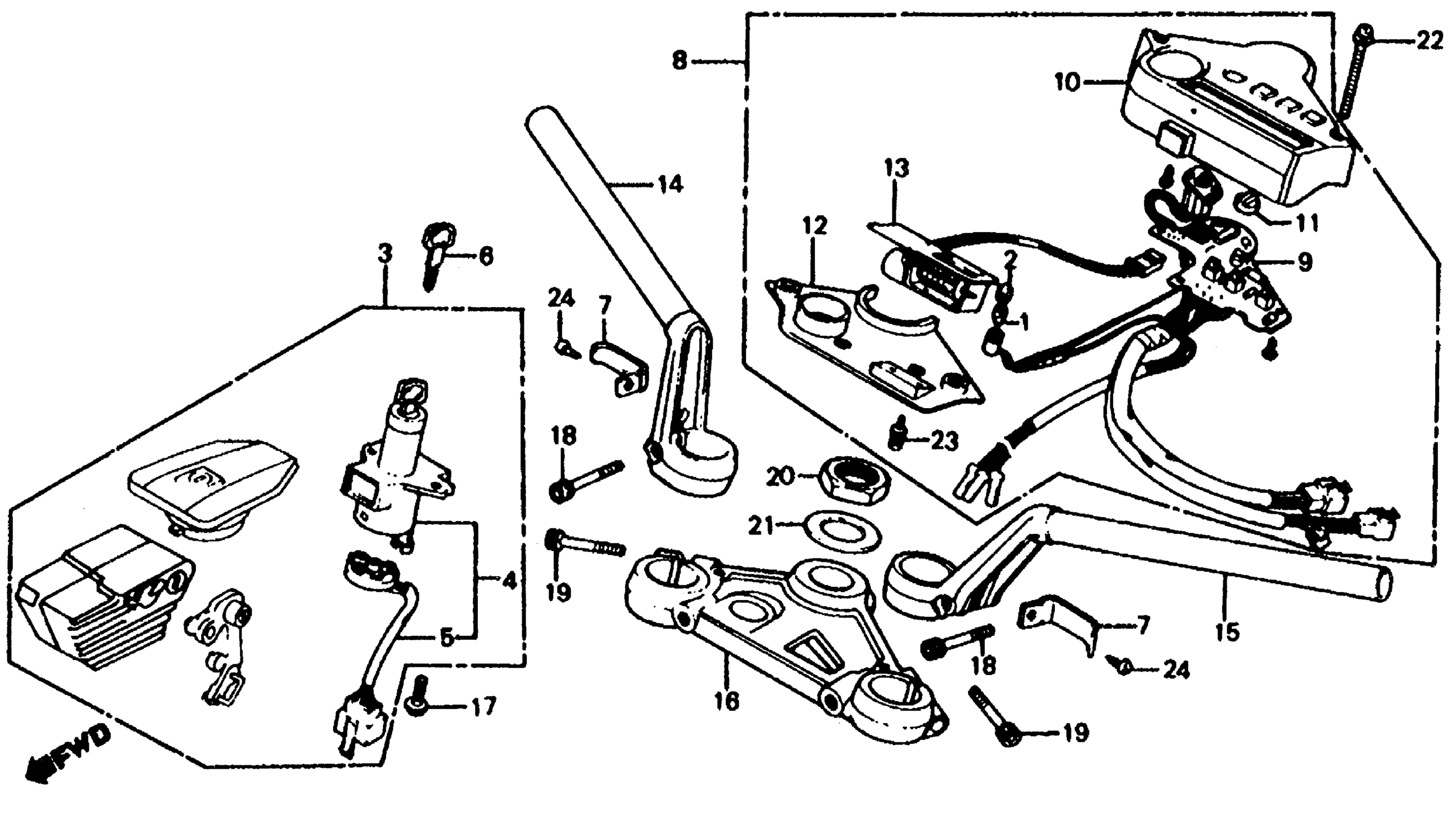

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

2

CAP, BULB (NOT AVAILABLE)

34909-MB0-008

Unavailable

3

LOCK SET

35010-MB0-000

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK

35100-MB0-007

Unavailable

5

BASE, CONTACT This part replaces 35101-MA6-007.

35101-MC5-000

Unavailable

5

BASE, CONTACT

35101-MC5-000

Unavailable

6

KEY, BLANK (TYPE1) | (Optional).

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

6

KEY, BLANK (TYPE2) | (Optional).

35122-KW3-771

$10.10

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

7

CLIP, WIRE

35205-MB0-000

Unavailable

8

ODOMETER ASSY. (MPH)

37210-MB0-671

Unavailable

9

CIRCUIT ASSY., PRINT

37212-MB0-671

Unavailable

10

CASE, ODOMETER

37213-MB0-671

Unavailable

11

KNOB, CLOCK SWITCH

37214-MB0-008

Unavailable

12

PLATE, ODOMETER BASE

37215-MB0-008

Unavailable

13

ODOMETER, TOTAL This part replaces 37216-MB0-671.

37216-MB0-772

Unavailable

14

HANDLEBAR, R.

53100-MB0-670

Unavailable

15

HANDLEBAR, L.

53150-MB0-000

Unavailable

15

HANDLEBAR, L. This part replaces 53150-MB0-670.

53150-MB0-000

Unavailable

16

BRIDGE, FORK TOP

53230-MB0-000

Unavailable

17

BOLT, FLANGE (8X19)

90104-MJ1-000

$6.31

17

BOLT, FLANGE (8X19) This part replaces 90105-MA6-000.

90104-MJ1-000

$6.31

18

BOLT, SOCKET (8X34)

90112-MB0-000

Unavailable

19

BOLT, SOCKET (7X38)

90151-MB0-000

Unavailable

20

NUT, STEERING STEM

90304-425-000

$9.69

21

WASHER, STEERING STEM

90503-425-000

$4.21

22

SCREW-WASHER (5X45)

93891-05045-07

$1.49

22

SCREW-WASHER (5X45) This part replaces 93891-05045-17.

93891-05045-07

$1.49

23

SCREW-WASHER (4X10)

93893-04010-00

$1.49

24

SCREW, TAPPING (4X6) (NOT AVAILABLE)

93901-34080

Unavailable
