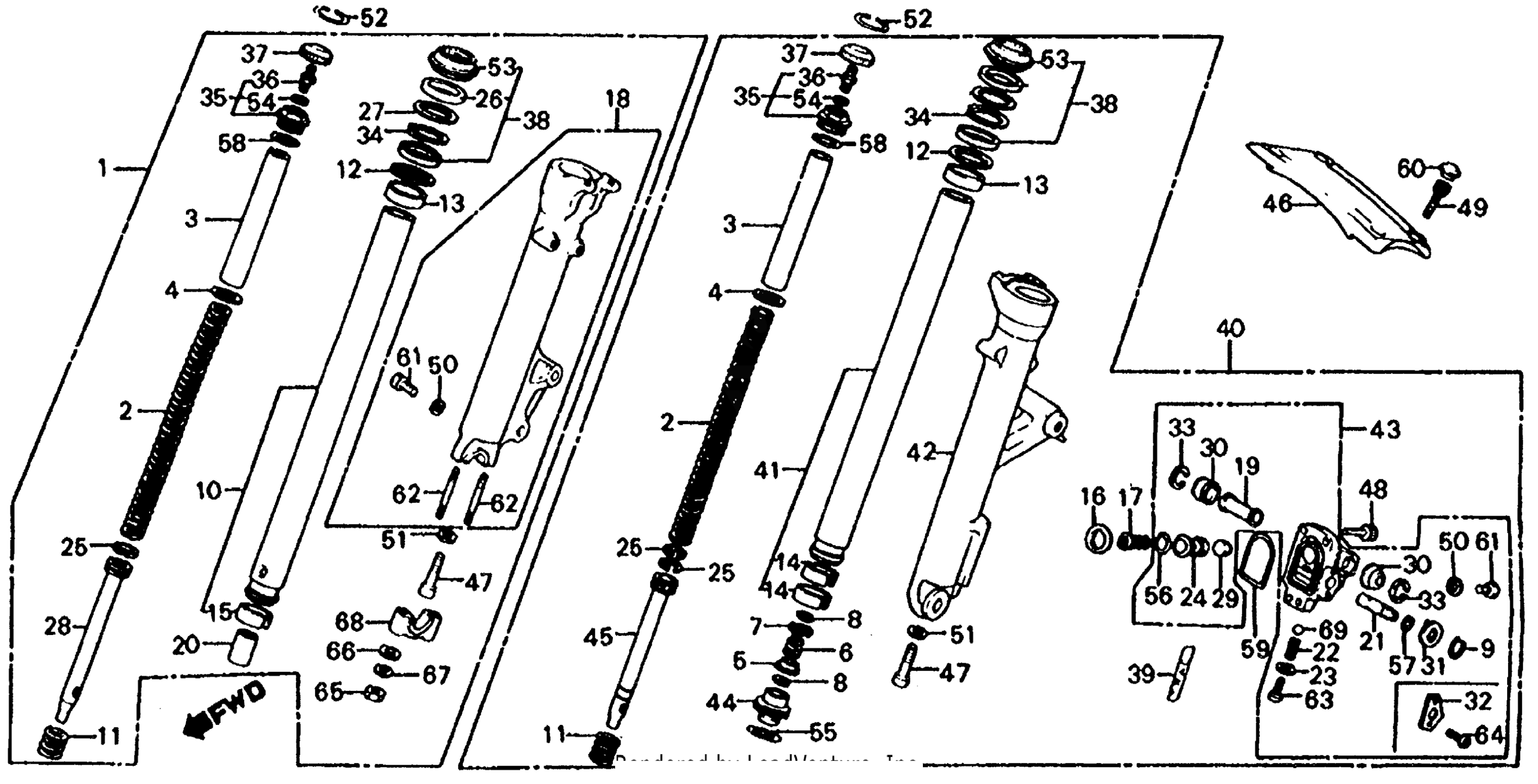

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 FRONT SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., R. FR.

51400-MB0-672

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-MB0-003

Unavailable

3

COLLAR, SPRING (NOT AVAILABLE)

51402-MA0-771

Unavailable

4

SEAT, SPRING

51403-MA0-771

$5.20

5

VALVE, OIL LOCK (NOT AVAILABLE)

51403-MA6-003

Unavailable

6

SPRING, OIL LOCK VALVE (NOT AVAILABLE)

51404-MA6-003

Unavailable

7

SEAT, SPRING

51405-MA6-003

Unavailable

8

RING, STOPPER

51405-MC7-003

$2.39

10

PIPE, FR. FORK (NOT AVAILABLE)

51410-MB0-003

Unavailable

11

SPRING, FR. FORK REBOUND (NOT AVAILABLE)

51412-ME1-671

Unavailable

12

RING, BACK-UP

51412-461-003

$7.04

12

RING, BACK-UP This part replaces 51412-461-305.

51412-461-003

$7.04

13

BUSH, GUIDE

51414-MN4-003

$13.34

13

BUSH, GUIDE This part replaces 51414-461-003.

51414-MN4-003

$13.34

14

BUSH, SLIDER This part replaces 51415-MC5-003.

51415-MC5-013

Unavailable

14

BUSH, SLIDER

51415-MC5-013

Unavailable

15

BUSH, SLIDER

51415-461-003

$20.08

16

GASKET This part replaces 51417-ME1-671.

51417-MJ0-013

Unavailable

16

GASKET

51417-MJ0-013

Unavailable

17

SPRING, PISTON (NOT AVAILABLE)

51418-ME1-671

Unavailable

18

CASE, R. (LOWER)

51421-MB0-003

Unavailable

19

COLLAR, PISTON

51423-MC7-003

Unavailable

20

PIECE, OIL LOCK (NOT AVAILABLE)

51432-371-003

Unavailable

21

ROD, ADJUSTER

51433-MB0-003

Unavailable

22

SPRING, CLICK (NOT AVAILABLE)

51434-MC7-003

Unavailable

23

WASHER, SPECIAL (5MM)

51435-MC7-003

$2.92

24

PISTON (NOT AVAILABLE)

51436-ME1-671

Unavailable

25

RING, PISTON

51437-MA0-771

Unavailable

28

PIPE, SEAT

51440-MB0-003

Unavailable

29

RUBBER, STOPPER

51441-MC7-003

Unavailable

30

BOOT, PISTON CASE

51442-MC7-003

$10.65

32

WASHER, L. SIDE (NOT AVAILABLE)

51444-MC7-013

Unavailable

33

HOLDER, BOOT

51445-MC7-003

$6.48

34

CIRCLIP (INNER) (50MM)

51447-461-003

$4.53

35

BOLT ASSY., FR. FORK This part replaces 51450-MB0-003.

51450-MB0-013

Unavailable

35

BOLT ASSY., FR. FORK

51450-MB0-013

Unavailable

36

VALVE, AIR (SHOWA)

51456-469-013

$33.69

37

CAP ASSY., VALVE (NOT AVAILABLE)

51457-MB0-003

Unavailable

38

SEAL SET, FR. FORK

51490-KAZ-003

$33.45

38

SEAL SET, FR. FORK This part replaces 51490-MC5-305.

51490-KAZ-003

$33.45

38

SEAL SET, FR. FORK This part replaces 51490-MC5-315.

51490-KAZ-003

$33.45

39

MARK, FR. FORK

51496-MC7-670

$4.99

40

SHOCK ABSORBER, L. FR.

51500-MB0-671

Unavailable

41

PIPE, L. FR. FORK (NOT AVAILABLE)

51510-MB0-003

Unavailable

42

CASE, L. (LOWER)

51521-MB0-003

Unavailable

43

CASE ASSY., L. PISTON (NOT AVAILABLE)

51530-MB0-003

Unavailable

44

PIECE B, OIL LOCK (NOT AVAILABLE)

51532-ME1-671

Unavailable

45

PIPE B, SEAT

51540-MB0-003

Unavailable

46

STABILIZER, FR. FORK

53240-MB0-000

Unavailable

47

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-000.

90116-383-721

$5.13

47

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

47

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

48

BOLT, SOCKET (6X18) This part replaces 90118-MC7-003.

96700-06018-17

Unavailable

48

BOLT, SOCKET (6X18)

96700-06018-17

Unavailable

49

BOLT, SOCKET (8X17) This part replaces 90153-MB0-000.

90153-MB0-405

$3.38

49

BOLT, SOCKET (8X17)

90153-MB0-405

$3.38

50

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

51

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

52

RING, SNAP (NOT AVAILABLE)

90601-438-730

Unavailable

53

DUST SEAL

91254-KAZ-003

$17.00

53

DUST SEAL This part replaces 91254-461-003.

91254-KAZ-003

$17.00

54

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

54

O-RING (5.8X1.9)

91305-323-000

$2.92

54

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

55

O-RING E (33.5X2) (NOT AVAILABLE)

91306-MC7-003

$2.54

56

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

56

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

57

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

57

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

58

O-RING (29X2.4)

91344-PC9-004

$3.51

58

O-RING (29X2.4) (NOK) This part replaces 91356-371-000.

91344-PC9-004

$3.51

59

O-RING (49.4X3.1)

91308-MJ0-003

$3.58

59

O-RING (49.4X3.1) This part replaces 91399-MB0-003.

91308-MJ0-003

$3.58

60

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

60

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

61

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

61

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

62

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

62

BOLT, STUD (8X50)

92900-08028-3B

$1.59

63

SCREW, PAN (5X10)

93500-05010-0A

$1.49

63

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

63

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

64

SCREW, FLAT (4X10) (NOT AVAILABLE)

93600-04010-1B

Unavailable

65

NUT, HEX. (8MM)

94030-08000

$1.49

66

WASHER, PLAIN (8MM)

94101-08000

$1.49

67

WASHER, SPRING (8MM)

94111-08000

$1.49

68

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

69

BALL, STEEL (#5) (5/32)

96211-05000

$1.49
