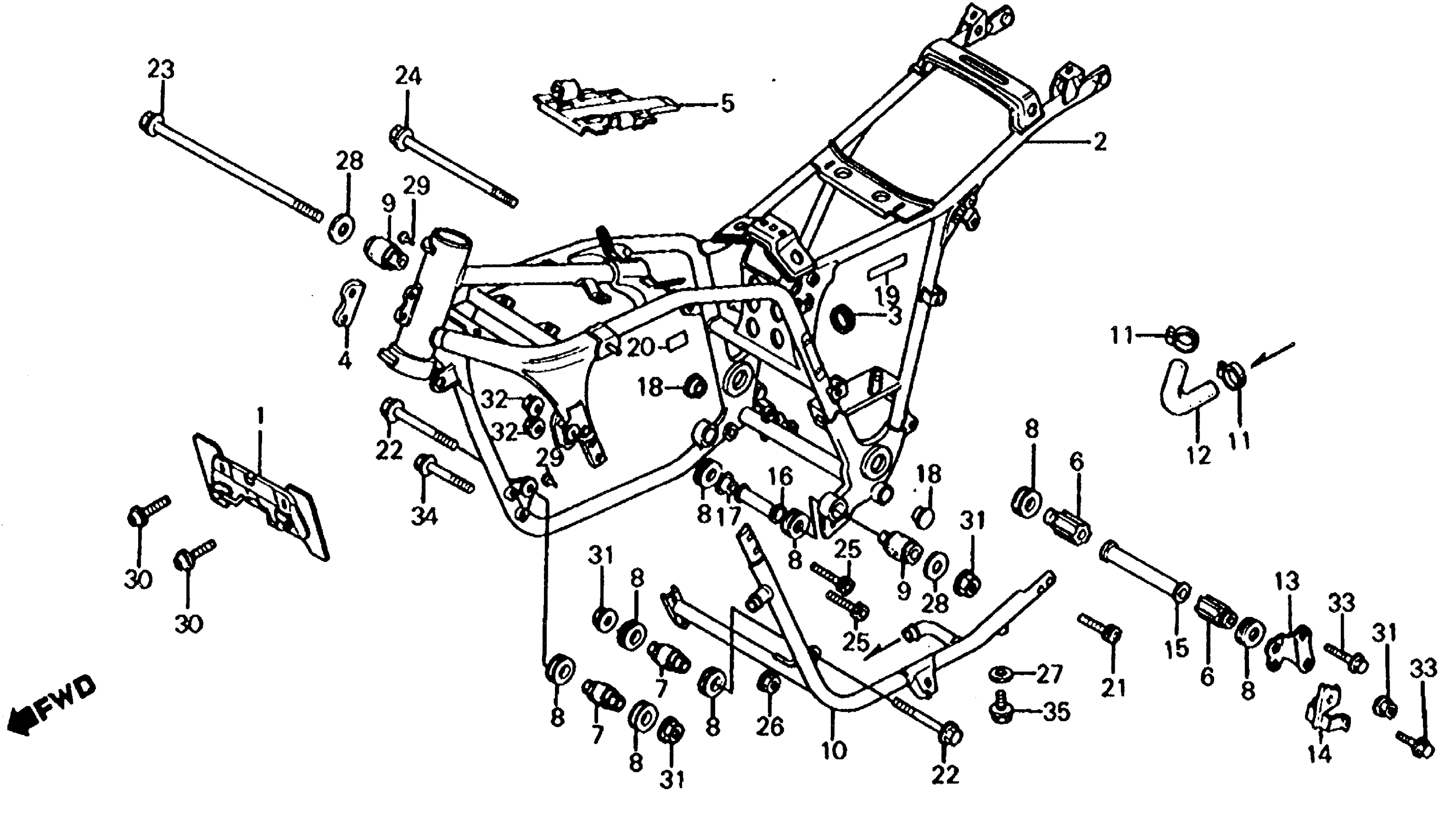

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 FRAME Diagram

#

Description
Price

1

PLATE, CARBURETOR HEAT GUARD

19124-MB0-000

Unavailable

2

FRAME *NH1* (BLACK) This part replaces 50100-MB0-670ZA.

50200-MB0-671ZA

Unavailable

2

FRAME *NH1* (BLACK) This part replaces 50200-MB0-670ZA.

50200-MB0-671ZA

Unavailable

2

FRAME *NH1* (BLACK)

50200-MB0-671ZA

Unavailable

3

GROMMET, BREATHER TUBE

50178-MB0-000

Unavailable

4

COVER, FAIRING BRACKET

50184-MB0-000

Unavailable

5

PLATE, FUEL TANK HEAT GUARD This part replaces 50189-MB0-000.

50189-MB0-700

Unavailable

5

PLATE, FUEL TANK HEAT GUARD

50189-MB0-700

Unavailable

6

RUBBER A, MOUNTING

50201-MB0-000

Unavailable

7

RUBBER B, MOUNTING

50202-MB0-000

Unavailable

8

RUBBER C, MOUNTING This part replaces 50203-MB0-000.

50203-MB0-010

$25.10

8

RUBBER C, MOUNTING

50203-MB0-010

$25.10

9

RUBBER D, MOUNTING (NOT AVAILABLE)

50206-MB0-000

Unavailable

10

SUB-FRAME

50210-MB0-000

Unavailable

11

CLAMP, WATER HOSE

50228-MB0-000

Unavailable

12

HOSE, WATER (LOWER)

50242-MB0-000

Unavailable

13

PLATE, L. ENGINE HANGER (UPPER)

50356-MB0-000

Unavailable

14

CLAMP, WIRE

50358-MB0-000

Unavailable

15

COLLAR A, ENGINE HANGER

50361-MB0-000

Unavailable

16

COLLAR B, ENGINE HANGER

50362-MB0-000

Unavailable

17

COLLAR C, ENGINE HANGER

50363-MB0-000

Unavailable

18

CAP, MAIN STAND PIPE

50750-MB0-000

$5.90

19

LABEL, DAMPER ADJUSTER (NOT AVAILABLE)

52759-MB0-300

Unavailable

20

LABEL, BATTERY CAUTION

87506-MB0-670

Unavailable

21

BOLT, SOCKET (10X25)

90101-MB0-000

Unavailable

22

BOLT, FLANGE (10X65) This part replaces 90102-MB0-000.

90107-KN8-730

Unavailable

23

BOLT, FLANGE (10X345)

90104-MB0-000

Unavailable

24

BOLT, FLANGE (10X220)

90110-MB0-000

Unavailable

25

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

26

NUT, FLANGE (8MM)

90208-425-870

Unavailable

27

WASHER, SEALING (6MM)

90441-028-010

$2.92

28

WASHER, ENGINE HANGER

90502-MB0-000

Unavailable

29

SCREW, RIVET (1.5X5) (NOT AVAILABLE)

90841-001-000

$1.51

30

SCREW-WASHER (5X12)

93893-05012-07

$1.49

31

NUT, FLANGE (10MM)

94050-10000

$1.59

32

NUT, FLANGE (10MM)

94050-10080

$3.24

33

BOLT, FLANGE (8X16) This part replaces 95700-08016-07.

95701-08016-07

$1.80

33

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

34

BOLT, FLANGE (8X55) This part replaces 95700-08055-07.

95701-08055-07

$1.85

34

BOLT, FLANGE (8X55)

95701-08055-07

$1.85

35

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

35

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
