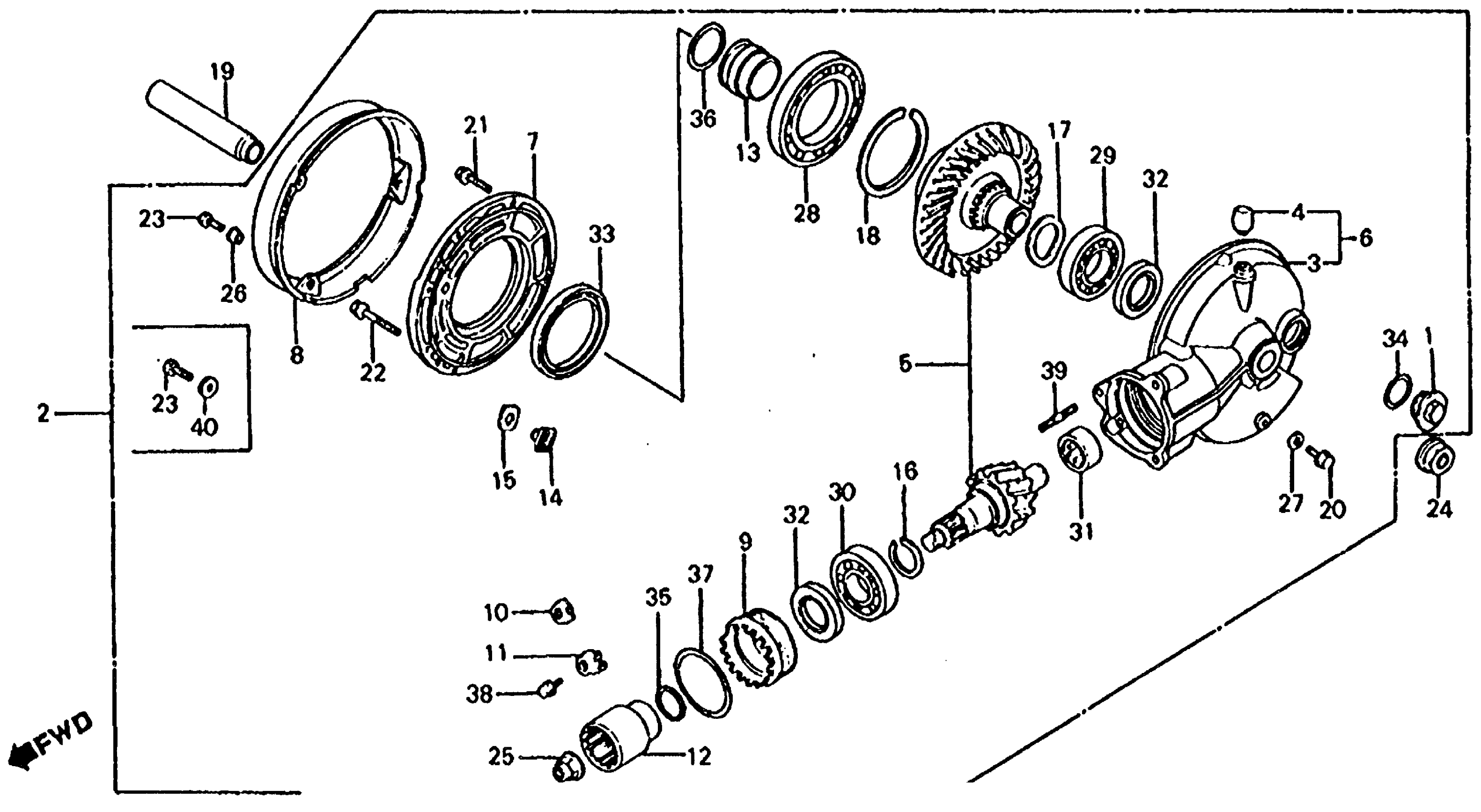

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL DRIVEN

41300-MB0-000

Unavailable

3

CASE, FINAL GEAR This part replaces 41301-MB0-000.

41311-MB0-305

Unavailable

3

CASE, FINAL GEAR This part replaces 41301-MB0-010.

41311-MB0-305

Unavailable

3

CASE, FINAL GEAR

41311-MB0-305

Unavailable

4

CAP, BREATHER (NOT AVAILABLE)

41306-MB0-000

Unavailable

5

GEAR SET, FINAL

41310-MB0-305

Unavailable

7

COVER, GEAR CASE This part replaces 41321-MB0-000.

41312-MB4-770

Unavailable

7

COVER, GEAR CASE

41312-MB4-770

Unavailable

7

COVER, GEAR CASE This part replaces 41321-MB0-010.

41312-MB4-770

Unavailable

8

PLATE, DUST GUARD

41324-MB0-000

Unavailable

9

RETAINER, BEARING

41331-MB0-000

Unavailable

10

LOCK A, BEARING ADJ.

41332-415-000

$2.51

11

LOCK B, BEARING ADJ.

41333-415-000

$2.51

12

JOINT, PINION

41410-MB0-000

Unavailable

13

HOLDER, O-RING This part replaces 41433-MB0-000.

41433-MB0-010

$12.90

13

HOLDER, O-RING

41433-MB0-010

$12.90

14

PIN, RING GEAR STOPPER

41436-MB0-300

Unavailable

15

SHIM A, STOPPER PIN (0.10) This part replaces 41437-MB0-300.

41437-MB0-310

$5.45

15

SHIM B, STOPPER PIN

41438-MB0-300

Unavailable

15

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

16

SHIM A, PINION GEAR (1.82)

41450-MB0-000

Unavailable

16

SHIM B, PINION GEAR (1.88)

41451-MB0-000

Unavailable

16

SHIM C, PINION GEAR (1.94)

41452-MB0-000

Unavailable

16

SHIM D, PINION GEAR (2.00)

41453-MB0-000

Unavailable

16

SHIM E, PINION GEAR (2.06)

41454-MB0-000

Unavailable

16

SHIM F, PINION GEAR (2.12)

41455-MB0-000

Unavailable

16

SHIM G, PINION GEAR (2.18)

41456-MB0-000

Unavailable

17

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

18

SPACER A, RING GEAR (1.82)

41530-MB0-000

$16.64

18

SPACER B, RING GEAR (1.88)

41531-MB0-000

$16.64

18

SPACER C, RING GEAR (1.94)

41532-MB0-000

$16.64

18

SPACER D, RING GEAR (2.00)

41533-MB0-000

$16.64

18

SPACER E, RING GEAR (2.06)

41534-MB0-000

$16.64

18

SPACER F, RING GEAR (2.12)

41535-MB0-000

$16.64

18

SPACER G, RING GEAR (2.18)

41536-MB0-000

$16.64

18

SPACER H, RING GEAR (2.24)

41537-MB0-000

$16.64

18

SPACER I, RING GEAR (2.30)

41538-MB0-000

$16.64

19

COLLAR B, RR. DISTANCE

42625-MB0-000

Unavailable

20

BOLT, SEALING (8MM)

90109-371-000

$2.58

21

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

22

BOLT, FLANGE (10X38) (NOT AVAILABLE)

90134-371-000

Unavailable

23

BOLT, HEX. (6X16)

90170-MB0-000

$2.54

24

NUT, RR. AXLE U (16MM)

90305-MC0-003

Unavailable

25

NUT, HEX. (16MM) This part replaces 90381-MB0-000.

90381-MB0-010

$6.90

25

NUT, HEX. (16MM)

90381-MB0-010

$6.90

25

NUT, HEX. (16MM) This part replaces 90381-MB0-700.

90381-MB0-010

$6.90

26

WASHER, SPECIAL

90402-MB0-000

Unavailable

27

WASHER (8MM)

90471-580-000

$2.92

28

BEARING, RADIAL BALL (16012C3)

91051-MB0-005

$120.87

29

BEARING, RADIAL BALL (57/34C3)

91052-MB0-003

$46.23

29

BEARING, RADIAL BALL (57/34C3) This part replaces 91052-MB0-005.

91052-MB0-003

$46.23

30

BEARING, RADIAL BALL (6305)

91061-MB0-005

$125.16

31

BEARING, NEEDLE (19/16) This part replaces 91062-MB0-003.

91062-MB0-013

Unavailable

31

BEARING, NEEDLE (19/16) This part replaces 91062-MB0-005.

91062-MB0-013

Unavailable

31

BEARING, NEEDLE (19/16)

91062-MB0-013

Unavailable

32

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$12.13

32

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-005.

91261-MB0-003

$12.13

33

OIL SEAL (60X80X8) (ARAI)

91265-MB0-003

$15.95

34

O-RING (30.8MM)

91302-001-020

$3.75

35

O-RING (22.1X2)

91305-679-003

$4.67

35

O-RING (22.1X2) This part replaces 91355-MB0-003.

91305-679-003

$4.67

35

O-RING (22.1X2) This part replaces 91355-MB0-005.

91305-679-003

$4.67

36

O-RING (35.2X2.4) (NOK) This part replaces 91356-MB0-000.

91356-MB0-005

$3.35

36

O-RING (35.2X2.4) (NOK)

91356-MB0-005

$3.35

37

O-RING (58.5X3.5)

91353-MB0-003

Unavailable

37

O-RING (58.5X3.5)

91359-MB0-000

$5.25

38

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

38

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

39

BOLT, STUD (10X50)

92700-10050-0E

Unavailable
