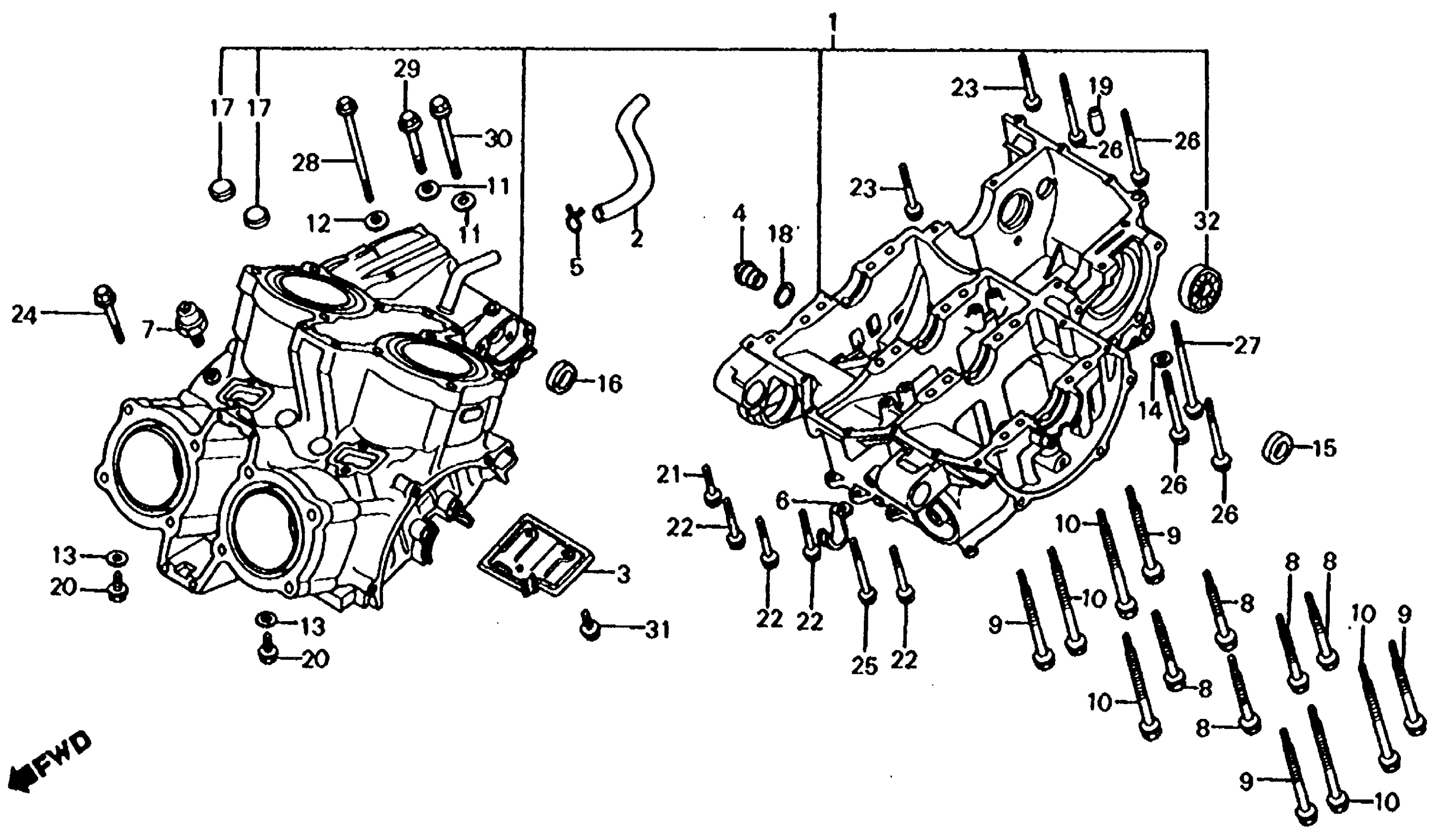

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK SET, CYLINDER

11000-MB0-000

Unavailable

2

TUBE A, BREATHER (NOT AVAILABLE)

11105-MB0-000

Unavailable

3

PLATE, OIL SEPARATE

11140-MB0-000

Unavailable

4

CAP, MAIN GALLERY

11207-MB0-000

Unavailable

5

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

6

CLIP, IGNITION CABLE | Use from Engine SN 2001141

32906-061-000

$4.79

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

8

BOLT, UBS (9X78)

90014-MB0-000

Unavailable

9

BOLT, UBS (9X98)

90015-MB0-000

Unavailable

10

BOLT, UBS (9X108)

90016-MB0-000

Unavailable

11

WASHER, SEALING (8MM) (NOT AVAILABLE)

90442-MB0-000

Unavailable

12

WASHER A, SEALING (6MM)

90443-035-000

$3.65

13

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

14

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

15

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.61

16

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.78

16

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-003.

91202-444-023

$3.78

16

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-013.

91202-444-023

$3.78

17

PLUG, SEAL (32MM)

91255-727-004

Unavailable

18

O-RING (18X2.8)

91314-MB0-003

Unavailable

19

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

20

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

21

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

21

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

22

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

22

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

23

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

23

BOLT, FLANGE (6X45)

95701-06045-07

$2.06

25

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

25

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

26

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$1.49

26

BOLT, FLANGE (6X60)

95701-06060-00

$1.49

27

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

27

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

28

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

28

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

29

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

29

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

30

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.64

30

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

31

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

31

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

32

BEARING, RADIAL BALL (6304)

96100-63040-00

$14.40
