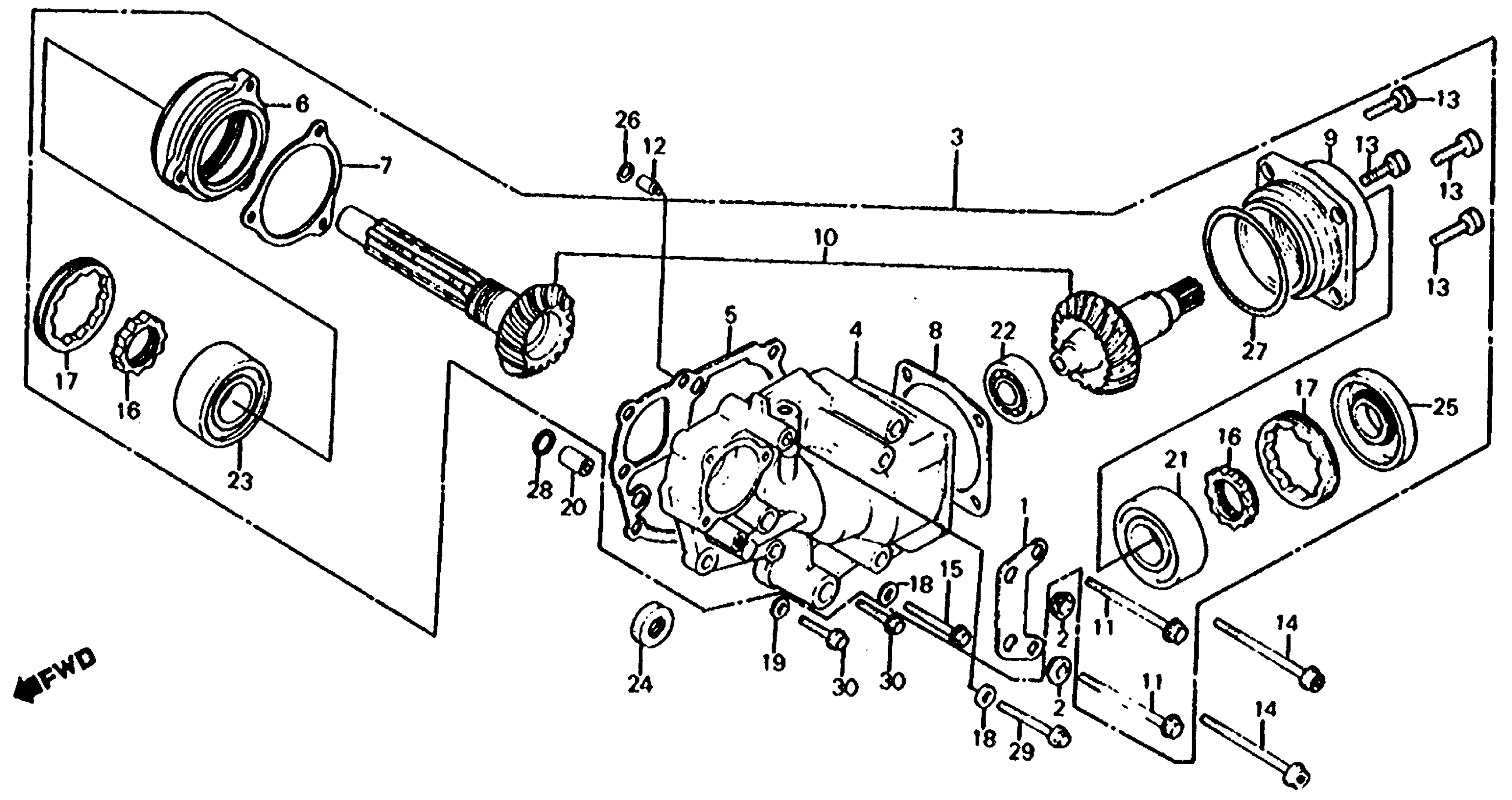

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 CROSS SHAFT Diagram

#

Description
Price

1

COVER, CLUTCH

11342-MB0-000

Unavailable

2

GROMMET B, RR. COVER

11345-MB0-000

$4.06

3

CASE ASSY., SIDE GEAR This part replaces 21100-MB0-000.

21100-MB0-870

Unavailable

3

CASE ASSY., SIDE GEAR

21100-MB0-870

Unavailable

4

CASE, SIDE GEAR

21200-MB0-000

Unavailable

5

GASKET (0.3) This part replaces 21293-MB0-000.

21293-MB0-306

Unavailable

5

GASKET (0.4) This part replaces 21294-MB0-000.

21294-MB0-306

Unavailable

5

GASKET, SIDE GEAR This part replaces 21295-MB0-000.

21291-MB0-306

Unavailable

5

GASKET (0.6) This part replaces 21296-MB0-000.

21296-MB0-306

Unavailable

5

GASKET (0.7) This part replaces 21297-MB0-000.

21297-MB0-306

Unavailable

5

GASKET (0.8) This part replaces 21298-MB0-000.

21298-MB0-306

Unavailable

5

GASKET, SIDE GEAR

21291-MB0-306

Unavailable

5

GASKET, SIDE GEAR This part replaces 21291-MB0-770.

21291-MB0-306

Unavailable

6

HOLDER, COUNTERSHAFT BEARING

21301-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.04)

21311-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.20)

21312-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.25)

21313-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.30) (NOT AVAILABLE)

21314-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.35)

21315-MB0-000

Unavailable

7

SHIM, COUNTERSHAFT (0.40) This part replaces 21316-MB0-000.

21321-MB0-770

Unavailable

7

SHIM, COUNTERSHAFT (0.40)

21321-MB0-770

Unavailable

8

SHIM, CROSS SHAFT (0.04)

21341-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.20)

21342-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.25)

21343-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.30)

21344-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.35)

21345-MB0-000

Unavailable

8

SHIM, CROSS SHAFT (0.40) This part replaces 21346-MB0-000.

21381-MB0-770

$25.25

8

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$25.25

9

HOLDER, CROSS SHAFT BEARING

21371-MB0-000

Unavailable

10

SHAFT SET, CROSS This part replaces 23200-MB0-000.

23200-MB0-870

Unavailable

10

SHAFT SET, CROSS

23200-MB0-870

Unavailable

11

BOLT, UBS (8X100)

90004-HC4-000

Unavailable

11

BOLT, UBS (8X100) (NOT AVAILABLE) This part replaces 90004-422-000.

90004-HC4-000

Unavailable

12

ORIFICE, OIL CONTROL (NOT AVAILABLE)

90049-MB0-000

Unavailable

13

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

14

BOLT, FLANGE SOCKET (8X85)

90062-MB0-000

Unavailable

15

BOLT, UBS (8X60)

90063-MB0-003

$6.00

16

NUT, LOCK (30MM)

90241-MB0-000

$21.10

17

NUT, LOCK (64MM)

90242-MB0-000

$32.52

18

WASHER, SEALING (8MM) (NOT AVAILABLE)

90442-MB0-000

Unavailable

19

WASHER A, SEALING (6MM)

90443-035-000

$3.65

20

ORIFICE, PIN (10X16) (NOT AVAILABLE)

90703-MB0-000

Unavailable

21

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$95.20

22

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$30.64

22

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$30.64

23

BEARING, RADIAL BALL (5206) This part replaces 91012-MB0-003.

91012-MG7-003

$95.20

23

BEARING, RADIAL BALL (5206)

91012-MG7-003

$95.20

24

OIL SEAL (8X25X8) (ARAI) | Use up to Engine SN 2015995 This part replaces 91204-MB0-000.

91204-MB0-013

$4.06

24

OIL SEAL (8X25X8) (ARAI) | Use up to Engine SN 2015995 This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

24

OIL SEAL (8X25X8) (ARAI) This part replaces 91204-MB0-003.

91204-MB0-013

$4.06

24

OIL SEAL (8X25X8) (ARAI) | Use up to Engine SN 2015995

91204-MB0-013

$4.06

24

OIL SEAL (8X25X8) (ARAI)

91204-MB0-013

$4.06

25

OIL SEAL (25X66X8.5)

91205-MB0-000

$19.92

25

OIL SEAL (25X66X8.5) (ARAI) This part replaces 91205-MB0-771.

91205-MG7-003

$18.78

25

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$18.78

26

O-RING (5.7X2.2) (ARAI)

91308-MB0-003

$2.22

27

O-RING (69.5X3) (ARAI)

91314-MG7-003

$9.24

27

O-RING (69.5X3) (ARAI) This part replaces 91314-MJ0-000.

91314-MG7-003

$9.24

27

O-RING (69.5X3) (ARAI) This part replaces 91314-300-000.

91314-MG7-003

$9.24

28

O-RING (9.8X2.4)

91305-422-000

$2.47

28

O-RING (9.8X2.4) This part replaces 91352-425-003.

91305-422-000

$2.47

28

O-RING (9.8X2.4) This part replaces 91352-526-000.

91305-422-000

$2.47

29

BOLT, FLANGE (8X65) This part replaces 95700-08065-00.

95701-08065-00

$1.72

29

BOLT, FLANGE (8X65)

95701-08065-00

$1.72

30

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

30

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
