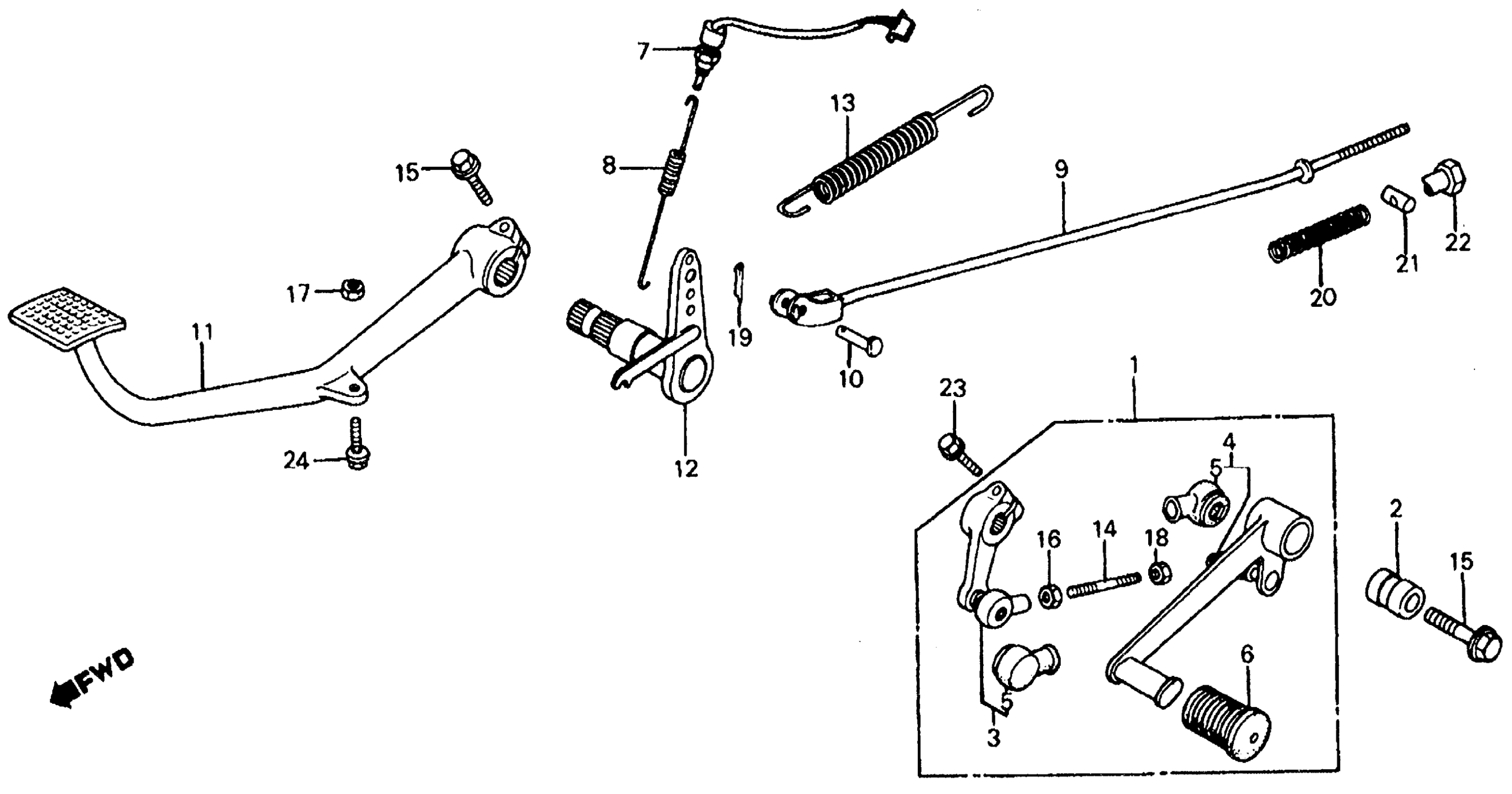

Honda VF750SA (82) V45 SABRE, JPN, VIN# JH2RC070-CM000036 TO JH2RC070-CM012083 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-MB0-000

Unavailable

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MB0-000

$12.16

COLLAR, GEARSHIFT PEDAL PIVOT

24705-MT6-000

Unavailable

ARM, GEARSHIFT

24710-MB0-000

Unavailable

PEDAL, GEARSHIFT (NOT AVAILABLE)

24720-MB0-000

Unavailable

COVER, DUST

24724-422-000

$6.68

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.62

SWITCH ASSY., RR. STOP This part replaces 35350-MB0-000.

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP

35350-ME9-405

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-ME9-770.

35350-ME9-405

Unavailable

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

ROD, RR. BRAKE This part replaces 43451-MB0-000.

43451-MB0-950

Unavailable

ROD, RR. BRAKE

43451-MB0-950

Unavailable

PIN B, JOINT (NOT AVAILABLE)

43452-KB4-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MB0-000

Unavailable

SPINDLE, RR. BRAKE

46510-MB0-000

Unavailable

SPRING, BRAKE PEDAL

46514-MB0-000

$9.38

BOLT, TIE ROD

90065-MB0-000

Unavailable

BOLT, SPECIAL FLANGE (8X28)

90103-MB0-000

$4.94

NUT, GOVERNOR ARM FIXING

90201-700-000

$1.49

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

NUT, HEX. (6MM) This part replaces 94002-06020.

94002-06020-0S

$1.49

NUT, HEX. (6MM)

94002-06020-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
