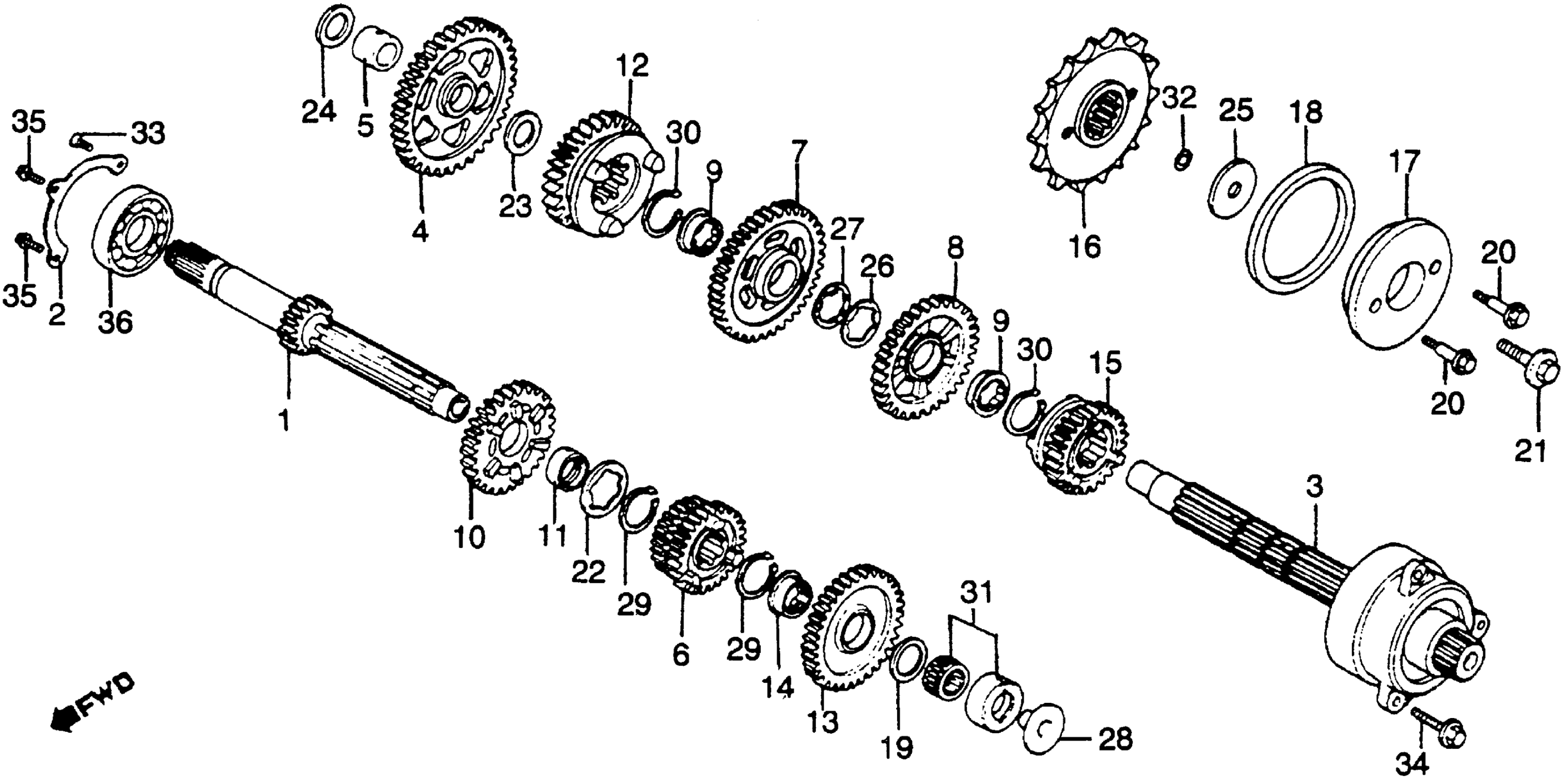

Honda VF750FAC (84) 750 INTERCEPTOR, JPN, VIN# JH2RC151-EM100002 TO JH2RC151-EM100437 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (15T)

23211-MB2-000

Unavailable

2

PLATE, BEARING SETTING (NOT AVAILABLE) This part replaces 23212-MB0-010.

23212-MB4-830

Unavailable

2

PLATE, BEARING SETTING

23212-MB4-830

Unavailable

3

COUNTERSHAFT | Use up to Engine SN 2103112 This part replaces 23220-MB2-000.

23220-MB6-680

Unavailable

3

COUNTERSHAFT | Use up to Engine SN 2103112 This part replaces 23220-MB2-010.

23220-MB6-680

Unavailable

3

COUNTERSHAFT | Use up to Engine SN 2103112 This part replaces 23220-MB2-020.

23220-MB6-680

Unavailable

3

COUNTERSHAFT This part replaces 23220-MB2-020.

23220-MB6-680

Unavailable

3

COUNTERSHAFT | Use up to Engine SN 2103112

23220-MB6-680

Unavailable

3

COUNTERSHAFT

23220-MB6-680

Unavailable

4

GEAR, COUNTERSHAFT LOW (41T)

23421-MB6-000

Unavailable

5

COLLAR (22X13.6)

23422-MB2-000

Unavailable

6

GEAR, MAINSHAFT SECOND & THIRD (19T, 22T)

23431-MB2-000

Unavailable

7

GEAR, COUNTERSHAFT SECOND (36T) (NOT AVAILABLE)

23441-MB6-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD This part replaces 23461-MB2-000.

23461-MB6-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD

23461-MB6-000

Unavailable

9

COLLAR (28X15.5)

23462-MB2-010

Unavailable

10

GEAR, MAINSHAFT FOURTH (25T)

23471-MB2-000

Unavailable

11

COLLAR (25X14)

23472-MB2-000

Unavailable

12

GEAR, COUNTERSHAFT FOURTH (31T) (NOT AVAILABLE)

23481-MB6-000

Unavailable

13

GEAR, MAINSHAFT FIFTH (27T)

23491-MB2-000

Unavailable

14

COLLAR, SPLINE (25X18.5)

23492-MB2-000

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MB2-000

Unavailable

16

SPROCKET, DRIVE (17T)

23801-438-000

Unavailable

17

GUIDE, RING

23820-438-003

Unavailable

18

RING, DAMPER (NOT AVAILABLE)

23821-MB2-000

Unavailable

19

PLATE A, THRUST (1.45MM) (NOT AVAILABLE)

23901-567-319

Unavailable

20

BOLT, FLANGE (6X20)

90020-438-000

$3.35

21

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

22

WASHER, THRUST (25MM) (NOT AVAILABLE)

90451-MB2-000

Unavailable

23

WASHER, THRUST (22.5MM) (NOT AVAILABLE) This part replaces 90453-704-000.

90453-426-000

Unavailable

24

WASHER, THRUST (20X1.00)

90454-428-000

$2.53

24

WASHER, THRUST (20X0.90)

90456-MB0-770

$4.80

25

WASHER (10.2MM) (NOT AVAILABLE)

90459-422-000

Unavailable

26

WASHER, THRUST (29MM)

90461-MB2-000

$6.46

27

WASHER, LOCK (28MM)

90462-MB2-000

$5.84

28

PLATE, ORIFICE This part replaces 90558-MB0-000.

90558-MJ0-000

$6.11

28

PLATE, ORIFICE

90558-MJ0-000

$6.11

29

CIRCLIP (OUTER) (25MM)

90601-300-000

$3.83

30

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.98

31

BEARING, NEEDLE (20MM)

91022-415-008

$52.13

32

O-RING (9.8X2.4)

91305-422-000

$2.47

33

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

34

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

34

BOLT, FLANGE (8X28)

95701-08028-08

$2.06

35

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

35

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

36

BEARING, RADIAL BALL (6305)

96100-63050-00

$15.27
