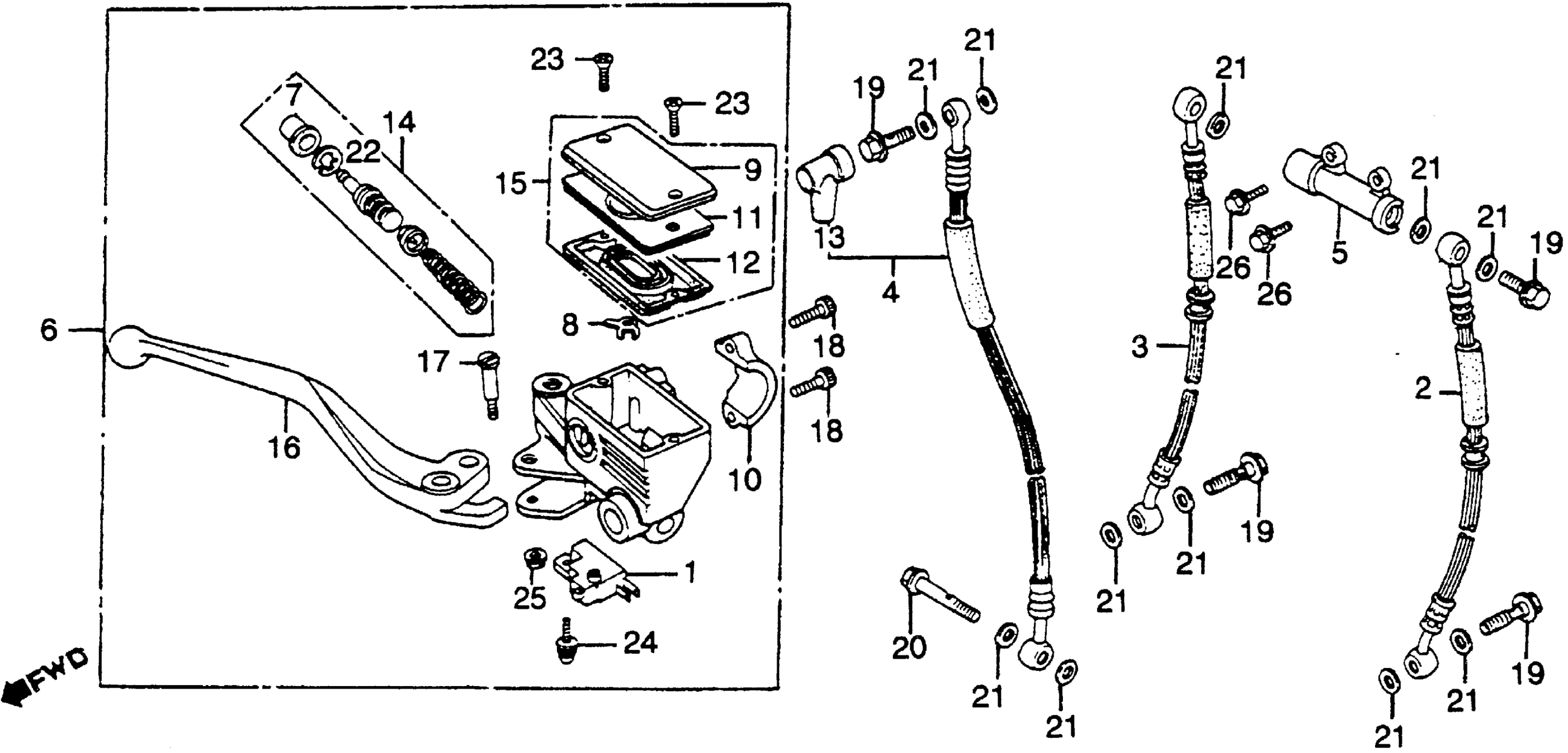

Honda VF750FAC (84) 750 INTERCEPTOR, JPN, VIN# JH2RC151-EM100002 TO JH2RC151-EM100437 FR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE, L. FR. BRAKE (NOT AVAILABLE) This part replaces 45124-MB2-003.

45124-MB2-013

Unavailable

2

HOSE, L. FR. BRAKE (NOT AVAILABLE)

45124-MB2-013

Unavailable

3

HOSE, R. FR. BRAKE This part replaces 45125-MB2-003.

45125-MB2-013

Unavailable

3

HOSE, R. FR. BRAKE

45125-MB2-013

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE) This part replaces 45126-MB2-003.

45126-MB2-013

Unavailable

4

HOSE B, FR. BRAKE (NOT AVAILABLE)

45126-MB2-013

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

CYLINDER SUB-ASSY. This part replaces 45500-MB4-673.

45510-MB4-405

Unavailable

7

BOOT

45504-410-003

$12.16

8

PROTECTOR

45512-MA6-006

$4.28

9

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

10

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

11

PLATE, DIAPHRAGM

45518-MB4-671

$12.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

14

MASTER CYLINDER SET

45530-MA5-671

$71.69

15

CAP, MASTER CYLINDER (NOT AVAILABLE)

45540-MB4-671

Unavailable

16

LEVER, R. HANDLE This part replaces 53175-KE8-006.

53175-MK7-671

$17.88

16

LEVER, R. HANDLE This part replaces 53175-MJ6-006.

53175-MK7-671

$17.88

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

19

BOLT, OIL (10X22)

90145-KM3-751

$11.02

19

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

19

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

20

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

20

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

26

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
