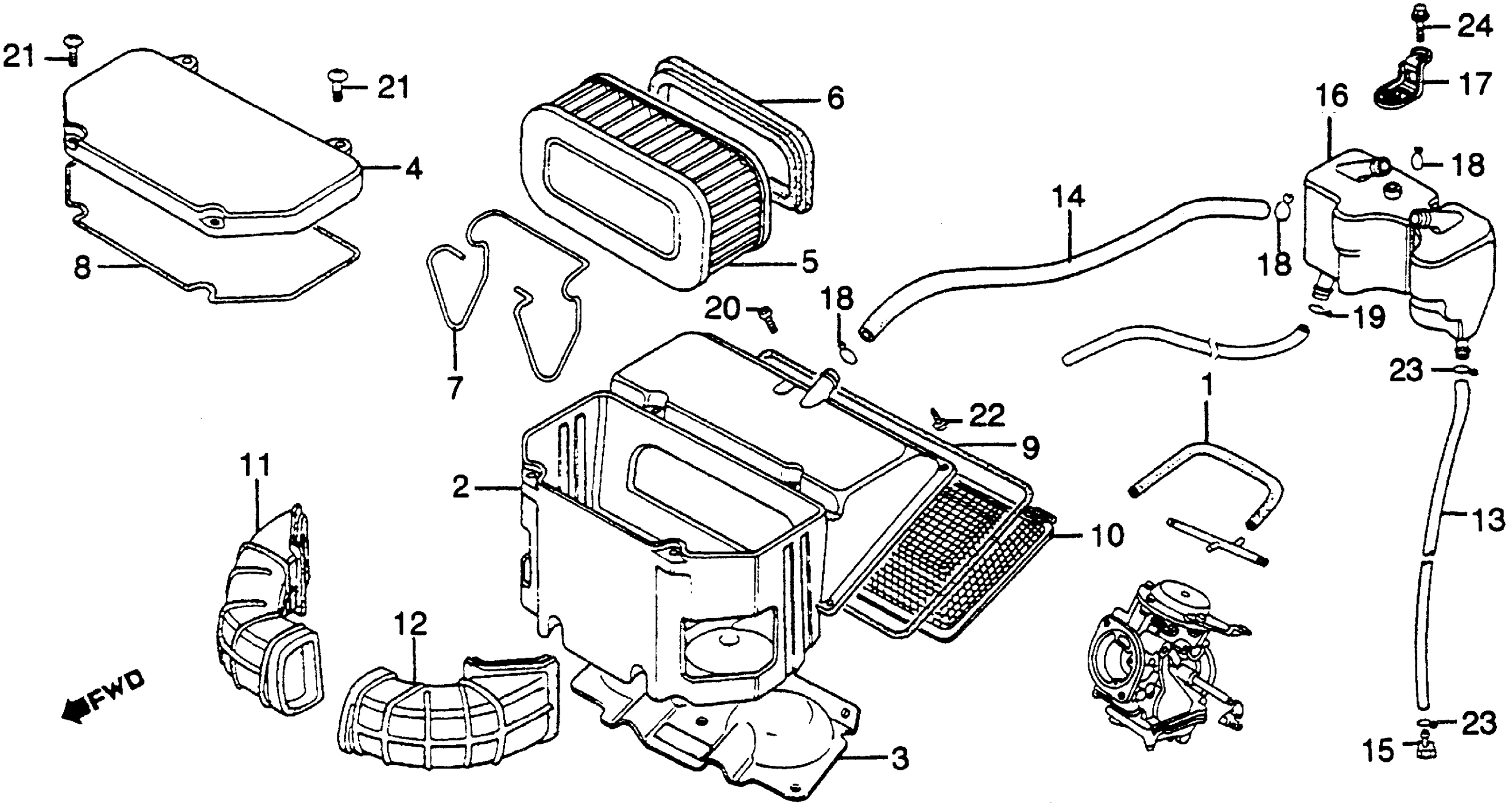

Honda VF750FAC (84) 750 INTERCEPTOR, JPN, VIN# JH2RC151-EM100002 TO JH2RC151-EM100437 AIR CLEANER Diagram

#

Description
Price

2

HOUSING, AIR CLEANER

17210-MB2-880

Unavailable

3

PROTECTOR, HEAT

17211-MB2-880

Unavailable

4

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17215-MB2-000

Unavailable

5

ELEMENT, AIR CLEANER

17216-MB2-000

Unavailable

6

GASKET, ELEMENT

17218-MB2-000

Unavailable

7

SPRING, ELEMENT SETTING (NOT AVAILABLE)

17219-MB2-000

Unavailable

8

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

9

SEAL, AIR CLEANER COVER This part replaces 17232-MB2-000.

17222-MN4-405

$7.31

10

NET, AIR CLEANER BASE

17251-MB2-000

Unavailable

11

DUCT, R. AIR CLEANER INLET (NOT AVAILABLE)

17254-MB2-000

Unavailable

12

DUCT, L. AIR CLEANER IN. (NOT AVAILABLE)

17255-MB2-000

Unavailable

13

TUBE, BREATHER DRAIN (NOT AVAILABLE)

17356-MB2-000

Unavailable

14

TUBE, AIR CLEANER BREATHER (NOT AVAILABLE)

17358-MB2-000

Unavailable

15

PLUG, BREATHER TUBE

17370-419-700

$3.74

16

TANK, STORAGE

17551-MB2-000

Unavailable

17

STAY, STORAGE TANK

17552-MB2-000

Unavailable

18

CLIP, BREATHER TUBE

17554-MB0-000

$2.97

19

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

20

SCREW, PAN (4X15)

90141-MB0-000

$3.67

21

SCREW, PAN (5X16.5)

90142-MB0-000

$2.58

22

SCREW, TAPPING

93901-35200

Unavailable

23

CLIP, TUBE (C12)

95002-80000

$1.49

24

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

24

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
