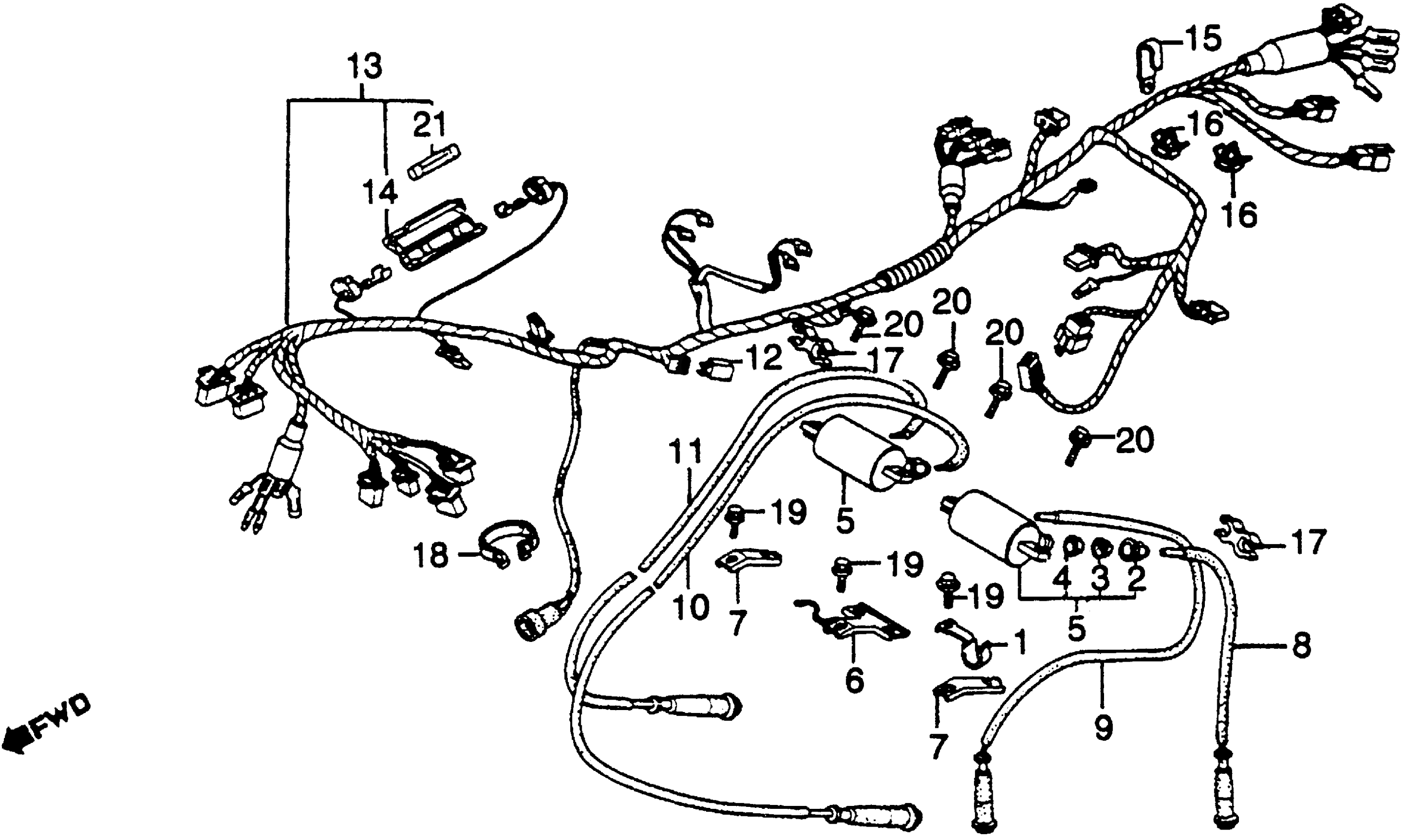

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 WIRE HARNESS + IGNITION COIL Diagram

CLAMP, RESERVE TANK TUBE

19119-MB2-000

Unavailable

CAP, SCREW

30501-428-003

Unavailable

SEAL, RUBBER

30502-428-003

$1.49

WASHER, CAP

30503-428-003

$1.52

COIL, IGNITION This part replaces 30510-MB0-701.

30510-MB0-703

Unavailable

COIL, IGNITION

30510-MB0-703

Unavailable

STAY A, IGNITION COIL

30515-MB2-010

Unavailable

STAY B, IGNITION COIL

30516-MB2-010

Unavailable

CAP 1, IGNITION (R/L) (NOT AVAILABLE)

30731-MB2-000

Unavailable

CAP 2, IGNITION (NOT AVAILABLE)

30732-MB2-000

Unavailable

CAP, IGNITION (3) (NOT AVAILABLE)

30733-MB2-153

Unavailable

CAP, IGNITION (4) (NOT AVAILABLE)

30734-MB2-153

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS

32100-MB2-700

Unavailable

CASE, FUSE (10A)

32126-463-770

$10.51

CLIP, HARNESS

32127-MB0-701

Unavailable

CLIP, WIRE HARNESS

32161-393-003

$3.07

CLAMP, IGNITION WIRE

32802-MB2-000

Unavailable

BAND A2, CABLE

95014-61200

$2.33

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

FUSE B (10A)

98200-21000

$1.49
