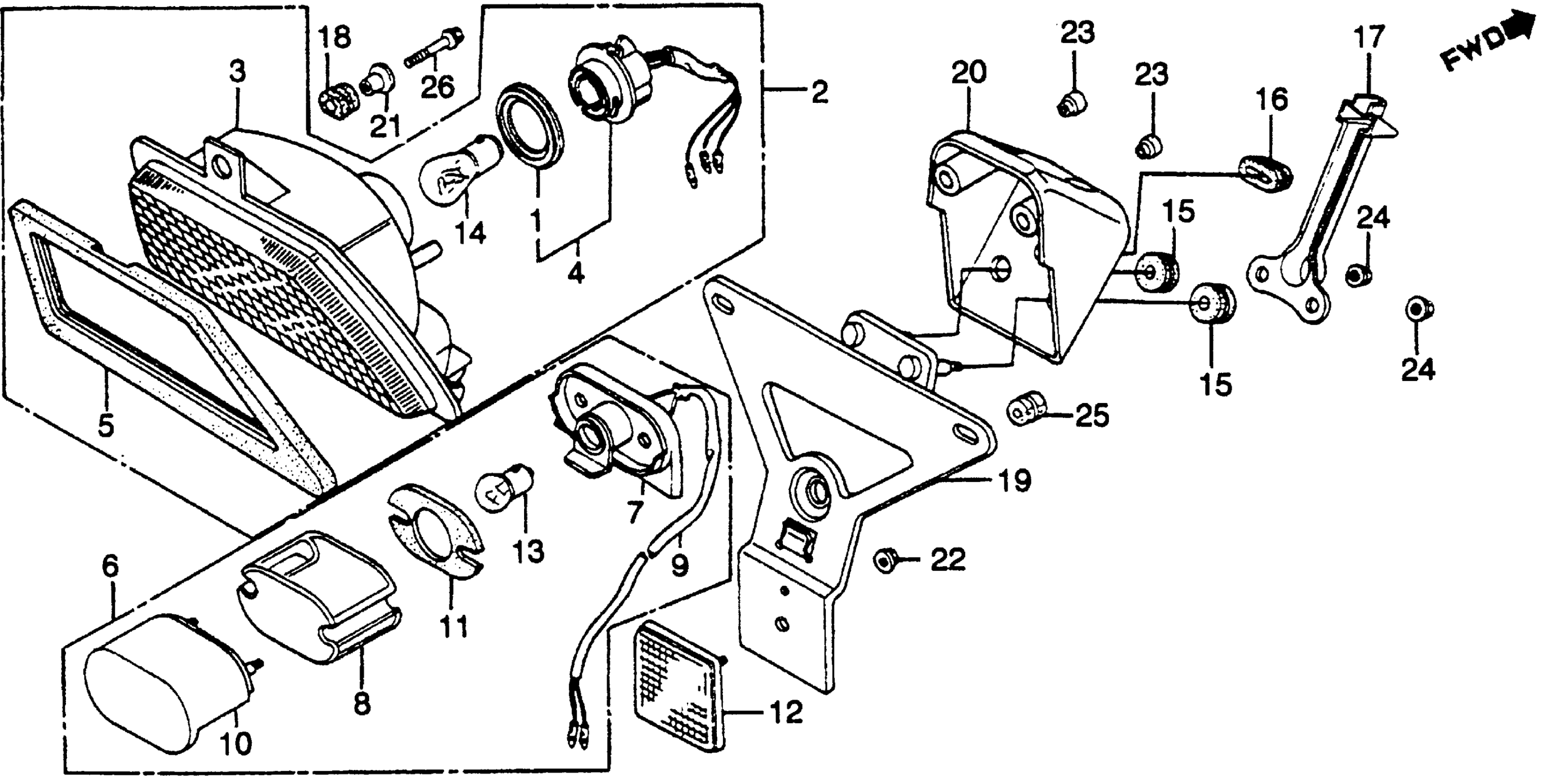

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 TAILLIGHT Diagram

#

Description
Price

1

GASKET, SEAL

33518-SA2-003

$4.38

2

TAILLIGHT UNIT (12V 32/3CP) This part replaces 33701-MB2-671.

33701-MB2-672

Unavailable

2

TAILLIGHT UNIT (12V 32/3CP)

33701-MB2-672

Unavailable

3

TAILLIGHT UNIT (12V 32/3CP) This part replaces 33701-MB2-670.

33701-MB2-672

Unavailable

3

TAILLIGHT UNIT (12V 32/3CP) This part replaces 33701-MB2-671.

33701-MB2-672

Unavailable

3

TAILLIGHT UNIT (12V 32/3CP)

33701-MB2-672

Unavailable

3

TAILLIGHT UNIT (12V 32/3CP) This part replaces 33703-MB2-671.

33701-MB2-672

Unavailable

4

WIRE, TAILLIGHT

33708-MB2-671

Unavailable

5

GASKET, BASE

33709-MB2-003

Unavailable

6

LIGHT ASSY., LICENSE This part replaces 33720-MB2-003.

33720-MV9-670

Unavailable

6

LIGHT ASSY., LICENSE

33720-MV9-670

Unavailable

7

BASE

33721-MB2-003

Unavailable

8

LENS, LICENSE LIGHT This part replaces 33722-MB1-003.

33722-MB1-013

$19.68

8

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

9

WIRE, LICENSE This part replaces 33725-MB2-003.

33725-MF8-770

Unavailable

9

WIRE, LICENSE

33725-MF8-770

Unavailable

10

COVER, LICENSE LIGHT

33727-ME4-671

$27.26

11

GASKET, LENS

33729-MB1-003

$6.30

12

REFLECTOR, RR. REFLEX This part replaces 33742-MB2-671.

33742-MB2-672

$22.05

12

REFLECTOR, RR. REFLEX

33742-MB2-672

$22.05

13

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

13

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

13

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

14

BULB, STOP & TAILLIGHT (12V 27/7W)

34906-MG9-771

$4.15

14

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

15

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

16

GROMMET, CABLE

80102-323-000

Unavailable

17

GUARD, WIRE

80103-MB2-000

Unavailable

18

RUBBER, TAILLIGHT CUSHION

80104-MB2-000

Unavailable

19

BRACKET, LICENSE PLATE This part replaces 84701-MB2-670.

84701-MB2-671

Unavailable

19

BRACKET, LICENSE PLATE

84701-MB2-671

Unavailable

20

BASE, LICENSE LIGHT

84703-MB2-670

Unavailable

21

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$4.08

22

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

23

NUT, SPECIAL (4MM)

90302-MB2-000

$4.92

24

NUT, FLANGE (6MM)

90302-187-000

$2.39

25

RUBBER, NUMBER BRACKET CUSHION

90899-MB2-000

$3.80

26

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

26

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
