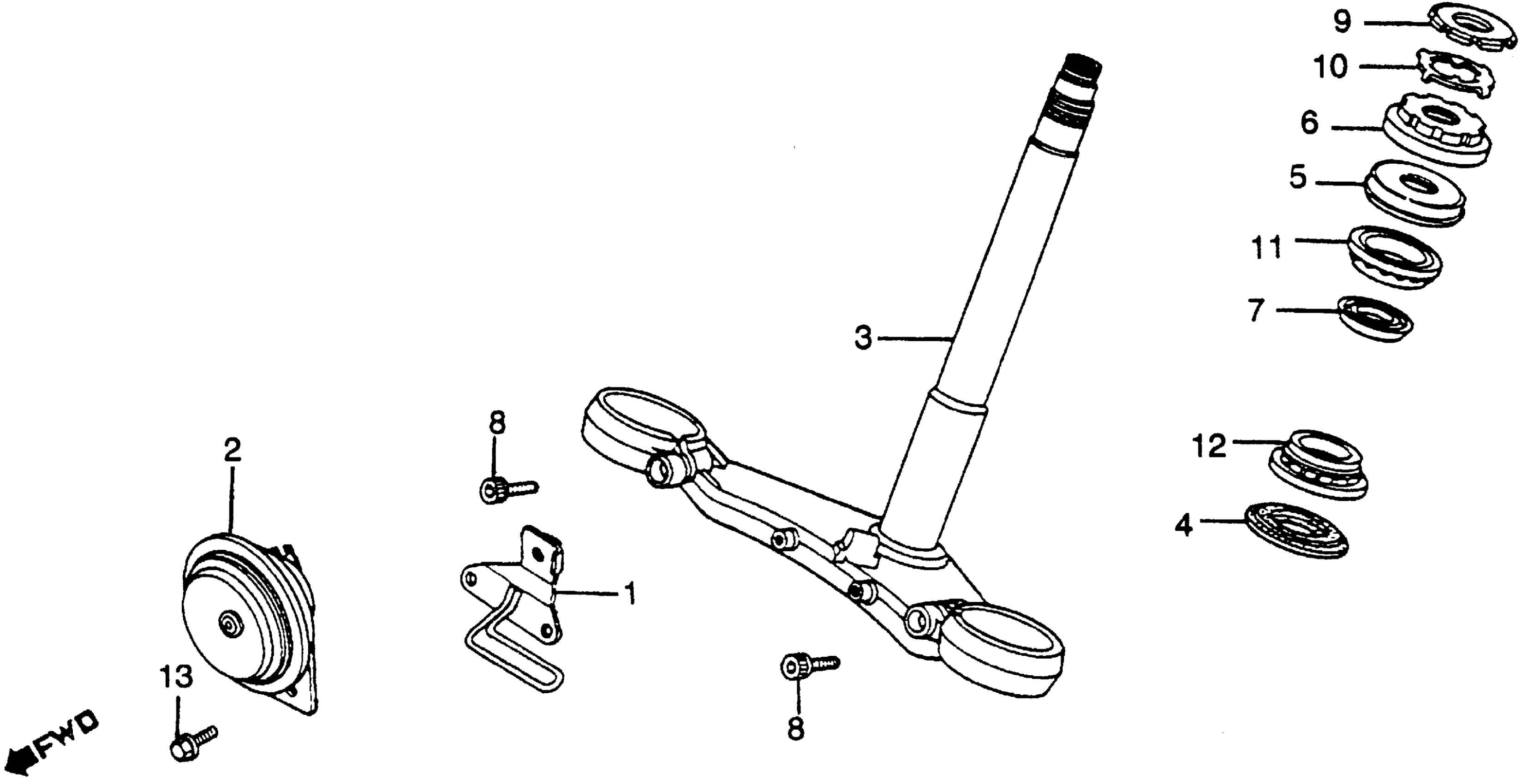

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 STEERING STEM + HORN Diagram

STAY, HORN (NOT AVAILABLE)

38102-MB2-000

Unavailable

HORN (HIGH)

38110-KAY-008

Unavailable

HORN (HIGH) This part replaces 38110-MB2-004.

38110-KAY-008

Unavailable

STEM, STEERING

53200-MB2-000

Unavailable

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-MB2-000

$34.39

HOLDER, GREASE

53223-371-010

Unavailable

BOLT, SOCKET (10X30)

90152-MB0-000

Unavailable

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (UPPER) This part replaces 91015-MB4-771.

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) This part replaces 91016-MB4-771.

91016-KT8-005

$36.57

BOLT, FLANGE (8X14) This part replaces 95700-08014-07.

95701-08014-07

$1.49

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
