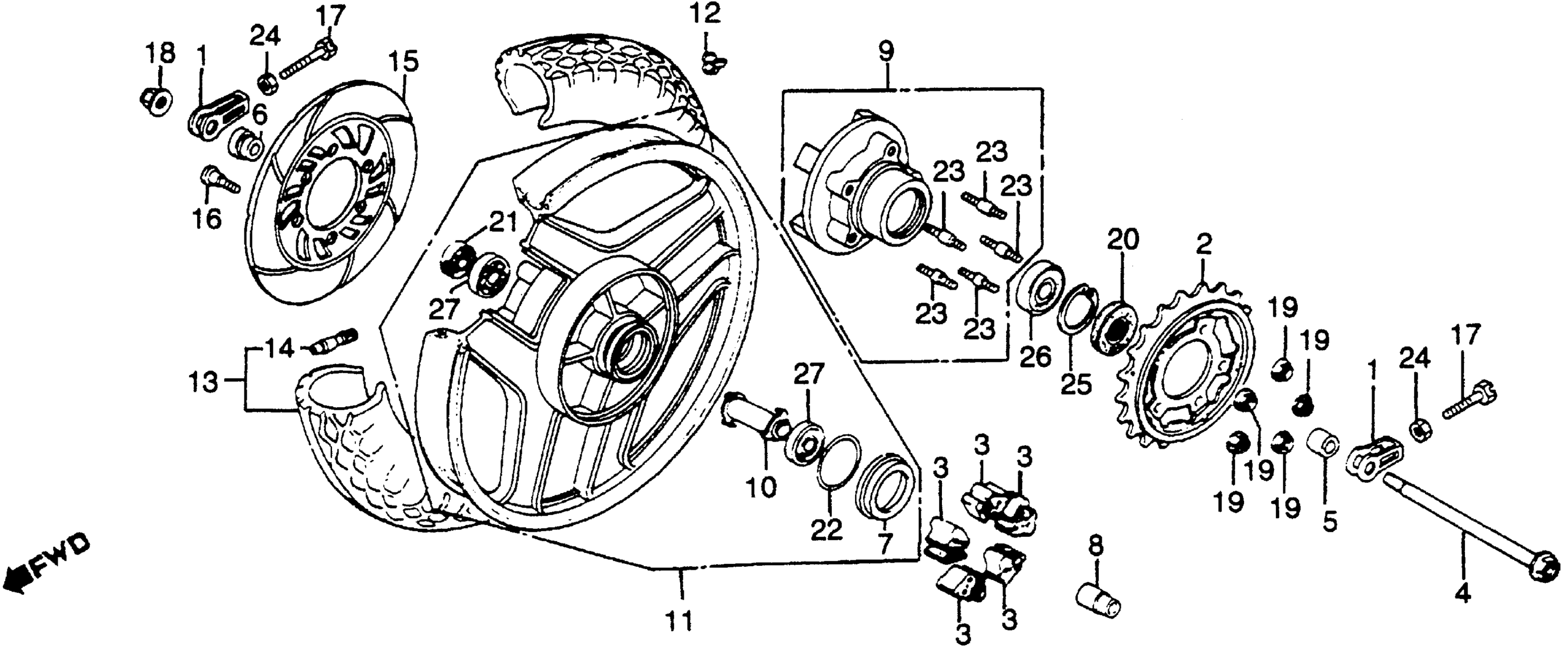

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 REAR WHEEL Diagram

#

Description
Price

1

ADJUSTER, DRIVE CHAIN

40543-MB2-000

$21.07

1

ADJUSTER K, CHAIN

95014-19000

$19.86

2

SPROCKET, FINAL DRIVEN (44T)

41200-438-000

Unavailable

3

DAMPER, RR. WHEEL

41241-422-000

Unavailable

4

AXLE, RR. WHEEL This part replaces 42301-MB2-000.

42301-MB6-630

Unavailable

4

AXLE, RR. WHEEL

42301-MB6-630

Unavailable

5

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-MB2-000

Unavailable

6

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

7

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

8

SLEEVE, RR. AXLE

42605-393-000

Unavailable

9

FLANGE, FINAL DRIVEN

42610-MB2-670

Unavailable

10

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-422-010

Unavailable

11

WHEEL, RR. (NOT AVAILABLE)

42650-MB2-770

Unavailable

12

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

12

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

12

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

12

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

13

TIRE (130/80-18) This part replaces 42710-MB2-671.

42711-MB2-671

Unavailable

13

TIRE (130/80-18) This part replaces 42710-MB2-672.

42711-MB2-671

Unavailable

14

VALVE, RIM (BS)

42753-425-003

$11.00

14

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

15

DISK, RR. BRAKE (NOT AVAILABLE)

43351-MB2-000

Unavailable

16

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

16

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

17

BOLT, CHAIN ADJUSTING

90119-300-000

$9.49

18

NUT, FLANGE (18MM)

90305-MB4-003

$12.52

19

NUT, FLANGE (12MM)

90309-375-003

$8.61

20

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

21

DUST SEAL (30X52X7)

91253-442-003

$13.96

22

O-RING (66X3.6)

91258-438-711

Unavailable

23

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

24

NUT, HEX. (8MM)

94001-08000-0S

$1.49

25

CIRCLIP (INNER) (62MM)

94520-62000

$2.13

26

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

27

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04
