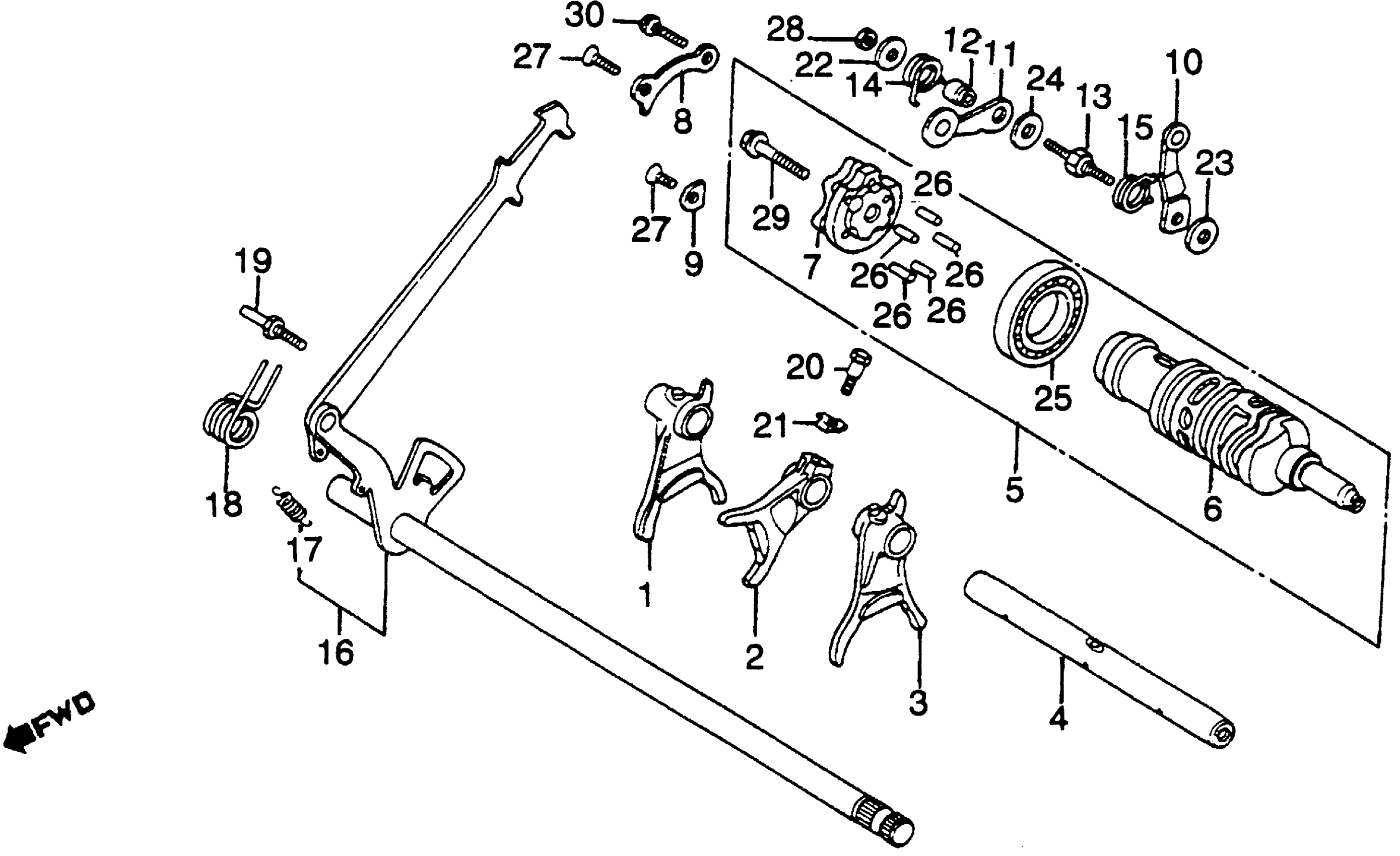

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24211-MB2-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-MB2-000

Unavailable

3

FORK, L. GEARSHIFT (NOT AVAILABLE)

24213-MB2-000

Unavailable

4

SHAFT, GEARSHIFT FORK

24261-MB2-000

Unavailable

5

DRUM ASSY., GEARSHIFT

24300-MB2-000

Unavailable

6

DRUM, GEARSHIFT

24302-MB2-300

Unavailable

7

PLATE, DRUM CAM

24305-MB2-000

Unavailable

8

PLATE A, DRUM

24320-MB0-000

Unavailable

9

PLATE B, DRUM SETTING This part replaces 24321-MB0-000.

24321-MB4-830

Unavailable

9

PLATE B, DRUM SETTING

24321-MB4-830

Unavailable

10

ARM, NEUTRAL STOPPER

24420-MB0-000

Unavailable

11

ARM, SHIFT DRUM STOPPER

24430-MB0-000

Unavailable

12

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.99

13

SHAFT, SHIFT DRUM STOPPER PIVOT

24434-MB0-000

Unavailable

14

SPRING, SHIFT DRUM STOPPER

24435-MB0-000

Unavailable

15

SPRING, NEUTRAL STOPPER

24436-MB0-000

Unavailable

16

SPINDLE, GEARSHIFT

24610-MB2-000

Unavailable

17

SPRING, GEARSHIFT ARM

24641-MB0-010

Unavailable

18

SPRING, GEARSHIFT RETURN This part replaces 24651-MB0-000.

24651-MB0-010

$7.46

18

SPRING, GEARSHIFT RETURN

24651-MB0-010

$7.46

19

PIN, SHIFT RETURN SPRING

24652-259-000

$4.97

20

BOLT, SPECIAL (7X18)

90041-MB0-000

$4.92

21

WASHER, LOCK

90407-MB0-000

$2.66

22

WASHER, SHIFT DRUM STOPPER

90487-MB0-000

$3.41

23

WASHER (6X2.3)

90488-MB0-000

$4.37

24

WASHER, SPECIAL (6MM)

90489-MB0-000

$4.85

25

BEARING (16005) (KOYO)

91051-719-003

$28.92

26

ROLLER (4X13.8)

91101-MB0-003

Unavailable

27

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

28

NUT, HEX. (6MM)

94002-06200

Unavailable

29

BOLT, FLANGE (8X32) This part replaces 95800-08032-00.

95801-08032-00

$2.07

29

BOLT, FLANGE (8X32)

95801-08032-00

$2.07

30

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
