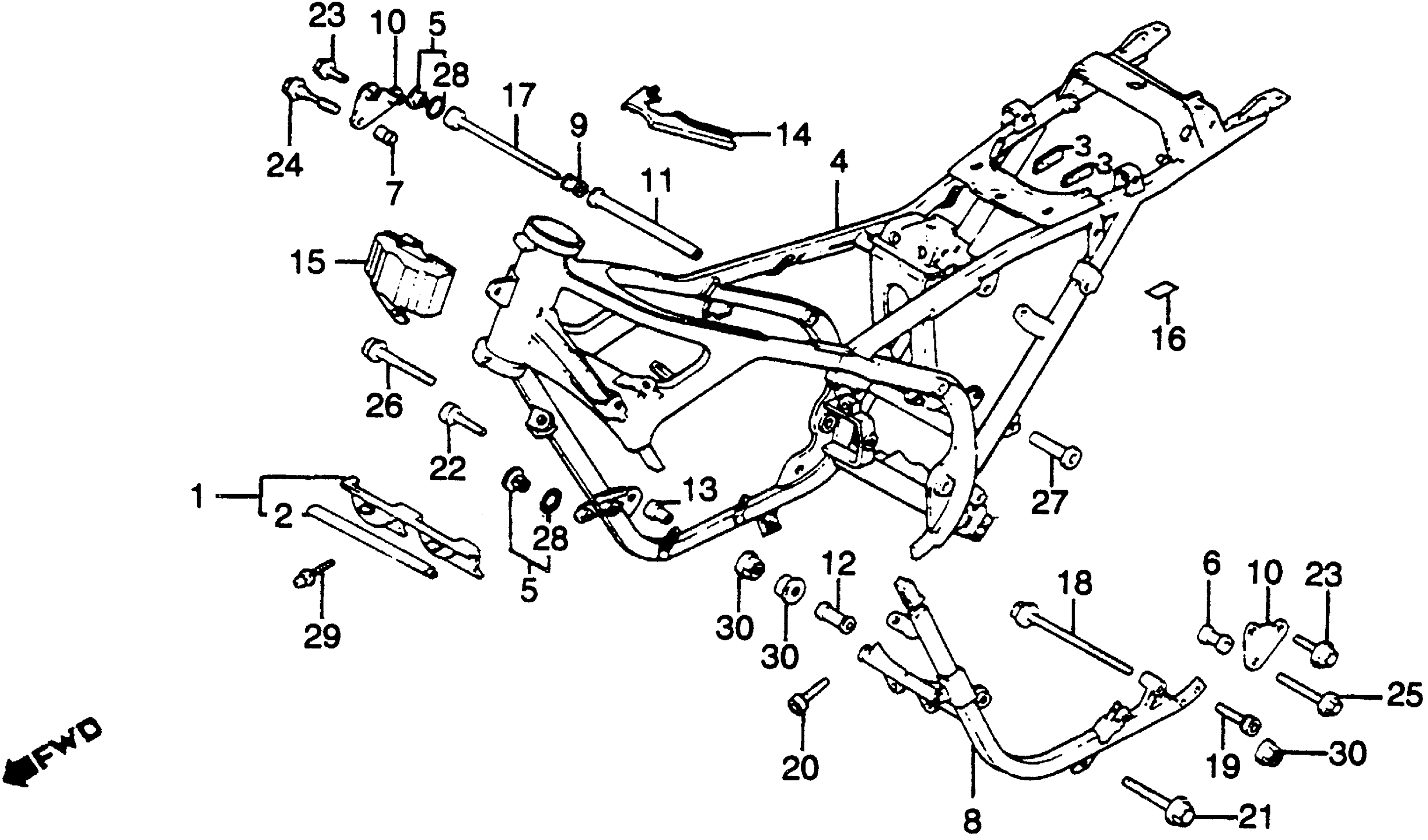

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 FRAME Diagram

#

Description
Price

1

PLATE, HEAT GUARD

19125-MB2-000

Unavailable

2

RUBBER, HEAT GUARD SEAL

19127-MB2-000

Unavailable

3

RUBBER, PROTECTOR

35857-MB2-000

Unavailable

4

FRAME *NH104MU* (PLEIADES SILVER METALLIC) This part replaces 50100-MB2-770ZA.

50100-MB2-771ZA

Unavailable

4

FRAME *NH104MU* (PLEIADES SILVER METALLIC)

50100-MB2-771ZA

Unavailable

5

CAP, ENGINE HANGER (NOT AVAILABLE)

50200-MB2-000

$6.13

6

COLLAR, L. ENGINE HANGER (UPPER)

50208-MB2-000

Unavailable

7

COLLAR, R. ENGINE HANGER (UPPER)

50209-MB2-000

Unavailable

8

SUB-FRAME *NH104MU* (PLEIADES SILVER METALLIC) This part replaces 50210-MB2-010ZA.

50210-MB2-020ZA

Unavailable

8

SUB-FRAME *NH104MU* (PLEIADES SILVER METALLIC)

50210-MB2-020ZA

Unavailable

9

COLLAR, R. ENGINE MOUNTING (NOT AVAILABLE)

50226-MB2-000

Unavailable

10

PLATE, ENGINE HANGER CENTER (NOT AVAILABLE)

50356-MB2-000

Unavailable

11

COLLAR, ENGINE HANGER (UPPER)

50361-MB2-000

Unavailable

12

COLLAR B, ENGINE HANGER

50362-MB0-000

Unavailable

13

COLLAR, R. FR. ENGINE HANGER

50362-MB2-000

Unavailable

14

COVER, HEAD PIPE GUSSET

61401-MB2-000

Unavailable

15

COVER, FR.

84601-MB2-000

Unavailable

16

LABEL, RUBBER CAUTION (NOT AVAILABLE)

87518-MB2-610

Unavailable

17

BOLT, SOCKET (10X244) (NOT AVAILABLE)

90100-MB2-000

Unavailable

18

BOLT, FLANGE (10X300)

90101-MB2-000

Unavailable

19

BOLT, SOCKET (10X15)

90103-MB2-000

Unavailable

20

BOLT, SOCKET (10X20)

90109-MB2-000

Unavailable

21

BOLT, FLANGE (10X54)

90105-MB2-000

Unavailable

22

BOLT, SOCKET (10X20) (NOT AVAILABLE)

90106-MB0-000

Unavailable

23

BOLT, FLANGE (8X16)

90106-MB2-000

$4.06

24

BOLT, FLANGE (8X42)

90107-MB2-000

Unavailable

25

BOLT, FLANGE (8X50)

90108-MB2-000

$5.23

26

BOLT, FLANGE (10X67)

90110-MB2-000

Unavailable

27

NUT, SPECIAL (10MM)

90303-MB2-000

Unavailable

28

O-RING (13.8X2.5)

91303-MG7-003

$3.12

28

O-RING (13.8X2.5)

91303-377-000

$3.42

28

O-RING (13.8X2.5) This part replaces 91303-426-000.

91303-MG7-003

$3.12

29

SCREW-WASHER (5X12) This part replaces 93891-05012-0A.

93891-05012-00

$1.49

29

SCREW-WASHER (5X12)

93891-05012-00

$1.49

30

NUT, FLANGE (10MM)

94050-10000

$1.59
