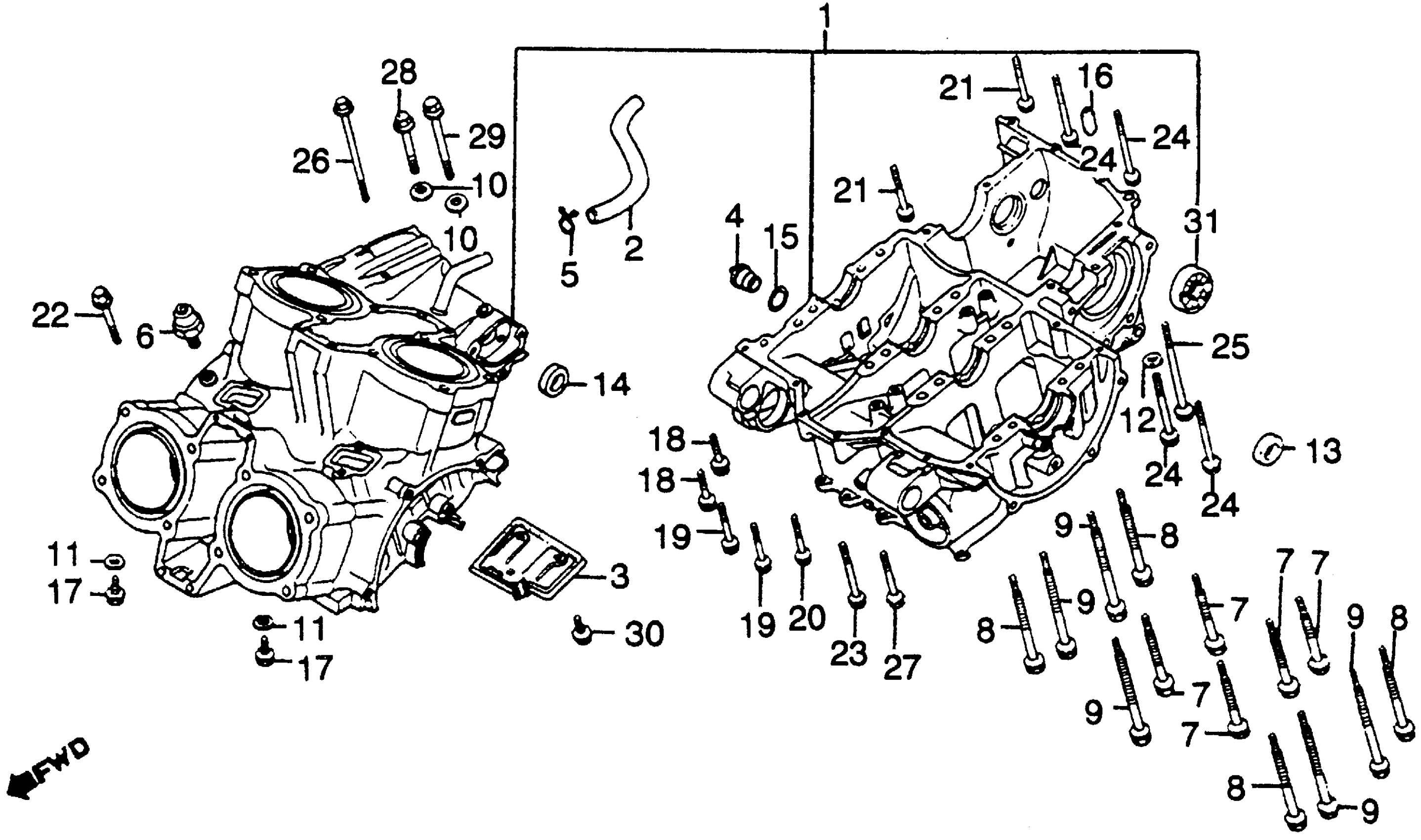

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK SET, CYLINDER | Use up to Engine SN 2103273 This part replaces 11000-MB2-010.

11000-MB2-040

Unavailable

1

BLOCK SET, CYLINDER

11000-MB2-040

Unavailable

1

BLOCK SET, CYLINDER | Use from Engine SN 2103274 This part replaces 11000-MB2-030.

11000-MB2-040

Unavailable

2

TUBE A, BREATHER (NOT AVAILABLE)

11105-MB2-000

Unavailable

3

PLATE, OIL SEPARATE

11140-MB0-000

Unavailable

4

CAP, MAIN GALLERY

11207-MB0-000

Unavailable

5

CLIP, BREATHER TUBE

17554-MB0-000

$2.65

6

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$38.10

6

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$38.10

6

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$38.10

6

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$38.10

6

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

7

BOLT, UBS (9X88)

90014-MB0-010

Unavailable

8

BOLT, UBS (9X98)

90015-MB0-000

Unavailable

9

BOLT, UBS (9X108)

90016-MB0-000

Unavailable

11

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.25

12

WASHER, RR. BRAKE ARM

90525-001-000

$1.78

13

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.16

14

OIL SEAL (14X24X6) (ARAI)

91202-444-023

$3.52

14

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-003.

91202-444-023

$3.52

14

OIL SEAL (14X24X6) (ARAI) This part replaces 91210-MB0-013.

91202-444-023

$3.52

15

O-RING (18X2.8)

91314-MB0-003

Unavailable

16

PIN, DOWEL (8X14)

94301-08140

$2.04

17

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

17

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

18

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.65

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.71

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.71

20

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.71

20

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

21

BOLT, FLANGE (6X45) This part replaces 95700-06045-00.

95701-06045-07

$1.97

21

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

21

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

22

BOLT, FLANGE (6X45) This part replaces 95700-06045-07.

95701-06045-07

$1.97

22

BOLT, FLANGE (6X45)

95701-06045-07

$1.97

23

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$1.97

23

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

24

BOLT, FLANGE (6X60) This part replaces 95700-06060-00.

95701-06060-00

$0.29

24

BOLT, FLANGE (6X60)

95701-06060-00

$0.29

25

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.84

25

BOLT, FLANGE (6X90)

95701-06090-00

$1.84

26

BOLT, FLANGE (6X100) This part replaces 95700-06100-07.

95701-06100-07

$2.77

26

BOLT, FLANGE (6X100)

95701-06100-07

$2.77

27

BOLT, FLANGE (8X45) This part replaces 95700-08045-00.

95701-08045-00

$1.33

27

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

28

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.23

28

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

29

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.57

29

BOLT, FLANGE (8X80)

95701-08080-00

$1.57

30

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.64

30

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

31

BEARING, RADIAL BALL (6304)

96100-63040-00

$12.93
