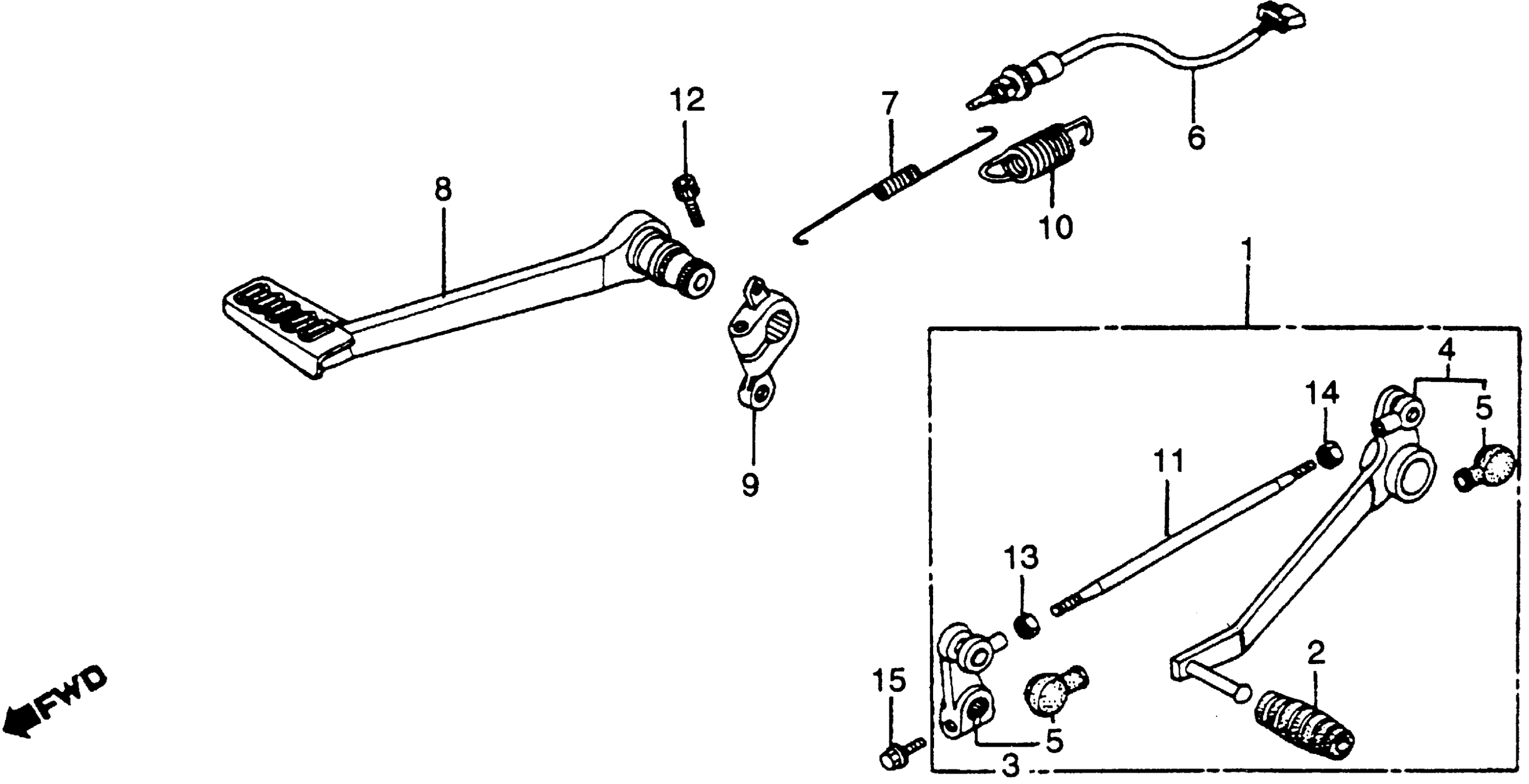

Honda VF750FA (84) 750 INTERCEPTOR, JPN, VIN# JH2RC150-EM100006 TO JH2RC150-EM103270 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL ASSY., GEARSHIFT (NOT AVAILABLE)

24700-MB2-000

Unavailable

RUBBER, GEARSHIFT PEDAL This part replaces 24705-KE8-000.

24705-KN8-000

$4.13

RUBBER, GEARSHIFT PEDAL

24705-KN8-000

$4.13

ARM, GEARSHIFT (NOT AVAILABLE)

24710-MB2-000

Unavailable

PEDAL, GEARSHIFT

24720-MB2-000

Unavailable

COVER, DUST

24724-422-000

$6.68

SWITCH ASSY., RR. STOP

35350-KM4-405

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-MB2-000.

35350-KM4-405

Unavailable

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-MB2-000

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE) This part replaces 46500-MB2-000.

46500-MB2-010

Unavailable

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MB2-010

Unavailable

ARM, RR. BRAKE MIDDLE

46502-MB2-000

Unavailable

BOLT, TIE ROD (NOT AVAILABLE)

90065-MB2-000

Unavailable

BOLT, SOCKET (8MM)

90116-125-782

Unavailable

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$1.49

NUT, HEX. (6MM)

94002-06020-0S

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
