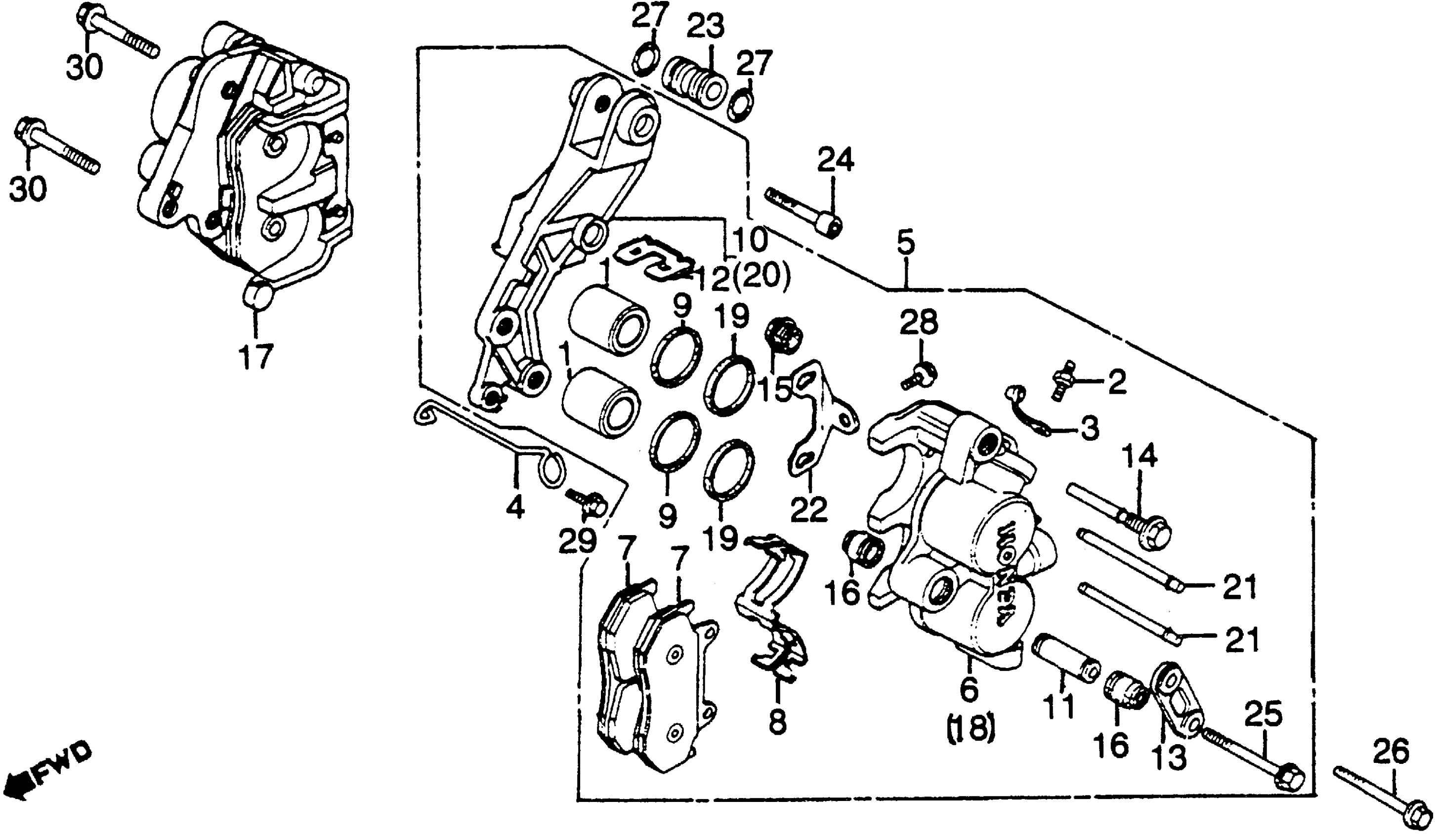

Honda VF750FA (83) V45 INTERCEPTOR, JPN, VIN# JH2RC150-DM000017 TO JH2RC150-DM008120 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET, FR.

06455-MJ1-405

Unavailable

NI

PAD SET, FR. This part replaces 451A0-MJ1-670.

06455-MJ1-405

Unavailable

1

PISTON

43107-MA7-006

$45.55

2

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

5

CALIPER, L. FR. This part replaces 45100-MB2-007.

45100-MB2-405

Unavailable

5

CALIPER, L. FR. This part replaces 45100-MB2-008.

45100-MB2-405

Unavailable

6

CALIPER, L.

45101-MB9-781

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-701.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MB1-702.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MJ1-672.

45105-MJ1-673

Unavailable

7

PAD, FR. (ASK) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-MJ1-673

Unavailable

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-MA7-006

$5.31

10

BRACKET, L. FR.

45110-MB2-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

RETAINER, BRACKET

45112-445-631

$8.98

13

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MB7-610

Unavailable

14

BOLT, PIN

45131-MA3-006

$17.59

15

BOOT B

45133-MA3-006

$5.46

16

BOOT, PIN

45133-166-016

$3.85

17

CALIPER ASSY., R. FR. (ASK) (NISSHIN) This part replaces 45200-MB2-007.

45200-MB2-405

Unavailable

17

CALIPER ASSY., R. FR. (ASK) (NISSHIN) This part replaces 45200-MB2-008.

45200-MB2-405

Unavailable

17

CALIPER ASSY., R. FR. (NISSHIN)

45200-MB2-405

Unavailable

18

CALIPER, R.

45201-MB4-006

Unavailable

19

SEAL, PISTON

45209-MA7-006

$6.61

20

BRACKET, R. FR. (NOT AVAILABLE)

45210-445-632

Unavailable

21

PIN, HANGER

45215-MA3-006

$12.77

22

PLATE

45217-MA3-006

$4.45

23

SLEEVE, FR. CALIPER BRACKET

51536-MB2-000

Unavailable

24

BOLT, SOCKET (10X40)

90131-MB2-000

Unavailable

25

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

26

BOLT, FLANGE (8X55)

90180-MA3-660

$4.72

27

O-RING (13.8X2.4) (NOK) This part replaces 91308-MC7-003.

91311-PH7-003

$2.28

27

O-RING (13.8X2.4) (NOK)

91311-PH7-003

$2.28

28

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

28

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

29

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

29

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

30

BOLT, FLANGE (10X40) This part replaces 95800-10040-07.

95801-10040-07

$1.79

30

BOLT, FLANGE (10X40)

95801-10040-07

$1.79
