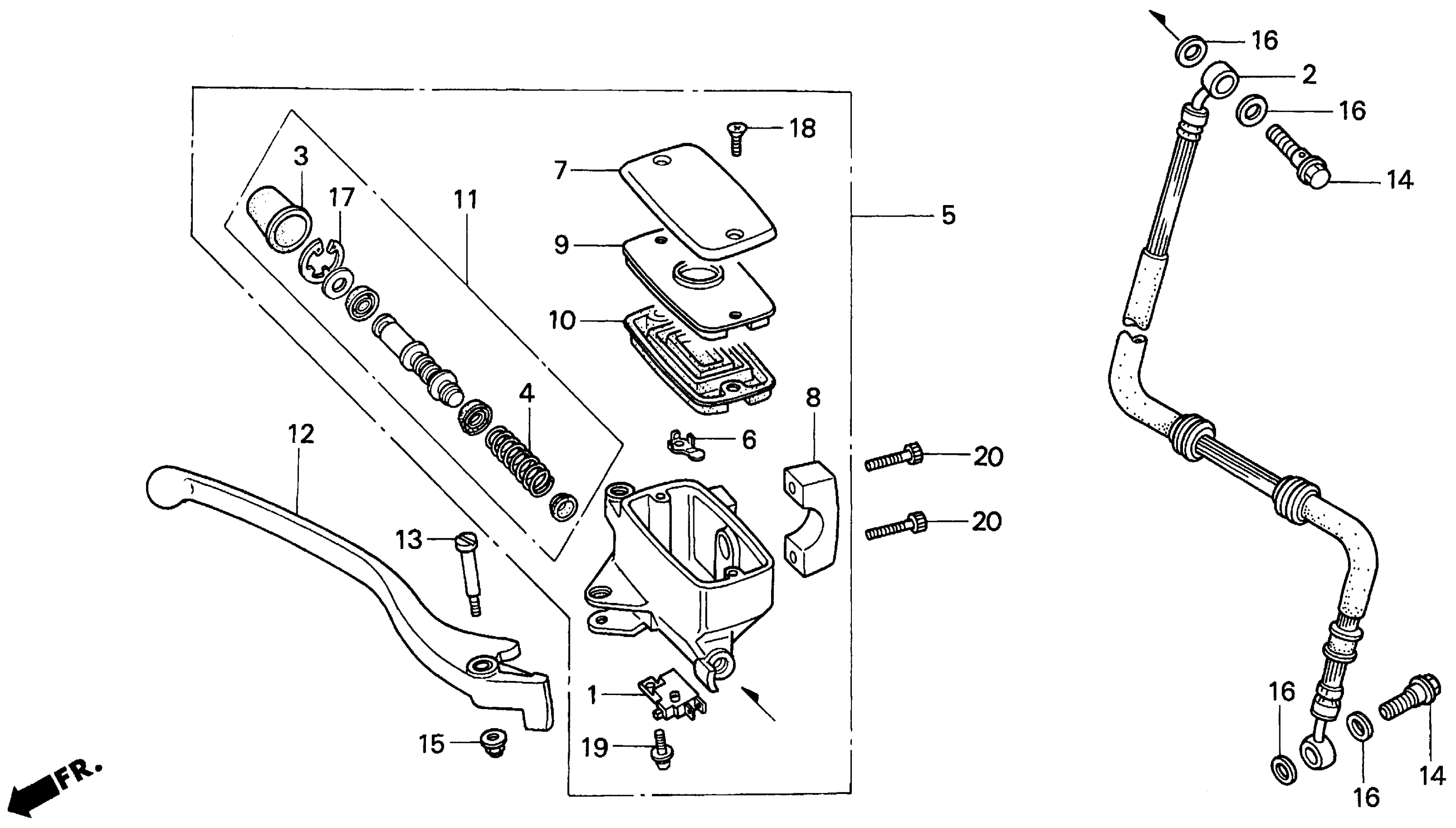

Honda VF750CDA (95) MAGNA DELUXE, JPN, VIN# JH2RC433-SM000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$22.13

2

HOSE, FR. BRAKE

45126-MZ5-771

Unavailable

3

BOOT

45504-410-003

$12.16

4

SPRING

45506-KA3-731

$5.21

5

MASTER CYLINDER SUB-ASSY., FR.

45510-MZ8-305

Unavailable

6

PROTECTOR

45512-MA6-006

$4.28

7

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$30.62

7

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$30.62

8

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

9

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

10

DIAPHRAGM

45520-MM5-006

$15.12

11

MASTER CYLINDER SET

45530-MN9-305

$50.74

12

LEVER, R. HANDLE (COO)

53175-MR1-305

$14.79

12

LEVER, R. HANDLE (COO) This part replaces 53175-MR1-671.

53175-MR1-305

$14.79

13

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

14

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.54

14

BOLT, OIL (10X22)

90145-MS9-612

$7.54

15

NUT, CAP (6MM)

90201-415-000

$2.05

16

WASHER, OIL BOLT

90545-300-000

$3.99

17

CIRCLIP

90651-MA5-671

$2.66

18

SCREW, FLAT (4X12)

93600-04012-1A

$1.49

19

SCREW-WASHER (4X12)

93893-04012-07

$1.49

19

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

20

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

20

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10
