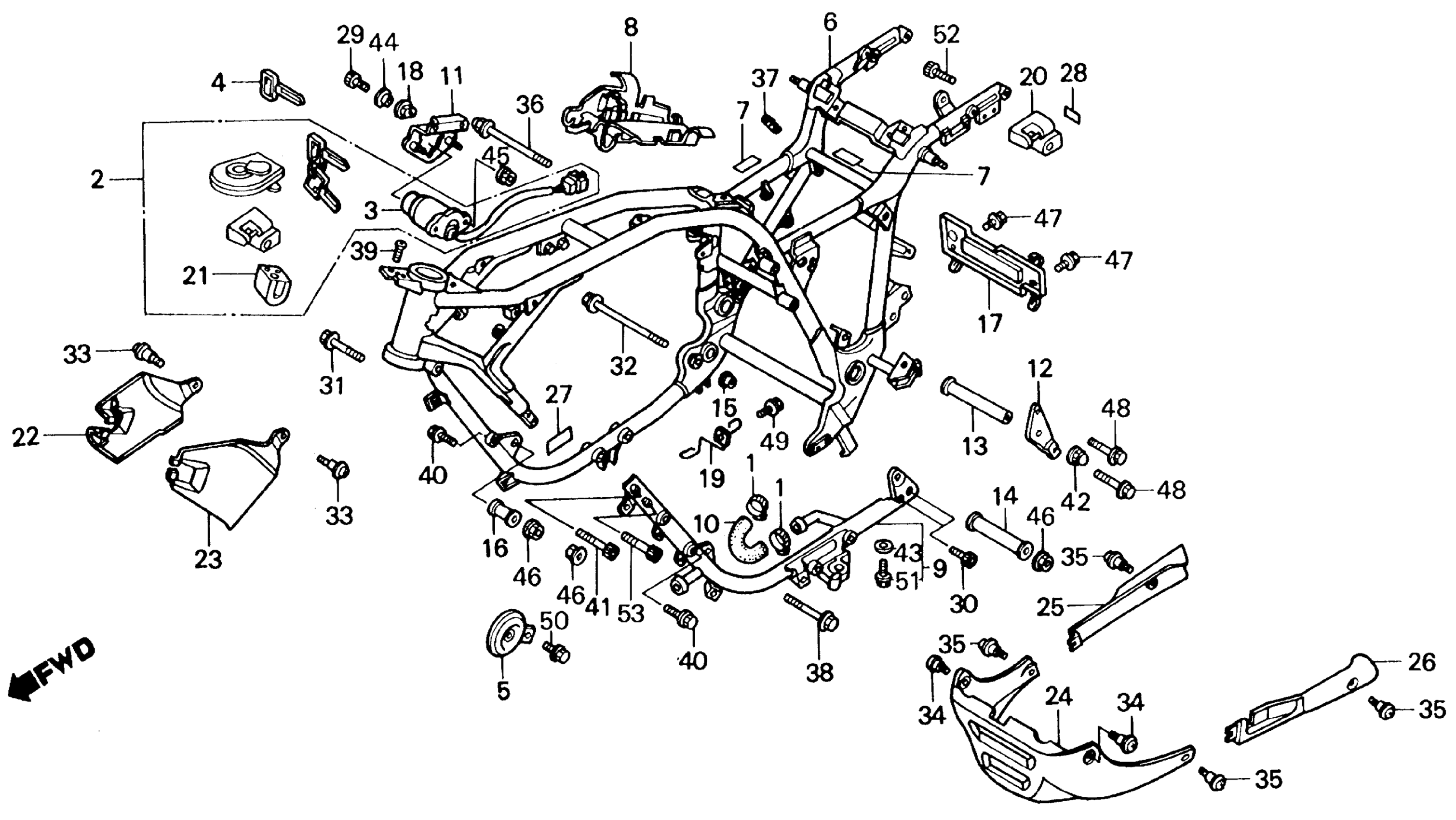

Honda VF750CAC (88) V45 MAGNA, USA, VIN# 1HFRC281-JA100001 FRAME Diagram

CLAMP, HOSE (24-32MM) This part replaces 19503-ML0-003.

19516-ML7-691

$14.40

CLAMP, HOSE (24-32)

19516-ML7-691

$14.40

LOCK SET (NOT AVAILABLE)

35010-MN0-680

Unavailable

SWITCH ASSY., COMBINATION This part replaces 35100-MN0-003.

35100-MN0-013

Unavailable

SWITCH ASSY., COMBINATION

35100-MN0-013

Unavailable

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

HORN (LOW) This part replaces 38120-MN0-008.

38120-MR5-661

Unavailable

HORN (LOW)

38120-MR5-661

Unavailable

FRAME

50100-MN2-710

Unavailable

FILM, FRAME PIPE (UPPER)

50159-KR3-300

$4.16

PLATE, FUEL TANK HEAT GUARD

50189-MN0-010

Unavailable

SUB-FRAME (NOT AVAILABLE)

50210-MN0-680

Unavailable

HOSE, WATER (LOWER)

50242-MB0-000

Unavailable

STAY, COMBINATION SWITCH

50245-MN0-000

Unavailable

PLATE, RR. ENGINE HANGER

50356-MN0-000

Unavailable

COLLAR, ENGINE HANGER (UPPER)

50361-MB2-000

Unavailable

COLLAR, L. RR. ENGINE HANGER

50362-MN0-000

Unavailable

COLLAR C, ENGINE HANGER

50363-MB0-000

Unavailable

COLLAR, R. FR. ENGINE HANGER

50363-MN0-000

Unavailable

PLATE A, HEAT GUARD

50428-MN0-680

Unavailable

RUBBER, TAILLIGHT SETTING

50451-GB6-920

$2.92

GUIDE, OVERFLOW TUBE

50528-MN0-000

Unavailable

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

LOCK, HANDLEBAR (HONDALOCK)

53600-086-007

$47.89

COVER, R. FR. SIDE (NOT AVAILABLE)

61402-MN0-000

Unavailable

COVER, L. FR. SIDE (NOT AVAILABLE)

61403-MN0-000

Unavailable

COWL (LOWER) *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

64230-MN2-000ZB

Unavailable

COWL (LOWER) *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64230-MN2-000ZC

Unavailable

COWL, R. (LOWER) *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

64231-MN2-000ZB

Unavailable

COWL, R. (LOWER) *NH1Z* (BLACK-Z) (NOT AVAILABLE)

64231-MN2-000ZC

Unavailable

COWL, L. (LOWER) *R107CU* (CANDY BOURGOGNE RED-U) (NOT AVAILABLE)

64232-MN2-000ZB

Unavailable

COWL, L. (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

64232-MN2-000ZC

Unavailable

LABEL, HIGH ALTITUDE

87139-463-670

$7.08

LABEL, HELMET HOLDER

87511-KR3-670

Unavailable

BOLT, FLANGE SOCKET (6X18)

90004-ML4-610

$2.90

BOLT, SOCKET (10X25)

90101-MB0-000

Unavailable

BOLT, FLANGE (10X75)

90102-MN0-000

$15.18

BOLT, FLANGE (10X355) (NOT AVAILABLE)

90104-MB4-000

Unavailable

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

BOLT, FAIRING (6MM)

90107-KR0-000

$3.86

SCREW, PAN (5X13)

90108-MN0-000

$1.70

BOLT, FLANGE (10X210)

90110-MN0-000

Unavailable

RUBBER, PROTECTOR (TOKAI) (NOT AVAILABLE)

90126-MN0-000

Unavailable

BOLT, SPECIAL FLANGE (10X50)

90158-438-000

$7.63

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

BOLT, SPECIAL FLANGE (8X62)

90165-MA3-660

Unavailable

BOLT, SOCKET (10X45)

90181-MN0-000

$4.81

NUT, CAP (10MM) This part replaces 90210-438-000.

90201-HA0-000

$6.45

WASHER, SEALING (6MM)

90441-028-010

$2.92

WASHER, FR. COVER SETTING

90501-124-000

$3.74

NUT, FLANGE (6MM)

94050-06080

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (8X16) This part replaces 95700-08016-02.

95701-08016-02

$1.80

BOLT, FLANGE (8X16)

95701-08016-02

$1.80

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (8X10)

95701-08010-07

$1.49

BOLT, FLANGE (6X10) This part replaces 96000-06010-07.

96001-06010-07

$1.62

BOLT, FLANGE (6X10)

96001-06010-07

$1.62

BOLT, SOCKET (6X10)

96600-06010-07

$1.49

BOLT, SOCKET (6X10) This part replaces 96700-06010-07.

96600-06010-07

$1.49

BOLT, SOCKET (10X40)

96700-10040-17

Unavailable
