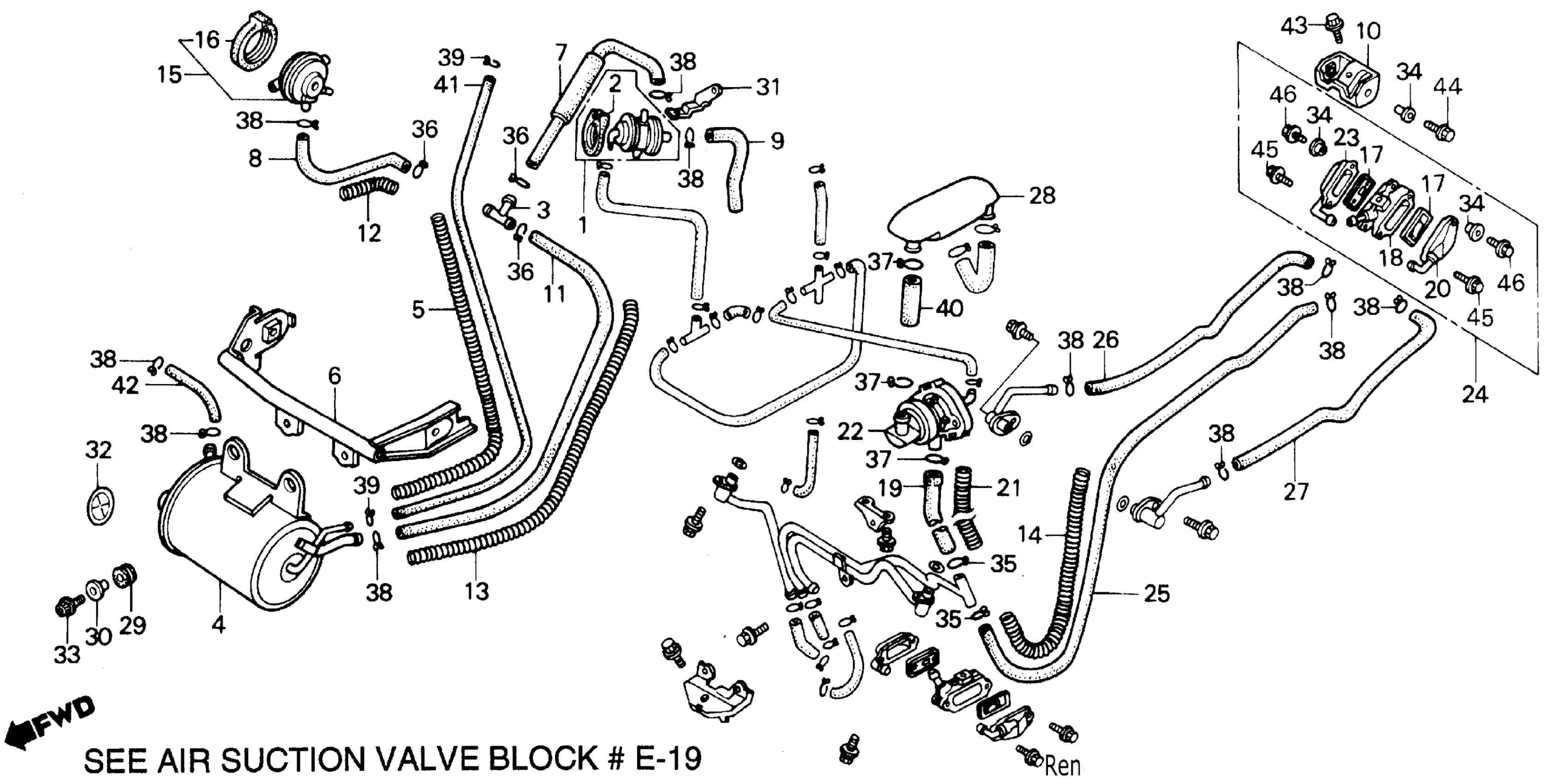

Honda VF750CAC (88) V45 MAGNA, USA, VIN# 1HFRC281-JA100001 CANISTER (AC) Diagram

#

Description
Price

1

VALVE ASSY., AIR VENT CONTROL

17300-MN0-681

Unavailable

2

RUBBER, SETTING

17305-MJ4-771

$12.46

3

JOINT, BREATHER (THREE-WAY)

17373-399-760

Unavailable

4

CANISTER (HITACHI)

17410-MN0-681

Unavailable

5

SPRING, CHARGE TUBE COVER

17414-MN0-680

Unavailable

6

BRACKET, CANISTER (NOT AVAILABLE)

17415-MN0-680

Unavailable

7

TUBE, AIR VENT CONTROL VALVE JOINT (THREE-WAY)

17416-MN0-680

Unavailable

8

TUBE, PURGE CONTROL VALVE JOINT (THREE-WAY)

17418-MN0-680

Unavailable

9

TUBE, AIR VENT CONTROL VALVE

17419-MN0-680

Unavailable

10

STAY, RR. AIR SUCTION VALVE SETTING

17420-MN0-680

Unavailable

11

TUBE, CANISTER JOINT (THREE-WAY)

17421-MN0-680

Unavailable

12

SPRING A, PURGE TUBE COVER

17422-MN0-680

Unavailable

13

SPRING B, PURGE TUBE COVER

17423-MN0-680

Unavailable

14

SPRING, RR. AIR TUBE

17424-MN0-680

Unavailable

15

VALVE, PURGE CONTROL

17440-MN0-680

Unavailable

16

RUBBER, PURGE CONTROL VALVE SETTING

17451-ME5-760

$12.90

17

VALVE, REED This part replaces 18601-MG9-005.

18601-MJ1-791

$22.10

18

BODY, AIR SUCTION VALVE

18610-MN0-680

Unavailable

19

TUBE, AIR INJECTION CONTROL VALVE

18613-MN0-680

Unavailable

20

COVER, AIR SUCTION VALVE (A)

18620-MN0-680

Unavailable

21

WIRE, TUBE GUARD

18627-MN0-680

Unavailable

22

VALVE ASSY., AIR INJECTION CONTROL

18650-MK3-783

Unavailable

23

COVER C, AIR SUCTION VALVE

18660-MN0-680

Unavailable

24

VALVE ASSY., RR. AIR SUCTION

18700-MN0-680

Unavailable

25

TUBE A, RR. AIR

18741-MN0-680

Unavailable

26

TUBE B, RR. AIR

18742-MN0-680

Unavailable

27

TUBE, RR. AIR (C)

18743-MN0-680

Unavailable

28

TANK, AIR IN. CONTROL CHAMBER

18750-MN0-680

Unavailable

29

RUBBER, CANISTER SETTING

19051-MB4-880

$3.13

30

COLLAR, CANISTER MOUNTING

19052-MB4-880

$3.69

31

STAY, AIR SUCTION VALVE SETTING

50246-MN0-680

Unavailable

32

LABEL, JACK WARNING (UPPER)

87200-MB1-870

Unavailable

33

BOLT, FLANGE SOCKET (6X25)

90097-MB4-880

Unavailable

34

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

35

CLIP, TUBE (B16)

90643-MK3-781

$2.25

36

CLIP B, TUBE (12.5MM)

90651-MK3-780

$1.54

37

CLIP, TUBE (B20)

90653-MK3-780

$2.00

38

CLIP, TUBE (B14)

90654-MK3-780

$2.74

39

CLIP, TUBE (B8)

95002-02080

$1.80

40

BULK HOSE, VACUUM (12X1000) (12X45)

95005-12001-10M

$61.17

41

BULK HOSE, VACUUM (4.5X1000) (4.5X610)

95005-45001-20M

$34.14

42

BULK HOSE, VACUUM (8X1000) (8X100)

95005-80001-20M

$23.91

43

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

43

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

44

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

44

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

45

BOLT, FLANGE (6X20)

96001-06020-00

$1.49

46

BOLT, FLANGE (6X30)

96001-06030-00

$1.49
