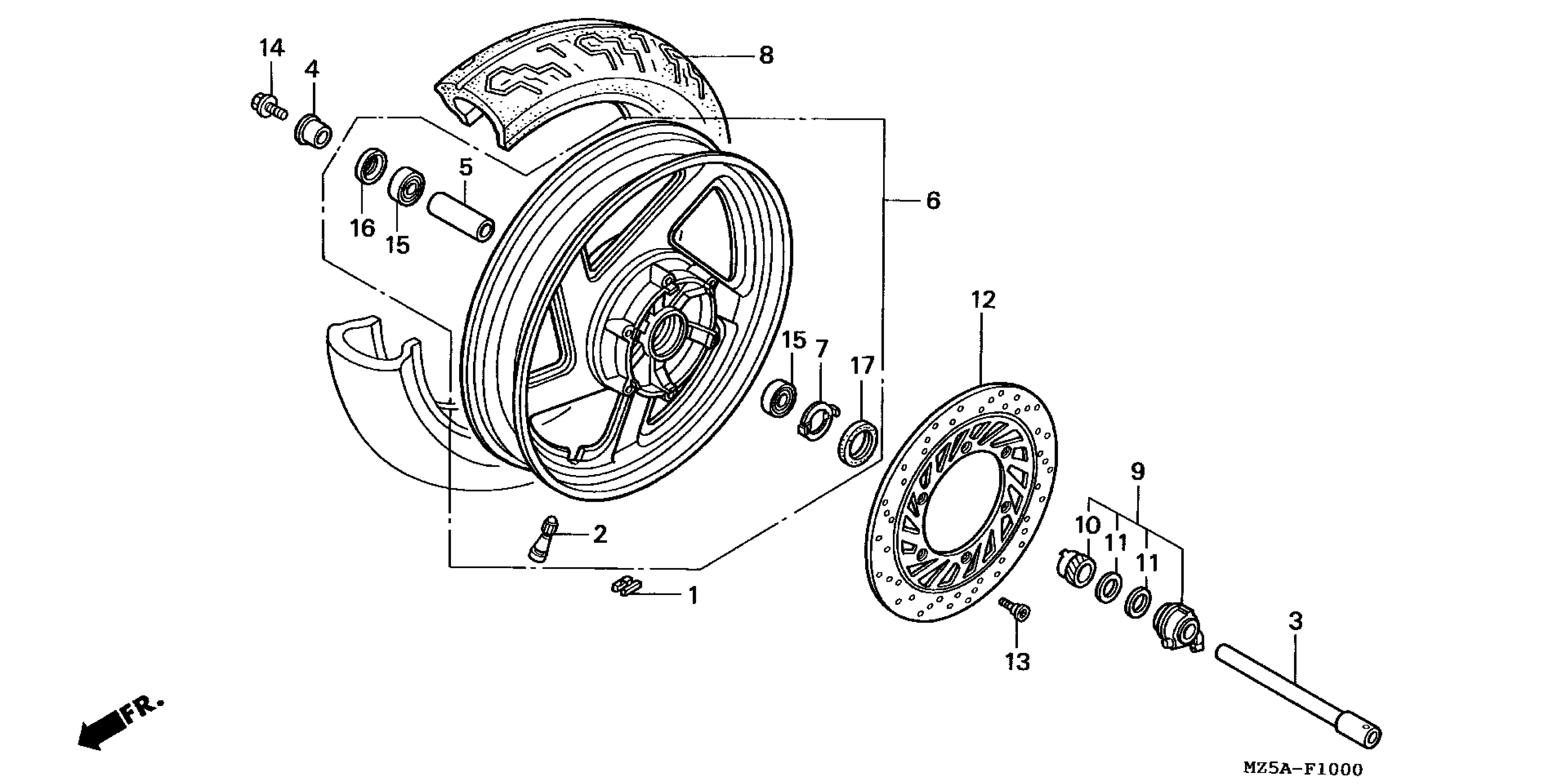

Honda VF750CAC (02) MAGNA, JPN, VIN# JH2RC431-2M800001 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

1

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

2

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

3

AXLE, FR. WHEEL

44301-MZ5-000

Unavailable

4

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$19.15

5

COLLAR, FR. WHEEL DISTANCE

44620-MZ5-E00

Unavailable

6

WHEEL SUB-ASSY., FR. This part replaces 44650-MZ5-315.

44650-MZ5-335

Unavailable

6

WHEEL SUB-ASSY., FR. This part replaces 44650-MZ5-325.

44650-MZ5-335

Unavailable

6

WHEEL SUB-ASSY., FR.

44650-MZ5-335

Unavailable

7

RETAINER, GEAR BOX

44680-ML7-000

$5.08

8

TIRE, FR. (120/80-17) (61V) (DUNLOP) This part replaces 44711-MZ5-014.

44711-MZ5-024

Unavailable

8

TIRE, FR. (120/80-17) (61V) (DUNLOP)

44711-MZ5-024

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-ML7-691

Unavailable

10

GEAR, SPEEDOMETER

44806-ML7-691

Unavailable

11

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

12

DISK, FR. BRAKE

45251-MS9-750

Unavailable

13

BOLT, DISK (8X24)

90105-MV9-003

$6.21

14

BOLT, FR. AXLE

90305-ML7-000

$10.50

15

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

16

OIL SEAL (28X47.2X7) (ARAI) This part replaces 91252-MC4-003.

91252-MC4-013

$6.98

16

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

17

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
