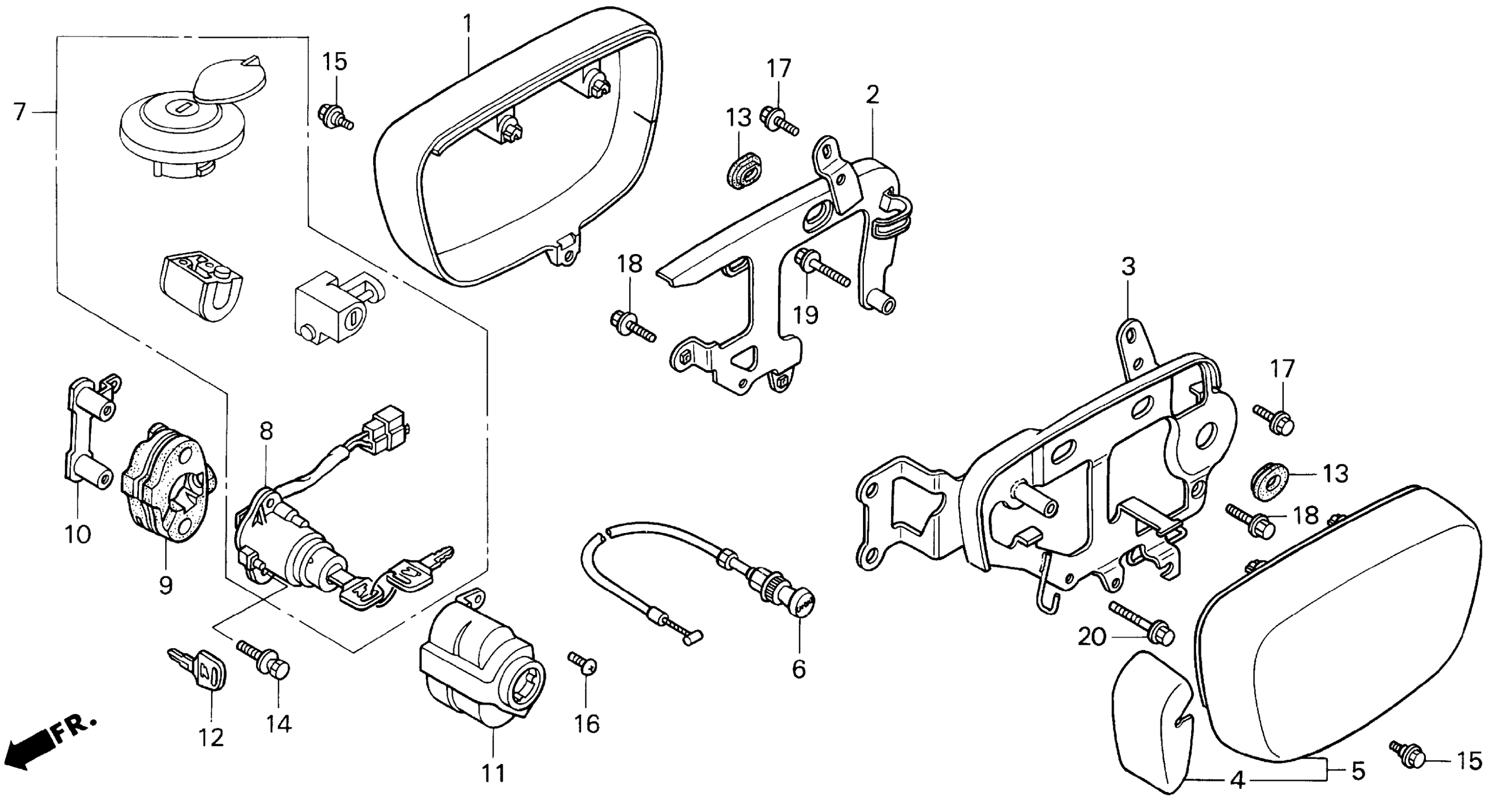

Honda VF750CA (96) MAGNA 750C, JPN, VIN# JH2RC430-TM200001 CARBURETOR SIDE COVER Diagram

#

Description
Price

1

COVER, CARBURETOR SIDE

17255-MZ5-000

Unavailable

2

BASE, R. CARBURETOR SIDE COVER

17256-MZ5-000

Unavailable

3

BASE, L. CARBURETOR SIDE COVER

17266-MZ5-000

Unavailable

4

PROTECTOR, CARBURETOR SIDE COVER

17267-MZ5-300

Unavailable

5

COVER SET, L. CARBURETOR SIDE

17268-MZ5-000

Unavailable

6

CABLE, CHOKE

17950-MZ5-000

Unavailable

7

LOCK SET This part replaces 35010-MZ5-910.

35010-MZ5-A00

Unavailable

7

LOCK SET

35010-MZ5-A00

Unavailable

8

SWITCH ASSY., COMBINATION

35100-MZ5-A01

$71.81

8

SWITCH ASSY., COMBINATION This part replaces 35100-MZ5-007.

35100-MZ5-A01

$71.81

9

BASE, COMBINATION SWITCH

35102-MR1-000

$13.64

10

COLLAR, COMBINATION SWITCH

35103-MR1-000

Unavailable

11

COVER, COMBINATION SWITCH

35110-MZ5-000

$20.21

12

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$9.74

12

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$9.74

13

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

14

BOLT, BREAK OFF

90107-MR1-000

$8.63

15

BOLT, FLANGE (6MM)

90113-KW3-000

Unavailable

16

SCREW, RR. COVER

90114-GB6-920

$1.50

17

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

19

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
