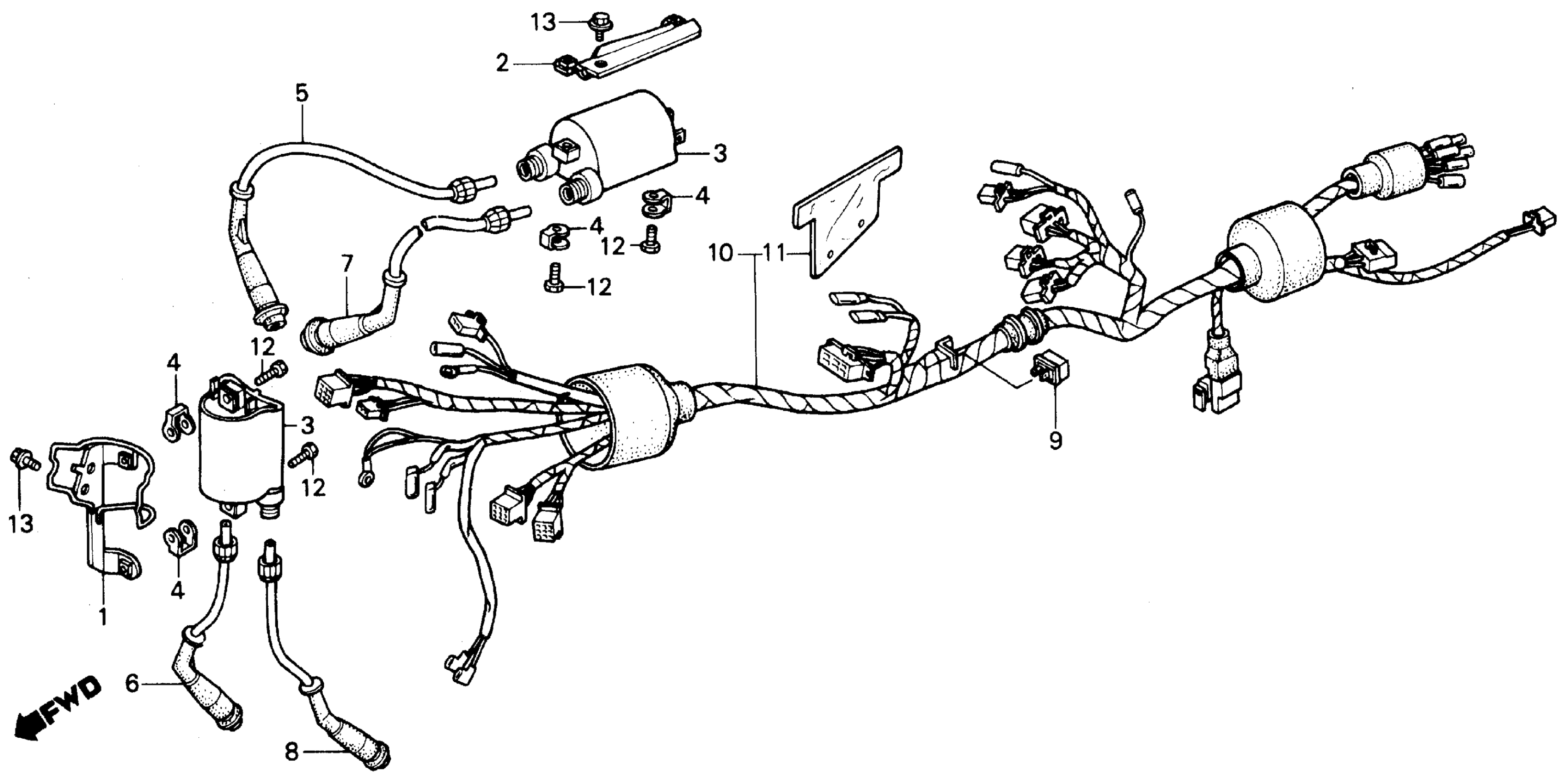

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 WIRE HARNESS Diagram

BRACKET, FR. IGNITION COIL

30506-MN0-000

Unavailable

BRACKET, RR. IGNITION COIL

30507-MN0-000

Unavailable

COIL, IGNITION This part replaces 30510-KT7-013.

30510-KT7-023

$142.15

COIL, IGNITION

30510-KT7-023

$142.15

SPACER, IGNITION COIL

30520-ML7-000

$3.77

CAP ASSY. 1, IGNITION (NOT AVAILABLE)

30751-MN0-000

Unavailable

CAP ASSY. 2, IGNITION

30752-MN0-000

Unavailable

CAP ASSY. 3, IGNITION (NOT AVAILABLE)

30753-MN0-000

Unavailable

CAP ASSY. 4, IGNITION

30754-MN0-000

Unavailable

RECTIFIER ASSY., SILICON (SHINDENGEN) This part replaces 31700-124-003.

31700-124-008

$29.71

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$29.71

WIRE HARNESS (NOT AVAILABLE)

32100-MN0-000

Unavailable

SHEET, CONNECTOR (NOT AVAILABLE)

32222-MN0-000

Unavailable

BOLT, HEX. (6X22)

92201-06022-4J

Unavailable

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
