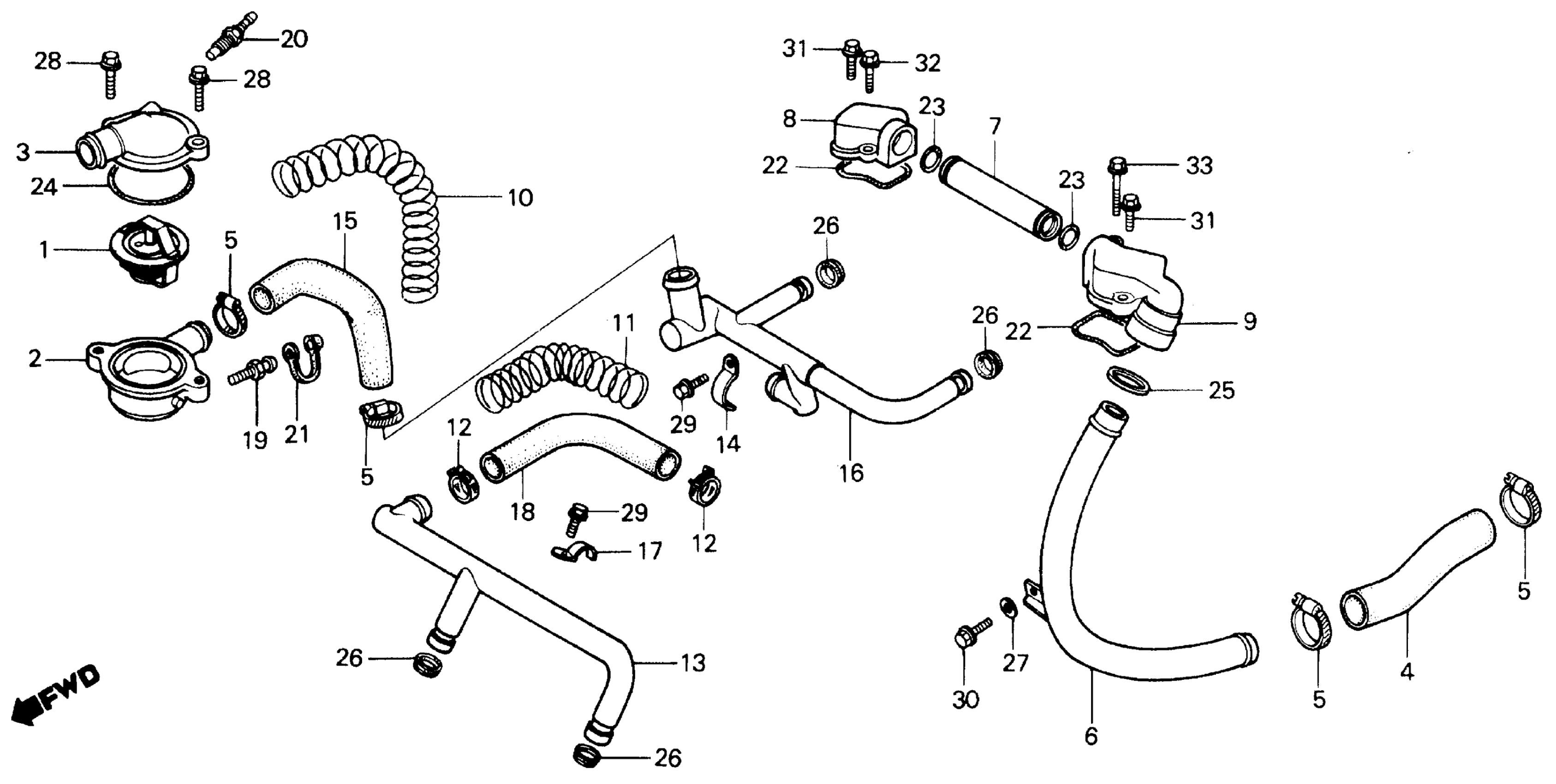

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 WATER PIPE Diagram

#

Description
Price

1

THERMOSTAT

19300-MB0-003

$52.78

2

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MN2-670

Unavailable

3

COVER, THERMOSTAT

19315-MB0-770

Unavailable

4

HOSE, CONNECTING (NOT AVAILABLE)

19502-MB4-000

Unavailable

5

CLAMP, HOSE (24-32MM) This part replaces 19503-ML0-003.

19516-ML7-691

$14.40

5

CLAMP, HOSE (24-32)

19516-ML7-691

$14.40

6

PIPE, WATER OUTLET CONNECTING

19504-MB0-000

Unavailable

7

PIPE, CONNECTING

19507-MB0-000

Unavailable

8

CAP A, CONNECTING PIPE

19508-MN0-000

Unavailable

9

CAP B, CONNECTING PIPE

19509-MN0-000

Unavailable

10

CABLE A, GUARD (NOT AVAILABLE)

19511-MB4-680

Unavailable

11

GUARD B, CABLE

19512-MN0-000

Unavailable

12

CLIP B, HOSE

19514-ME9-003

$5.64

13

PIPE A, WATER

19520-MN0-000

Unavailable

14

CLAMP A, WATER PIPE (NOT AVAILABLE)

19524-MB0-000

Unavailable

15

HOSE, WATER (NOT AVAILABLE)

19526-MN0-000

Unavailable

16

PIPE B, WATER (NOT AVAILABLE)

19530-MN0-000

Unavailable

17

CLAMP B, WATER PIPE (NOT AVAILABLE)

19534-MB2-000

Unavailable

18

HOSE B, WATER

19536-MB0-000

Unavailable

19

SCREW, BLEEDER

43352-MG9-006

$5.44

20

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-PC1-004

$81.34

21

CAP, BLEEDER

43353-461-771

$5.05

22

GASKET, CONNECTING CAP

91301-MB0-000

$4.10

23

O-RING (18.3X2.3) (ARAI)

91301-147-023

$2.20

24

O-RING (54X2)

91307-MB0-003

$3.23

25

SEAL, WATER PIPE

91315-MB0-013

$2.70

26

SEAL, WATER PIPE (ARAI)

91315-ME9-003

$4.53

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

28

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

29

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

30

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

30

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

31

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

32

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

33

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
