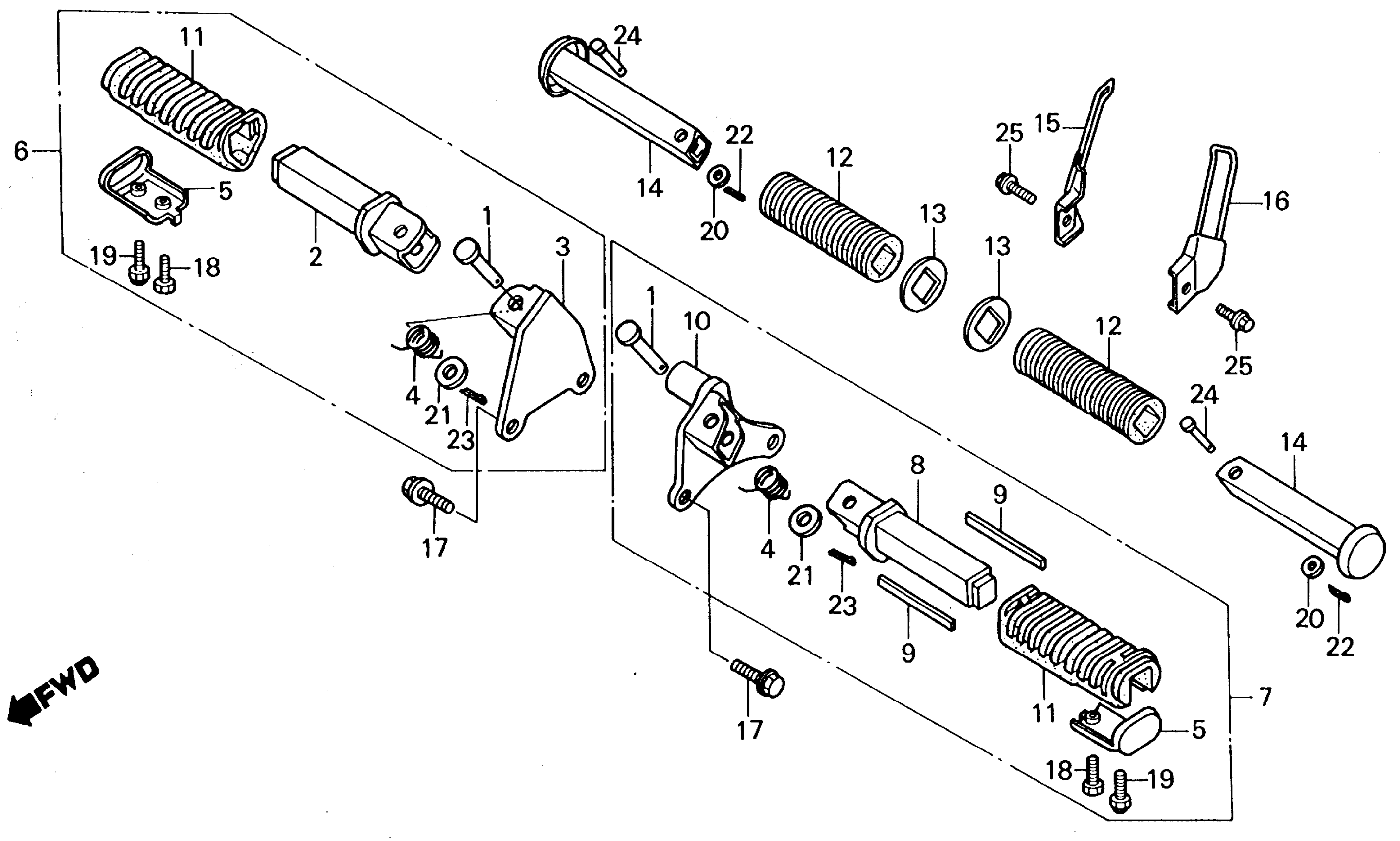

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

1

PIN, STEP BAR JOINT

50603-033-010

$3.30

2

BAR, R. STEP

50612-MN0-000

$33.26

2

BAR, R. STEP

50612-MR1-000

$31.36

3

BRACKET, R. STEP (NOT AVAILABLE)

50615-MN0-000

Unavailable

4

SPRING, STEP RETURN

50617-MB1-700

$5.80

5

STOPPER, STEP RUBBER

50619-MN0-000

$17.37

6

STEP ASSY., R. MAIN (NOT AVAILABLE)

50630-MN0-000

Unavailable

7

STEP ASSY., L. MAIN (NOT AVAILABLE)

50640-MN0-000

Unavailable

8

BAR, L. STEP

50642-MN0-000

Unavailable

9

WEIGHT, L. STEP

50643-MN0-000

Unavailable

10

BRACKET, L. STEP

50645-MN0-000

Unavailable

11

RUBBER, MAIN STEP

50661-MN0-000

$11.86

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

12

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

13

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

14

BAR, PILLION STEP (COO) This part replaces 50715-MN0-000.

50715-MFR-305

$22.52

15

GUARD, R. PILLION STEP (NOT AVAILABLE)

50716-MN0-000

Unavailable

16

GUARD, L. PILLION STEP

50717-MN0-000

Unavailable

17

BOLT, FLANGE (8X16)

90107-MN0-000

Unavailable

18

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92000-06012-0A.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92100-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

18

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

19

BOLT, CAP (6X12) This part replaces 92500-06012-0A.

92501-06012-0A

$2.41

19

BOLT, CAP (6X12)

92501-06012-0A

$2.41

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

PIN, COTTER (1.6X10)

94201-16100

$1.49

23

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

23

PIN, COTTER (1.6X25)

94201-16250

$1.49

24

PIN A, PILLION STEP

95015-81000

$2.21

25

BOLT, FLANGE (8X14)

95701-08014-00

$1.49
