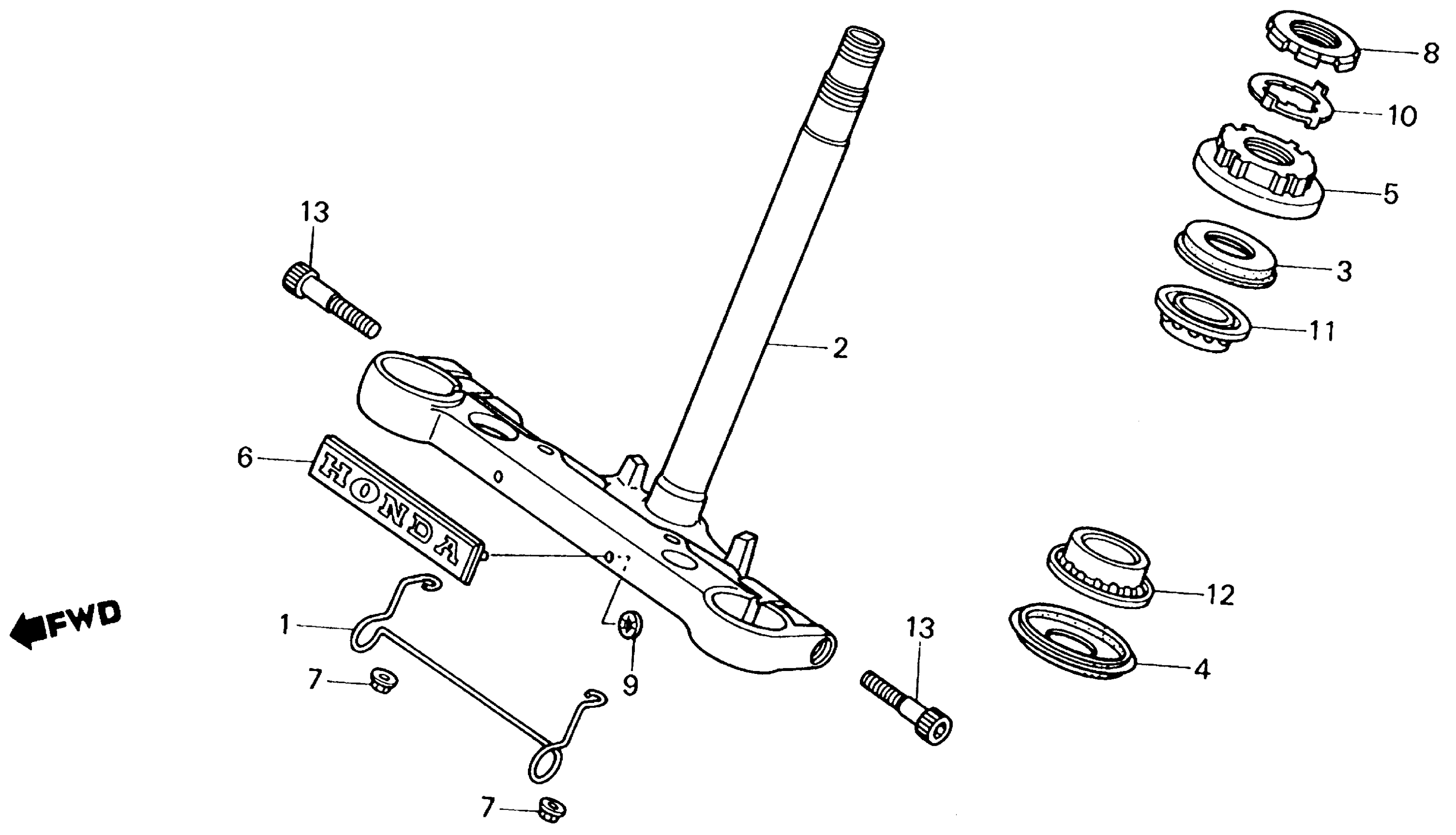

Honda VF750CA (88) V45 MAGNA, USA, VIN# 1HFRC280-JA100001 STEERING STEM Diagram

#

Description

Price

1

CLAMP, BRAKE HOSE

45127-MN0-000

Unavailable

2

STEM, STEERING (NOT AVAILABLE)

53200-MN2-670

Unavailable

3

DUST SEAL, STEERING HEAD

53213-MB4-771

$12.13

4

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

5

THREAD, STEERING HEAD (UPPER)

53220-422-000

$32.73

6

EMBLEM, BRIDGE (LOWER)

61405-MN0-000

Unavailable

7

NUT, FLANGE (6MM) This part replaces 90301-428-900.

94050-06070

$1.49

7

NUT, FLANGE (6MM)

94050-06070

$1.49

8

THREAD, STEERING HEAD TOP (B)

90302-425-830

$21.73

9

NUT, SPEED (3MM)

90313-567-000

$3.97

10

WASHER, LOCK

90506-425-830

$7.05

11

BEARING, HEAD PIPE (UPPER)

91015-KT8-005

$36.57

12

BEARING, HEAD PIPE (LOWER)

91016-KT8-005

$36.57

13

BOLT, SOCKET (10X40)

96700-10040-17

Unavailable
